Siemens Modbus TCP Meter 7KM PAC2200 5A 6M 7KM22002EA301EA1
SIE 7KM22002EA301EA1
4001869538532

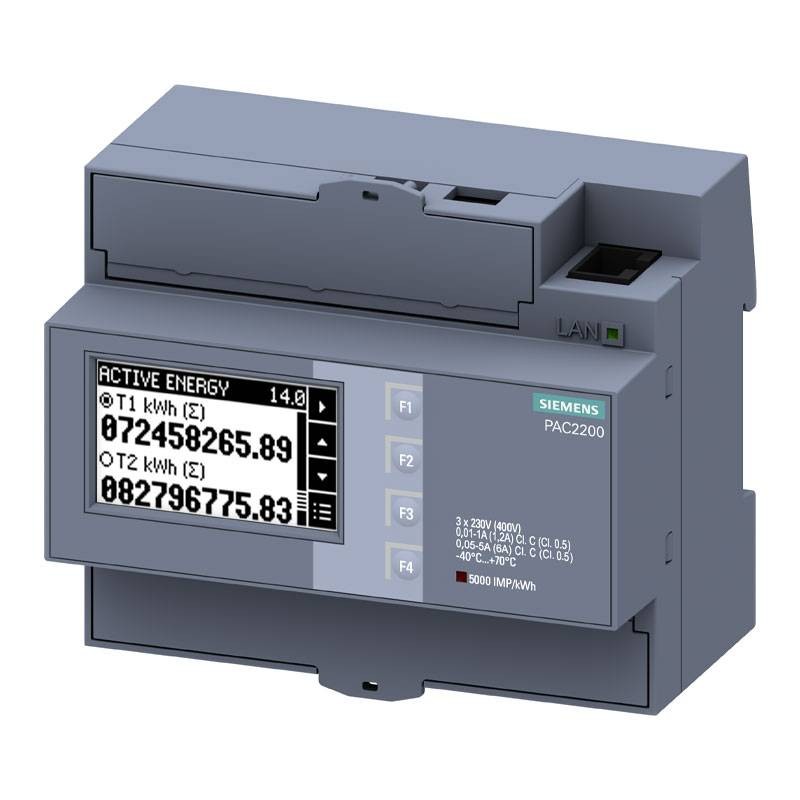

Siemens Sentron 7KM PAC2200 Meter is a three-phase measurement device for monitoring active, reactive and apparent energy. Compatible with the Modbus TCP protocol, it is ideal for integration into energy management systems. It mounts on a DIN rail and is self-powered, ensuring quick and easy installation, with the following features:
-
Rated current: 5A
-
Compatibility: Modbus TCP for integration into automation systems
-
Display: digital LCD for clear and intuitive reading
-
Mounting: DIN rail with a width of 6 modules
-
Degree of protection: IP40
-
Self-powered: For efficient operation without external power supply
-
Energy measurement: Active, reactive and apparent for comprehensive monitoring
€378.07
Items Available: 46
: 14
Siemens MODBUS TCP Meter: Energy Monitoring and Smart Connectivity
Comprehensive energy monitoring
The SENTRON 7KM PAC2200 enables accurate measurement of active, reactive and apparent energy, providing detailed data for consumption optimization and energy efficiency management.
Modbus TCP Connectivity
With support for the Modbus TCP protocol, the device easily integrates into automation and monitoring systems, enabling data transmission to energy management platforms.
Siemens Meter: Clear LCD Screen and Easy Installation
Clear and intuitive LCD display
The device features a digital LCD display that provides immediate visualization of measured parameters, enabling quick and effective control of energy information.
Easy installation on DIN rail
Designed for convenient mounting, the SENTRON 7KM PAC2200 installs on DIN rail with a width of 6 modules, making it compatible with most industrial and civil switchboards.
Technical Specifications Modbus TCP Multimeter
| Feature | Value |
|---|---|
| Signal type | S0 |
| Electric meter execution | Electronic |
| Pulse output execution | Electrical |
| Measurable line voltage | Between (PE)N and L: AC max 230 V Between line conductors: AC max 400 V |
| Rated current | 5 A |
| Operating frequency | 45-65 Hz |
| Reverse blocking | Yes |
| Blocking code | Yes |
| Degree of protection | IP40 |
| Self-powered | Yes |
| Display execution | LCD |
| Execution of display | Digital |
| Supported protocol | Modbus TCP |
| Number of width modular units | 6 |
| Type of mounting | DIN-rail mounting unit |
There are no reviews
Data sheet
- Type: Meters
- Modules: 6
- Amps: 5A
