Fait DVBT2-DVB-FO COMBO TV/SAT/FIBER signal meter 4100001
FIT 4100001
8054045113319

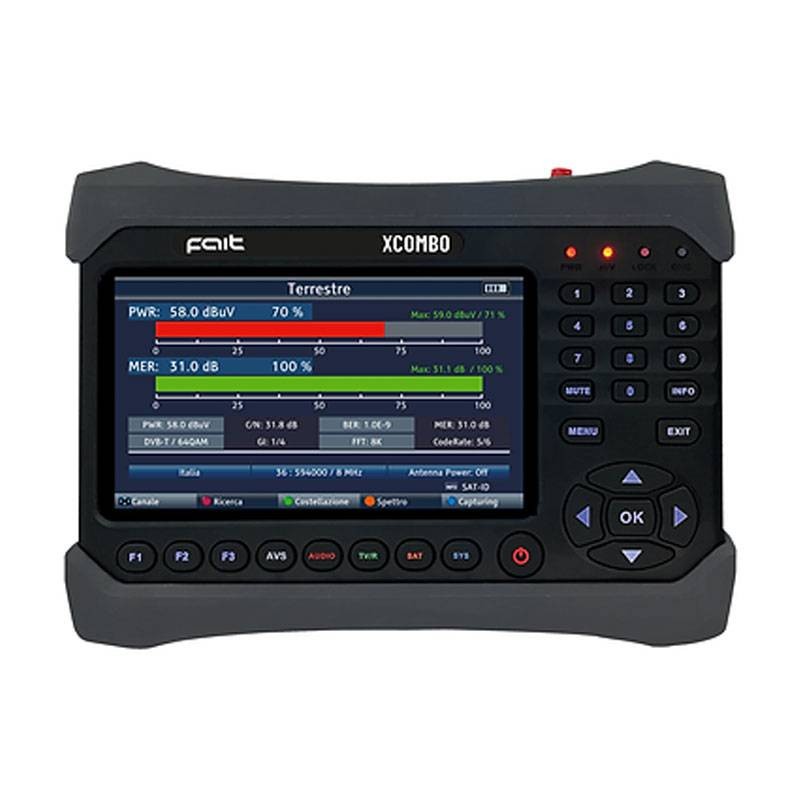

Fait XCOMBO signal meter is a professional tool for installation, configuration and testing of TV/SAT/FIBRA systems, compatible with the latest DVB-T/T2, DVB-S/S2 and HEVC Main 10 standards. Equipped with an HD display, backlit keypad and rugged case with rubber protection, it offers comprehensive measurements, spectrum analysis and video demodulation to ensure maximum accuracy in every operation, with the following features:
-
Compatible with: DVB-T/T2, DVB-S/S2, HEVC Main 10
-
Perfect for professional testing and setup
-
Comprehensive tool for every type of measurement
-
HD display and backlit keypad
-
Maximum visibility even in low light conditions
-
Power supply for LNBs, antennas and switchboards
-
Supports 13V/18V, SCR, dCSS, 5V, 12V/24V
-
Rugged design with rubber protection
-
Resistant to shock and heavy use
€621.58
Items Available: 7
Fait Meter: Advanced Testing for Digital, Satellite and Fiber TV
Precise Measurements for Digital and Satellite TV
Designed to ensure accurate testing of terrestrial and satellite TV systems, with support for DVB-T2 HEVC Main 10 and DVB-S2 dCSS. Advanced features include video demodulation, constellation analysis and spectrum display, essential for optimizing signals and resolving any reception issues.
Fiber Optic Compatibility
In addition to terrestrial and satellite TV, the device is capable of performing tests and measurements on fiber optic systems, thanks to the -70/+3 dBm optical power range and SC/FC/ST connectors, providing a wide versatility of use.
Fait Meter: HD Display, Backlit Controls and Versatility
HD Display and Backlit Keypad for Optimal Use
The HD monitor ensures a clear display of data, while the backlit keyboard allows operation even in low-light conditions. Rugged case with rubber protection offers high shock resistance, ideal for use in the field.
Versatile Power Supply for LNBs, Antennas and Switchboards
The device provides direct power to LNBs (13V/18V, 0/22KhZ, SCR, dCSS up to 400mA) and antennas/ switchboards with 5V, 12V/24V (max 100mA), facilitating setup operations without the need for external power supplies.
Accessories Included
The Fait XCOMBO meter comes with a carrying bag, power supply and car charger, providing convenience and mobility for professionals in the field.
Technical Specifications Fait Signal Meter
| Feature | Value |
|---|---|
| Signal compatibility | DVB-T/T2, DVB-S/S2, HEVC Main 10 |
| SAT input frequency range | 950 - 2150 MHz |
| SAT input signal level range | 35 - 100 dBuV |
| SAT demodulation | QPSK, 8PSK, 16APSK |
| Symbol Rate | 2-45 Msymb/s SCPC/MCPC |
| Terrestrial TV input frequency range | 48 - 862 MHz |
| Terrestrial TV input signal level range | 35 - 100 dBuV |
| Digital TV demodulation | QPSK, 16QAM, 64QAM, 256QAM |
| Optical power range | -70/+3 dBm |
| Connector types | SC/FC/ST |
| LNB power supply | 13V/18V, 0/22KhZ, SCR, dCSS - 400 mA |
| Antenna and switchboard power supply | 5V, 12V/24V - max 100mA |
| Display | HD |
| Keyboard | Backlit |
| Protection | Plastic case with rubber protection |
There are no reviews
Data sheet
- Type: Signal meters
