DVB-T/T2 FTE Field Meter LCD Display 100/240 VAC M-345
FTE M-345
8055271137223
Maximal compact FTE field meter for measuring DVB-T/T2 terrestrial, DVB-S/S2/S2X satellite signals with MPEG2, H264, H265 or HEVC Main10 bit video encoding and built-in OPM consisting of:
- CD-ROM with manual
- AV cable
- Car charger
- Power supply 12 V - 1.5 A
- Carrying bag
- DC 12V power cord
- BNC connector
- 2 RF connectors
Useful for TV/SAT signal measurements allowing analysis of DVB-T/T2, DVB-S/S2/S2X and DVB-C signals with maximum H.265/HEVC encoding @10bit. Also allows measurement on fiber optics, media file playback, and pointing of analog cameras.
€557.93
Items Available: 1
Satellite Input:
- Working Frequency: 950/2150 MHz
- Signal level: 30/105 dBµV
- Power supply: 13/18 - 0/22, max 400 LNB - V - KHz, mA
- Standard: DVB-S/S2/S2X
- Modulation: QPSK, 8PSK, 16APSK
Terrestrial Input:
- Frequency: 48/862 MHz
- Signal level: 30/105 dBµV
- Antenna power supply: 5-12-24 max 100mA
- Standard: DVB-T / T2 / C
- Modulation: QPSK, 16QAM, 64QAM, 256QAM
Optical Input:
- Connector Types: FC-SC-ST
- Measurable wavelength: 850/1270/1300/1310/1330/1490/1550/1625 nm
- Measurable optical power range: -70/+3 dBm
Analog A/V Inputs-Outputs:
- Connector type: 2 x Jack 3.5 mm
- Video format: CVBS
- Audio Format: Stereo, mono, right/left

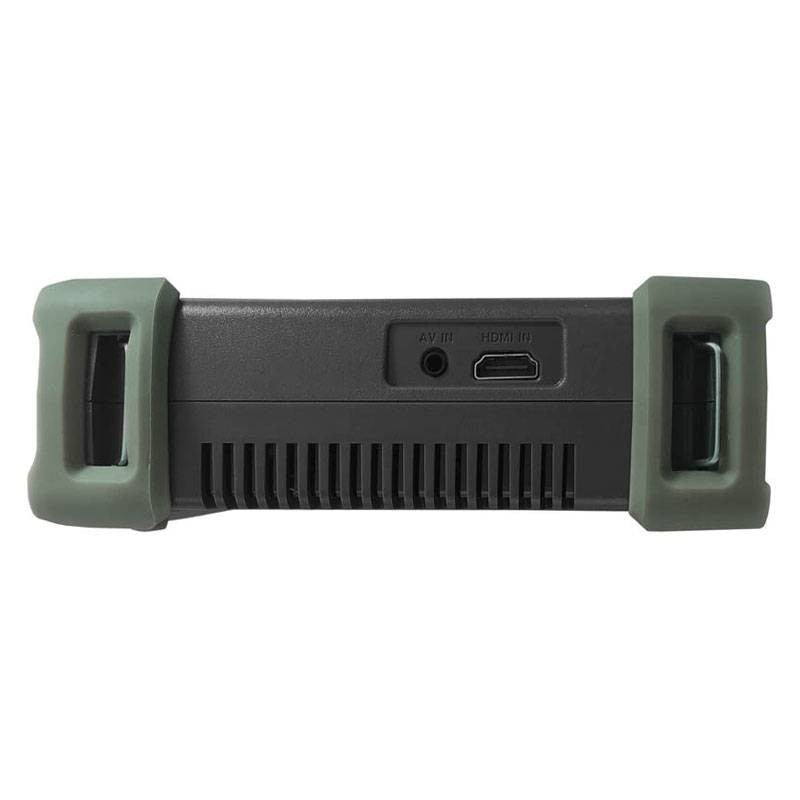

Digital A/V Inputs-Outputs:
- Connector Type: 2 x HDMI V 1.3A
Audio/Video Processing:
- Video decoding: MPEG-1, MPEG-2 MP@HL, MPEG-4 ASP@L5 HD resolution H.264 MP&L4, HEVC/H.265 decoding (10 Bit)
- Resolution: PAL-25 frame@720 x 576, NTSC-30 frame@720x480
- Aspect format: 4:3, 16:9, with Pal&Scan and Letterbox conversion
- Audio decoding: MPEG-1 Layer I/II, MPEG-2 Layer I/II
- Audio output modes: Stereo, mono, dx / sx
Features:
- Battery: 7.4 / 5000 V / mA
- Supply Voltage: Input: 100 ÷ 240 VAC - 50 / 50 Hz - Output: 12 VDC / 1.5 A
- Display: 7" color TFT LCD
- Operating temperature: -5/+45 degrees
- Dimensions: 250x180x55 mm (WxHxD)
Advantages:
- DVB-T/T2, DVB-S/S2/S2X and DVB-C tuner
- HEVC/H.265 10-bit video encoding compatibility
- Supports DiSEqC 1.0/1.1/1.2 and SCR/dCSS commands
- Power measurements signals over fiber optics
- Intuitive spectrum analysis and constellation
- Available with HDMI and AV inputs and outputs
- 7-inch high-definition TFT LCD screen
- Software update via USB port
- LED light for installations in dimly lit places
There are no reviews
Data sheet
- Type: Signal meters
