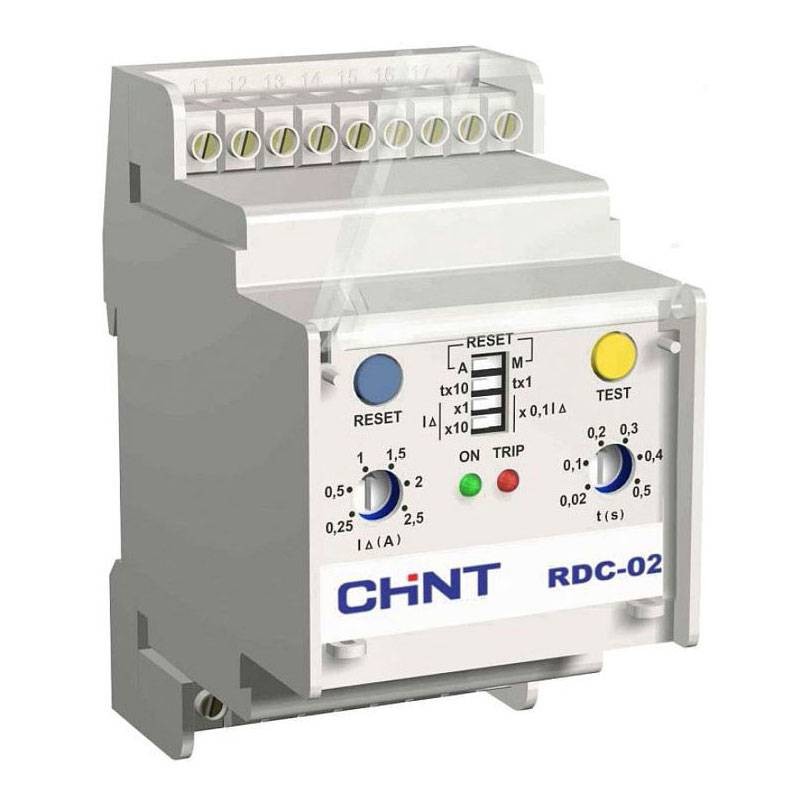

Chint modular differential relay Type A 0.025-25A 115012

Chint
Chint
CHT 115012 8058776750584

Chint modular differential relay version RDC-02A/110-400:



  • Reference standard EN 60947-2 (2007); EN 62423 (2013)
  • Rated contact current 5 amps
  • Differential characteristic A
  • Auxiliary supply voltage 110/400 Vac/Vdc
  • Rated frequency f 50/60 Hz
  • Power Dissipation 4 W
  • Number of DIN modules (1 DIN = 18 mm) 3
  • Degree of protection IP20
  • Auxiliary changeover contacts (1NO+1NC)
  • Dimensions (h)x(w)x(d) 85x52.5x73 mm
  • Time adjustment range 0.02 s - 5 s
  • Wide adjustment of thresholds and tripping times
  • Matching accessories Toroid series RT1
Do you have questions about this product or did you not find what you were looking for? Ask us!
Chint modular differential relay Type A 0.025-25A 115012
€195.30
€195.30

€195.30
Tax included
Calculate shipping cost
Items Available: 2
Further availability of the manufacturer
€195.30

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Overview:

  • RDC series modular differential relays. Due to the wide current/time regulation these devices allow to keep the contact value below 50 V, as required by IEC 64-8, and a selective type of protection. The presence of filters in the input circuit protects the devices from external disturbances, especially pulsating currents with DC components. Footprint 3 DIN modules. Auxiliary changeover contacts: 1NA+1NC. Available with type A differential and with type B differential. Auxiliary supply voltage: 24-48 V AC/DC and 110-400 V AC/DC for version with type A differential; 230 V AC for version with type B differential. To be equipped with toroid.

There are no reviews

Data sheet

Type:
Residual current relays
Voltage:
400VAC
Amps:
0.025-25A
