TCI ferromagnetic power supply 70W with thermal protection 183044
TCI 183044
8010703202030

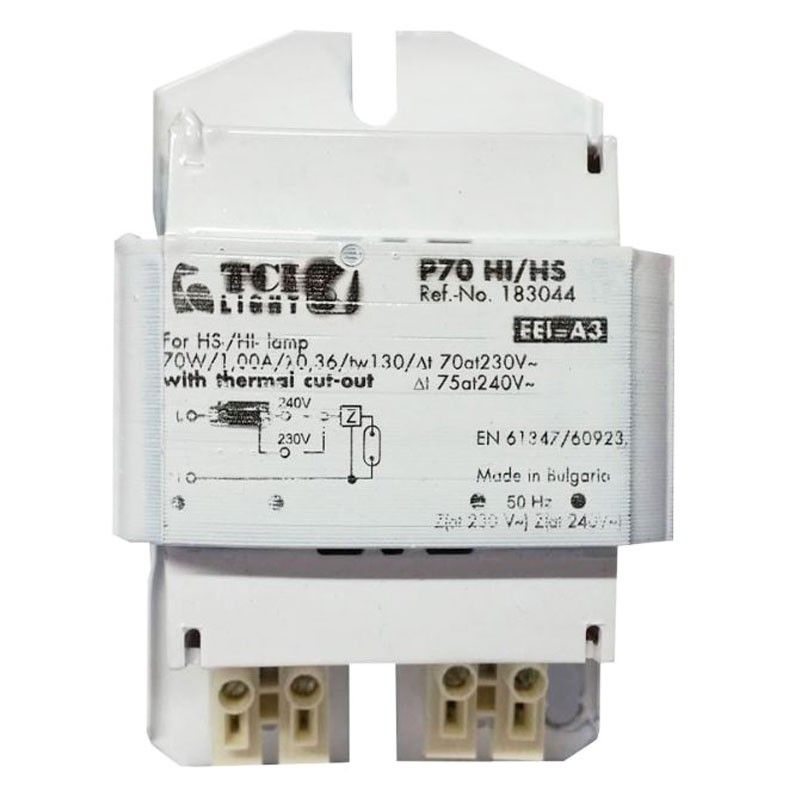

TCI model P 70 HI-HS ferromagnetic power supply for metal halide (HI) and sodium vapor (HS) lamps, with thermal protection, with the following characteristics:
- Voltage: 230/240V
- Frequency: 50 Hz
- Reference standards: EN 60923 EN 61347-1
- Terminal: rapid/push-wire
- Lamp current: 1 ampere
- DELTA T K: 70(230)-75(240)

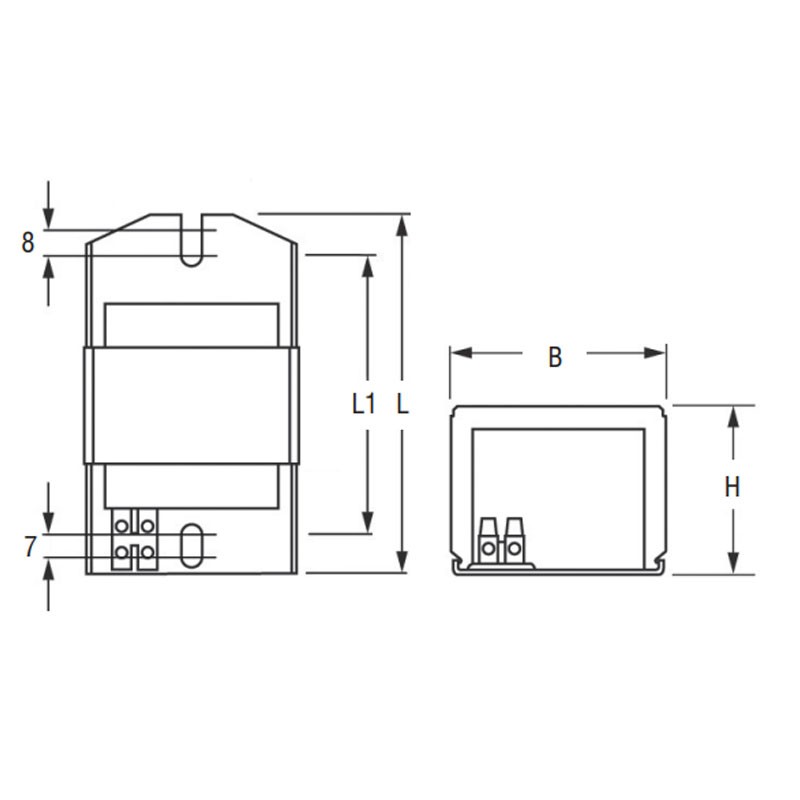

- Dimensions: B66 - H53 - W108 - L1 86
€15.10
Items Available: 12
: 11
Strengths:
- Ferromagnetic feeders to be incorporated, class I
- Polyester vacuum resins
- With thermal protection
- Winding temperature limit Tw 130°C
- Quick-connect terminals for cable diameters: 0.5 - 1.5 mm2
- Screw terminals for cable diameters of 0.5 - 2.5 mm2
There are no reviews
Data sheet
- Type: Ferromagnetic power supplies
- Watts: 51 to 100W
- Input voltage: 230/240V
