TCI ferromagnetic power supply 150W with thermal protection 183045
TCI 183045

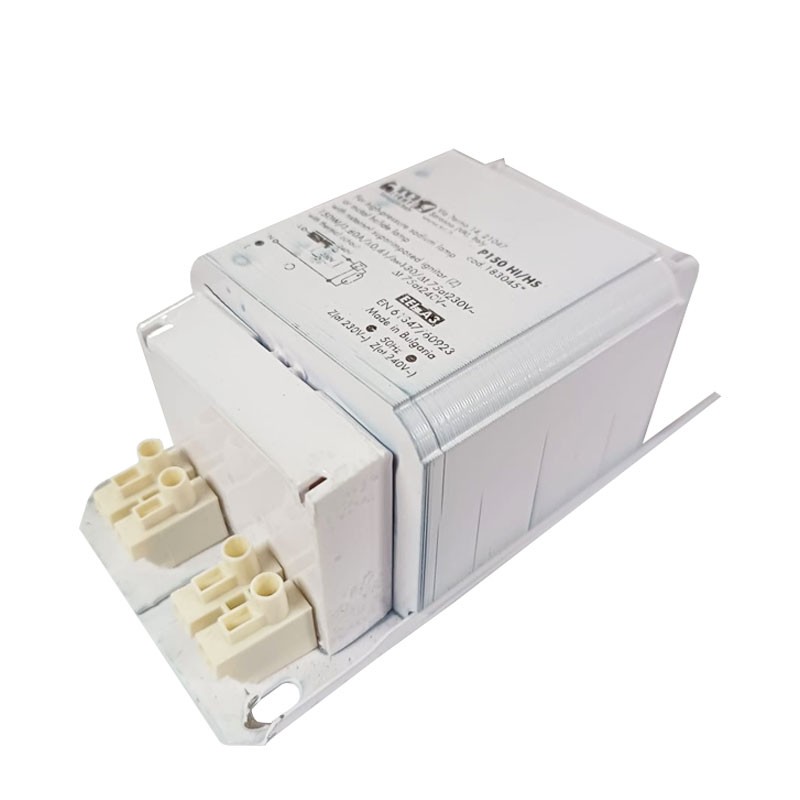

TCI model P 150 HI-HS ferromagnetic power supply for metal halide (HI) and sodium vapor (HS) lamps, with thermal protection, with the following characteristics:
- Voltage: 230/240V
- Frequency: 50 Hz
- 150 Watts
- Reference Standards: EN 60923 EN 61347-1
- Terminal/terminal: rapid/push-wire
- Lamp current: 1.8
- DELTA T K: 70(230)-75(240)

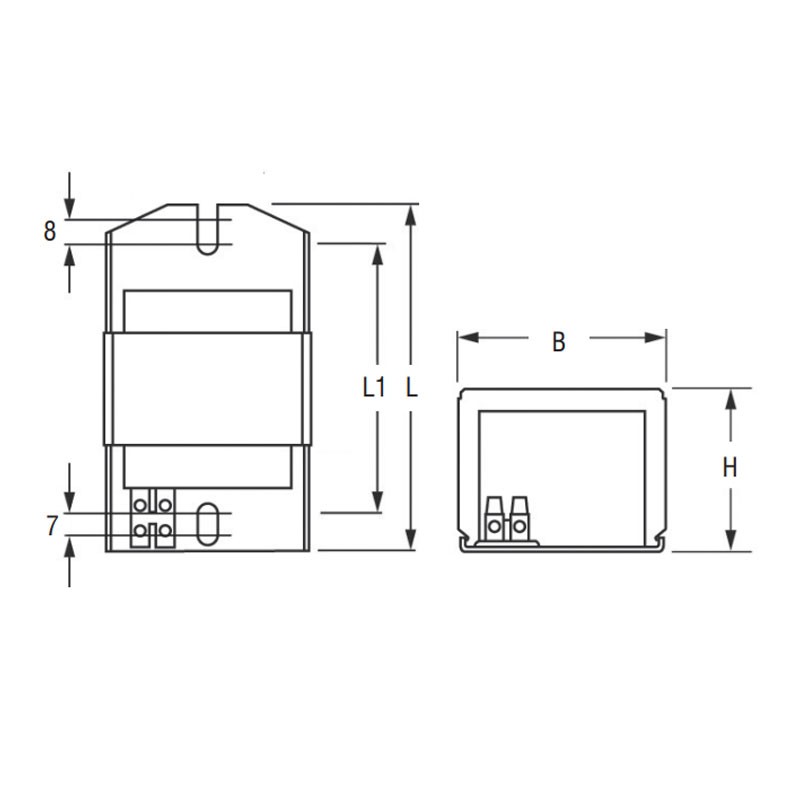

- Dimensions: B 66 - H 53 L 145 - L1 120
€21.20
Items Available: 16
: 3
Strengths:
- Ferromagnetic feeders to be incorporated, class I
- Polyester vacuum resins
- With thermal protection
- Winding temperature limit Tw 130°C
- Screw terminals for cable diameters 0.5 to 2.5 mm2
There are no reviews
Data sheet
- Type: Ferromagnetic power supplies
- Watts: From 101 to 200W
- Output voltage: 74 Vdc
- Input voltage: 230/240V
