TCI dimmable electronic transformer 50-210W 12VAC 119475C
TCI 119475C

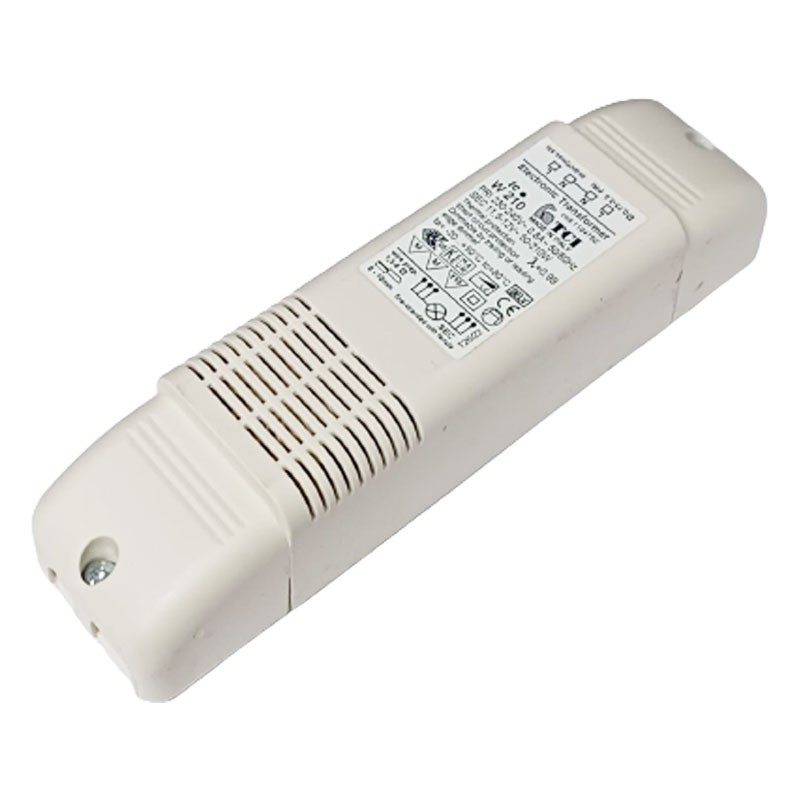

TCI WOLF 210 electronic transformer (IGBT regulation) dimmable, with the following characteristics:
- Input voltage: 230/240V
- Output voltage: 11.5-12
- Frequency: 50 to 60 Hz
- Power/consumption: 50-210 watts
- CT: -20/+50°C
- CT: +80°C
- Power factor: 0.99

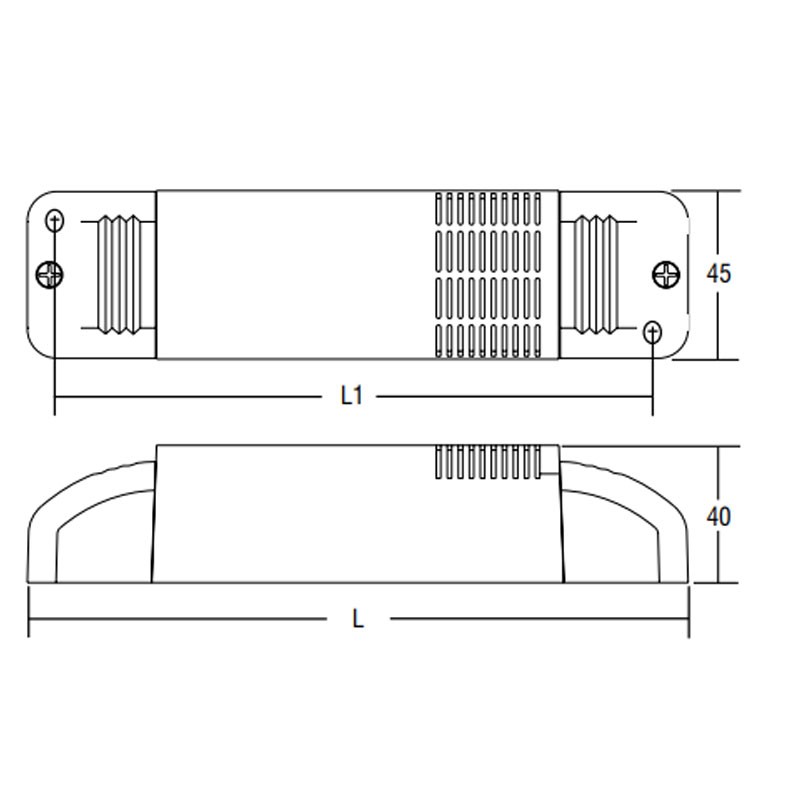

- Dimensions: length (L) 180 mm - fixing (L1) 166
- White color
- Weight: 184 grams
€30.87
Out of stock
Incoming
Features:
- Class II protected against electric shock by direct and indirect contacts
- Supplied with terminal cover and cable clamp
- Opposing input and output terminals
- Input terminals with possibility of loop on power supply
- Double terminal block on 230 V primary (terminal cross section 2.5 mm2)
- Triple terminal block on secondary 12 V (terminal cross section 2.5 mm2)
- Clamping on primary and secondary for cable diameter: min. 3 mm - max.6 mm. Cable sheathing max. 18 mm
- Transformer fastening using screw slots
Reference standards:
- EN 55015
- EN 60598-1
- EN 61000-3-2
- EN 61047
- EN 61347-1
- EN 61347-2-2
- EN 61547
- VDE 0710-T14
There are no reviews
Data sheet
- Type: Electronic transformers
