Lg Standard Dual Vane 4-way Cassette Air Conditioner 24000BTU 6.8kW
KIT LGICASS24
8806098569397
Lg Standard single-split air conditioner with baffles Dual Vane inverter single-phase cassette, 4-way for ceiling installation. Dual temperature control, optional Wi-Fi compatible, independent orientation and dry contact function, with energy class A++/A+.

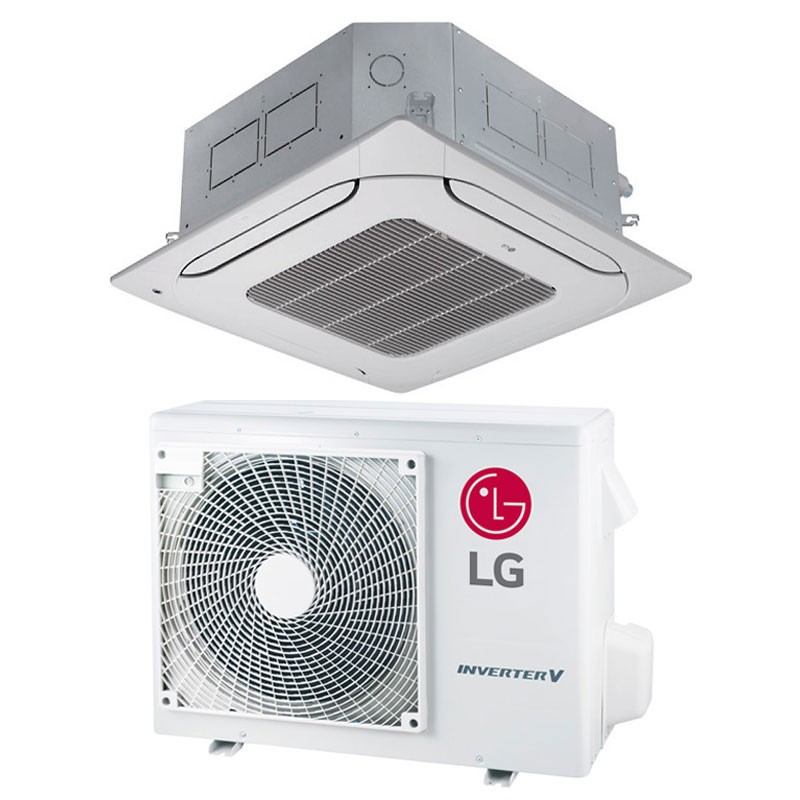

The kit consists of:
-

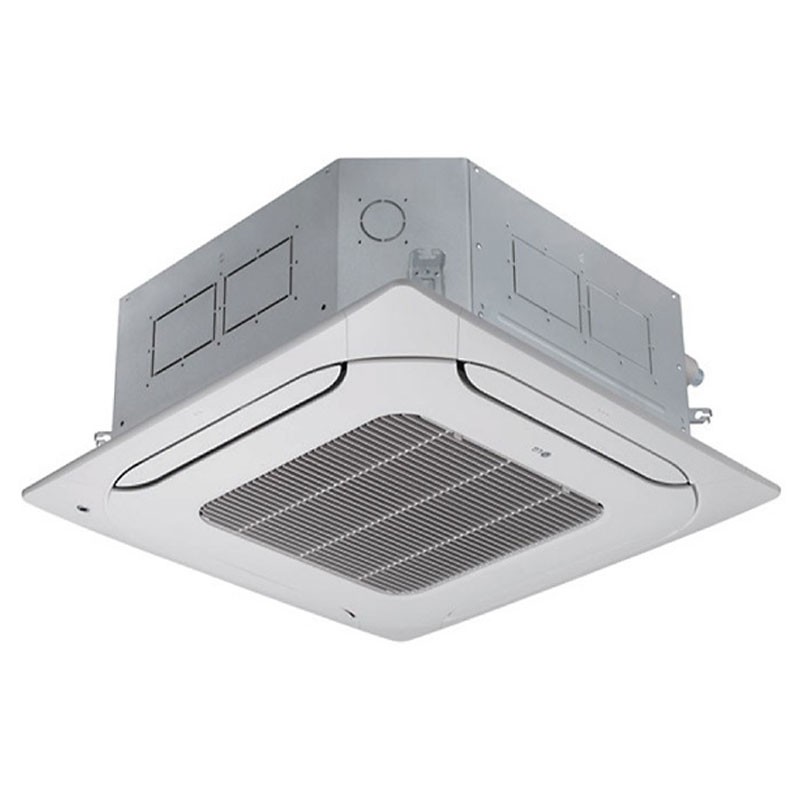

1 Indoor Unit 24000BTU CT24F.NB0
-

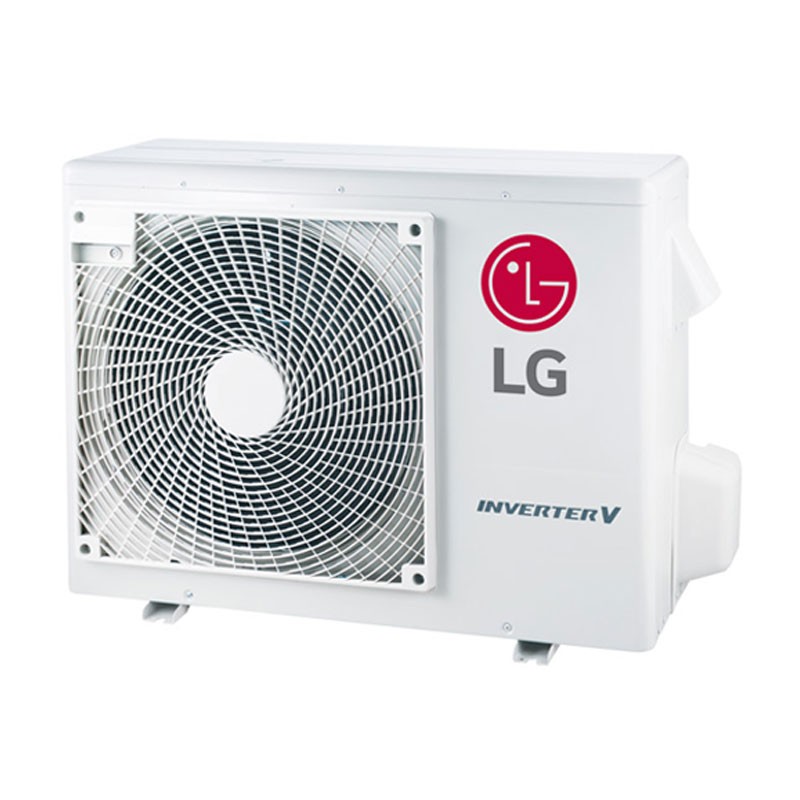

1 Outdoor Unit 24000BTU UUB1.U20
-
1 Grill for Dual Vane Indoor Unit PT-AAGW0
Optional controls to be purchased separately:
- Wi-Fi compatible with accessory code PWFMDD200
- Standard white wired control (PREMTB001)
For a room of approximately 78m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€1,795.97
Items Available: 4
: 2
Frequently bought together
LG Dual Vane Cassette Air Conditioner - Power, comfort and smart management in one system
LG Electronics' system with R32 refrigerant, consists of an outdoor unit with air refrigerant heat exchange to be installed outside of rooms and connected by refrigerant piping to an indoor unit for air conditioning,which can operate in either cooling or heating mode alternately.
Perfect air distribution with Dual Vane baffles
New Dual Vane technology allows each baffle to orient itself independently to match the geometry of the room and ensure uniform comfort without direct jets. Air diffusion is indirect and distributed, which is also ideal for offices or rooms with continuous presence of people.
Customized temperature management
With dual thermistor control, temperature can be sensed:
- From the sensor on the indoor unit
- From the wired control
- From both simultaneously (the lower value is used)
This makes it possible to optimize environmental comfort, especially in complex spaces or spaces with varying heights.
Adjustable head (E.S.P.) for installations up to 4.2 m
E.S.P. (External Static Pressure) regulation allows the head of the fans to be modulated by flush control. This ensures perfect air distribution even in rooms with ceilings up to 4.2 meters high or short ducted networks.
Smart automation and management
With the addition of the PWFMDD200 Wi-Fi module, the unit becomes smart and Google Home compatible, allowing remote control of functions via voice commands or LG ThinQ app.
Remotely manageable functions:
- Power on and off
- Temperature adjustment
- Operating mode setting
- Ventilation control
- Performance monitoring
Easy Maintenance and Dry Contact
Removable One Touch panel corners facilitate access for maintenance or cleaning. Built-in Dry Contact function enables remote on/off via external signal, ideal for integration with home automation or BMS systems
Technical specifications of the LG Cassette Air Conditioner
Climatizer Unit Performance
| Cooling Capacity (Min.~Nom.~Max.) | 2.70 ~ 6.80 ~ 7.50 kW |
|---|---|
| Hot Capacity (Min.~Nom.~Max.) | 3.00 ~ 7.50 ~ 8.60 kW |
| Power consumption capacity Cold (Min.~Nom.~Max.) | 0.40 ~ 2.00 ~ 2.40 kW |
| Power input Hot (Min.~Nom.~Max.) | 0.40 ~ 2.21 ~ 2.87 kW |
| Absorbed current Cold (Nominal) | 8.80 A |
| Absorbed current Hot (Nominal) | 9.60 A |
| EER / COP | 3.40 / 3.39 kWh/kWh |
| SEER / SCOP | 7.00 / 4.20 kWh/kWh |
| Seasonal Energy Class (Cold / Hot) | A++ / A+ |
| Annual Energy Consumption (Cold / Hot) | 340 / 1367 kWh |
| Dehumidification | 2.61 l/h |
| ODU Sound Pressure Cold (Nominal) | 48 dB(A) |
| ODU Sound Pressure Hot (Nominal) | 53 dB(A) |
| Sound power ODU Cold (Nominal) | 65 dB(A) |
| ODU Sound Power Warm (Nominal) | - |
| Pipe Connection - Liquid | Ø 9.52 mm (3/8") |
| Pipe Connection - Gas | Ø 15.88 mm (5/8") |
| Nominal Pipe Length | 7.5 m |
| Pipe Length Min. / Max. | 5.0 / 35.0 m |
| Dimensions Indoor Unit | 840x204x840 mm; Weight 21.1 kg |
| Panel Dimensions | 950x35x950 mm |
Outdoor Unit
| Power Supply (V, Ø, Hz) | 220-240 V, 1 Ø, 50 Hz |
|---|---|
| Electrical connections | 3C x 2.5 mm² |
| Color | Warm Gray RAL 7044 |
| Dimensions (W x H x D) | 870 × 650 × 330 mm |
| Weight | 44.50 kg |
| Motor | Twin Rotary BLDC |
| Refrigerant gas | R32 |
| GWP | 675 |
| Precharged | 1.200 g |
| t-CO₂eq. | 0,810 |
| Liquid connection | Ø 6.35 mm (1/4") |
| Gas connection | Ø 12.70 mm (1/2") |
| Maximum distance indoor-outdoor units | 30 meters |
There are no reviews
Data sheet
- Air conditioners: Cassette
- Gas: R32
- Power: 24000 BTU (7,1 Kw)
- System: Monosplit
- Room Size: 78m²
- Energy class: A++
