Lg Standard 4-way cassette air conditioner 18000BTU 5.0kW
KIT LGICASS18
8806098469673
Single-split Lg Standard inverter single-phase cassette air conditioner, 4-way for ceiling installation. Dual temperature control, optional Wi-Fi compatible, independent orientation and dry contact function, with energy class A++/A.

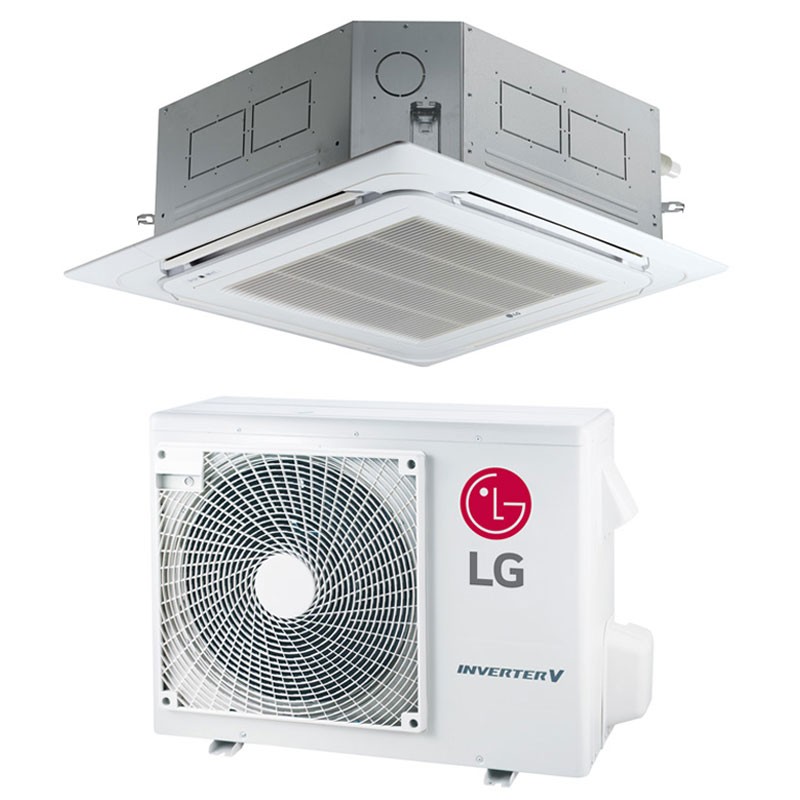

The kit consists of:
-

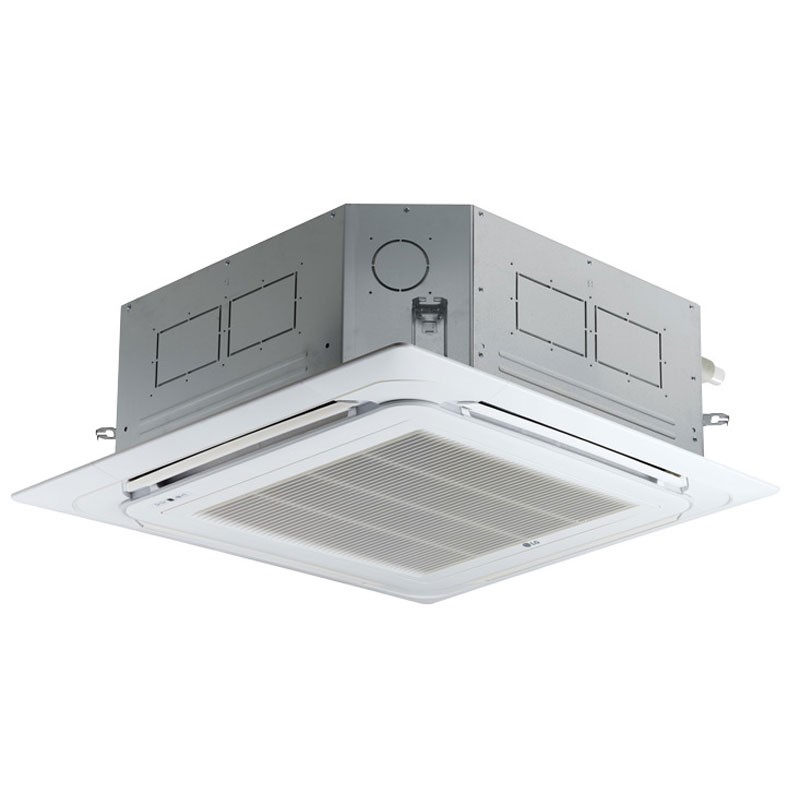

1 Indoor Unit 18000BTU CT18F.NQ0
-

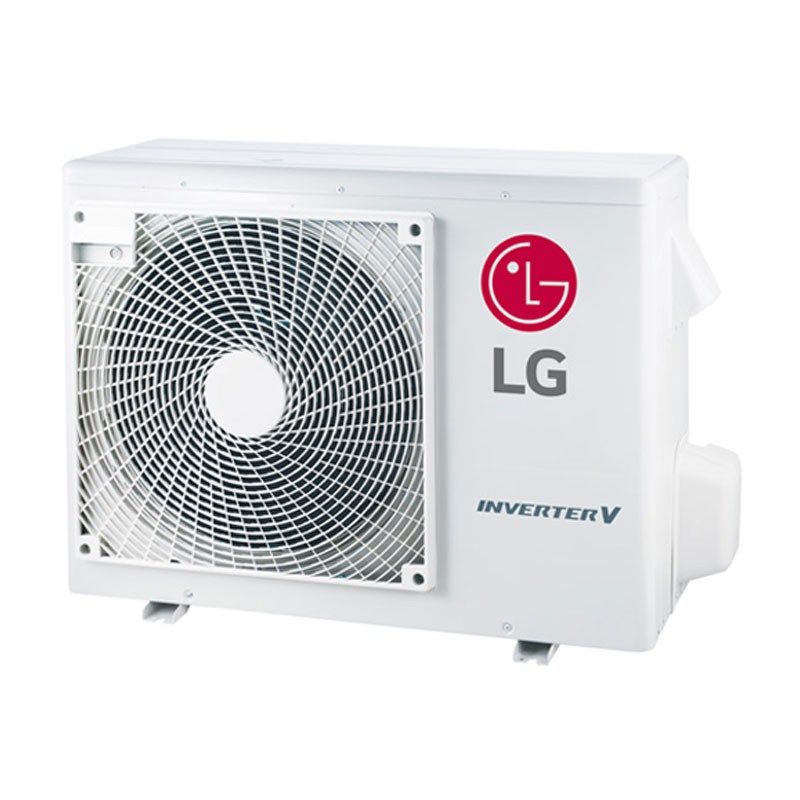

1 Outdoor Unit UUA1.UL0
-
1 Indoor Unit Grille 620x620mm PT-QAGW0
Optional controls to be purchased separately:
- Wi-Fi compatible with accessory code PWFMDD200
- Standard white wired control (PREMTB001)
For a room of approximately 55m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€1,316.97
Items Available: 2
: 1
Frequently bought together
Lg cassette air conditioner: total comfort with 4-way diffusion
LG's 12000 BTU cassette air conditioner is the ideal solution for residential and commercial spaces, providing uniform airflow in every direction thanks to its 4-way baffles. Perfect for ceiling installations in rooms up to 35 m².
Advanced temperature control
Equipped with dual thermistor control, it enables temperature sensing:
- Directly from the indoor unit
- From the wired control
- Or in combined mode, selecting the lowest value detected to optimize room comfort.
Electronic Head Adjustment (E.S.P.)
With the ESP function that can be adjusted from the wired control, the head of the unit can be adapted to the installation requirements on ceilings up to 4.2 meters high, increasing the air flow rate automatically to maintain efficiency even in large rooms.
Adjustable baffles and easy accessibility
Each baffle can be individually controlled for customized airflow management based on room geometry. The front panel features One Touch removable corners for easy maintenance of the indoor unit.
Wi-Fi control and smart home
By installing the optional LG PWFMDD200 Wi-Fi module, the unit becomes compatible with the Google Home voice assistant, allowing remote control via ThinQ app or voice commands. Available functions:
- Power on/off
- Temperature adjustment
- Operating mode selection
- Ventilation setting
- Performance monitoring
Automation and remote management
The presence of built-in dry contact allows the unit to be turned on or off by external signal, useful for home automation systems or integration into BMS systems
Technical specifications of the LG Cassette Air Conditioner Unit
Air Conditioner Unit Performance
| Cooling Capacity (Min.~Nom.~Max.) | 1.80 ~ 5.00 ~ 5.50 kW |
|---|---|
| Hot Capacity (Min.~Nom.~Max.) | 2.10 ~ 5.20 ~ 5.70 kW |
| Power consumption Cold (Min.~Nom.~Max.) | 0.34 ~ 1.76 ~ 2.11 kW |
| Power input Hot (Min.~Nom.~Max.) | 0.30 ~ 1.45 ~ 1.87 kW |
| Absorbed current Cold (Nominal) | 7.80 A |
| Absorbed current Hot (Nominal) | 6.40 A |
| EER / COP | 2.85 / 3.60 kWh/kWh |
| SEER / SCOP | 6.30 / 3.90 kWh/kWh |
| Seasonal Energy Class (Cold / Hot) | A++ / A |
| Annual Energy Consumption (Cold / Hot) | 278 / 1005 kWh |
| Dehumidification | 1.84 l/h |
| ODU Sound Pressure Cold (Nominal) | 49 dB(A) |
| ODU Sound Pressure Hot (Nominal) | 52 dB(A) |
| Sound Power ODU Cold (Nominal) | 65 dB(A) |
| ODU Sound Power Warm (Nominal) | - |
| Pipe Connection - Liquid | Ø 6.35 mm (1/4") |
| Pipe Connection - Gas | Ø 12.70 mm (1/2") |
| Nominal Pipe Length | 7.5 m |
| Pipe Length Min. / Max. | 5.0 / 30.0 m |
Outdoor Unit
| Power Supply (V, Ø, Hz) | 220-240 V, 1 Ø, 50 Hz |
|---|---|
| Electrical connections | 3C x 1.5 mm² |
| Color | Warm Gray RAL 7044 |
| Dimensions (W x H x D) | 770 × 545 × 288 mm |
| Weight | 33.30 kg |
| Motor | Twin Rotary BLDC |
| Refrigerant gas | R32 |
| GWP | 675 |
| Precharged | 1.000 g |
| t-CO₂eq. | 0,675 |
| Liquid connection | Ø 6.35 mm (1/4") |
| Gas connection | Ø 9.52 mm (3/8") |
| Maximum distance indoor-outdoor units | 30 meters |
There are no reviews
Data sheet
- Air conditioners: Cassette
- Gas: R32
- Power: 18000 BTU (5,0 Kw)
- System: Monosplit
- Room Size: 55m²
- Energy class: A++
