Lg low-pressure ducted air conditioner 12000BTU 3.5kW
KIT LGICAN12
8806098475759
Single-split Lg Standard inverter single-phase ductable compact ceiling-mounted air conditioner, BLDC motor, dual thermistor, with energy class A+/A.

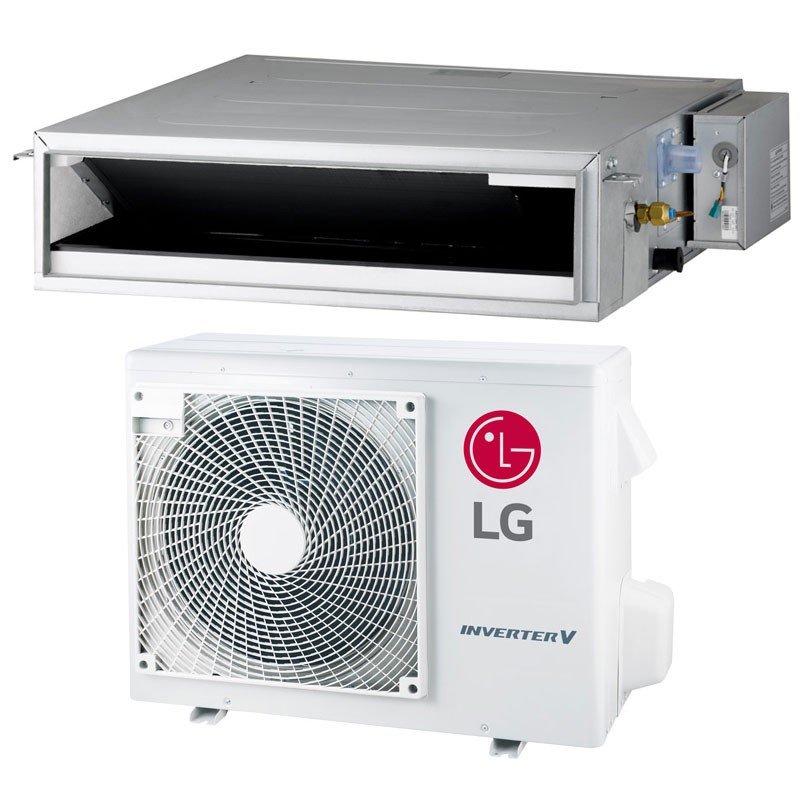

The kit consists of:
-

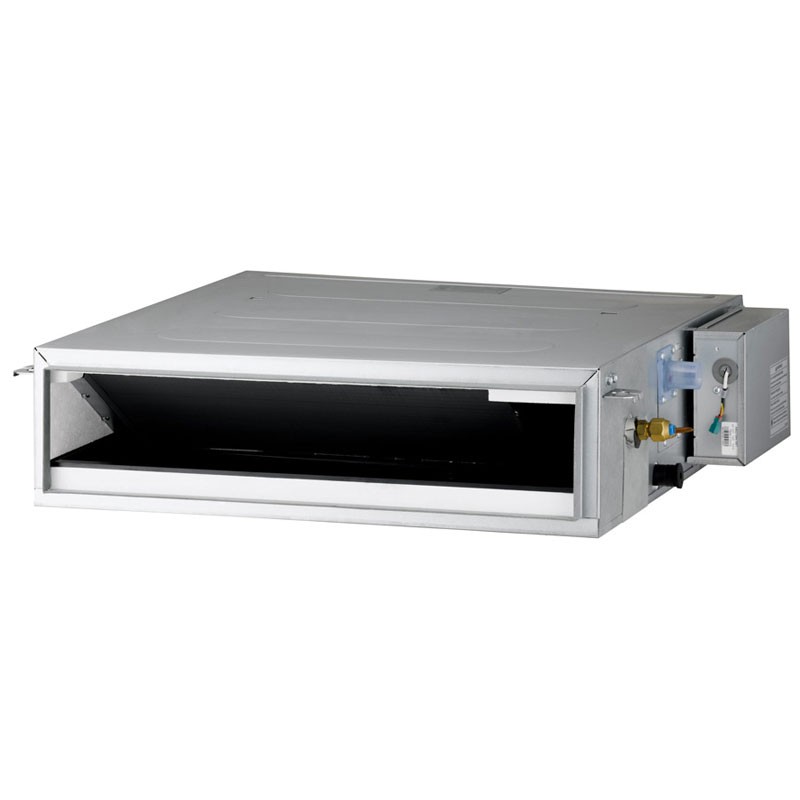

1 Indoor Unit 12000BTU CL12F.N50
-

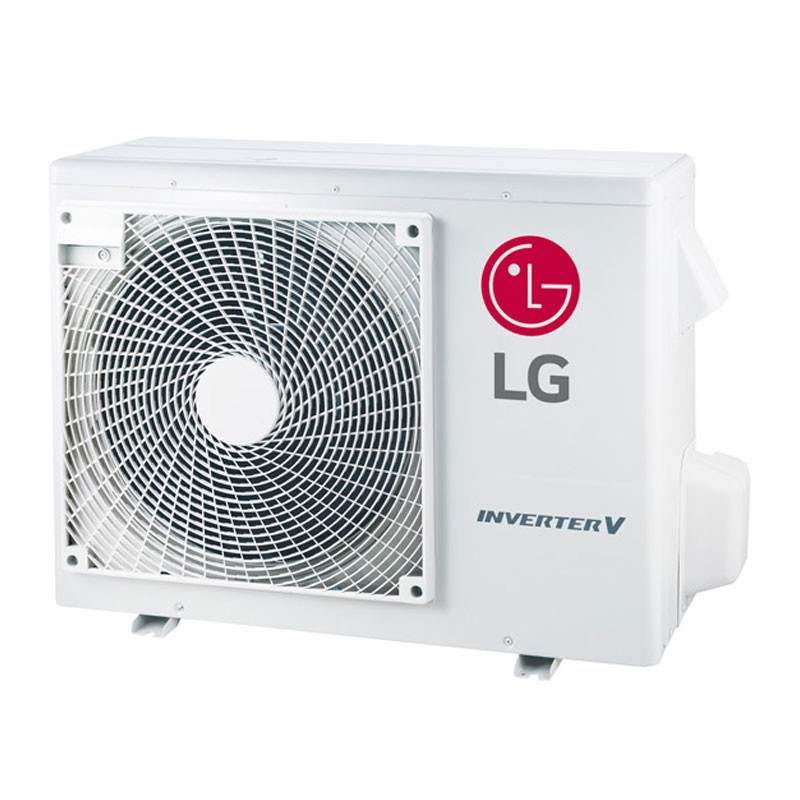

1 Outdoor Unit 12000BTU UUA1.UL0
Optional controls to be purchased separately:
- Wi-Fi compatible with accessory code PWFMDD200
- Standard white flush control (PREMTB001)
For a room of approximately 35m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€1,087.98
Items Available: 3
: 2
Frequently bought together
LG Ducted Low Head - Quiet operation, advanced control and Wi-Fi integration.
Power and versatility in just 190 mm height

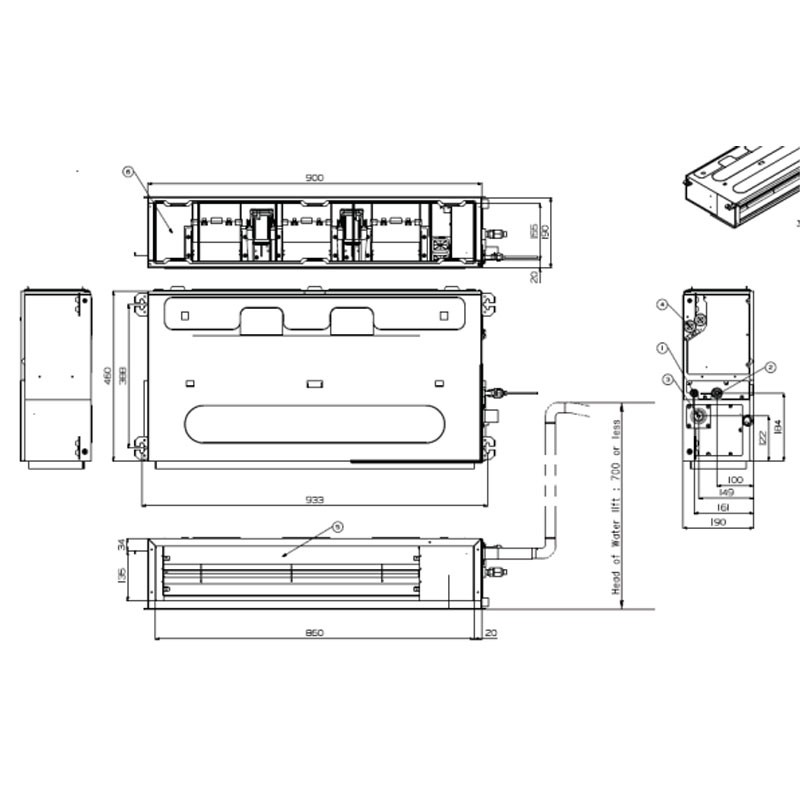

Designed for systems with R32 refrigerant, LG's ducted low-pressure air conditioner provides excellent performance in an ultra-compact chassis (900x190x460 mm), ideal for recessed ceiling installation.
The galvanized steel sheet structure covered with expanded polystyrene ensures strength, insulation and long life.
Optimized ventilation with BLDC motor
The Sirocco fan with direct-coupled BLDC motor provides efficient and quiet ventilation.
With automatic pressure drop control, the unit maintains optimal airflow and minimizes ambient noise.
Intelligent temperature control with dual thermistor
The unit is equipped with two temperature sensors: one built into the unit body, the other on the flush control. You can manage comfort:
- Using a single thermistor
- By activating dual thermistor logic for more precise indoor temperature control
Compatibility with Wi-Fi, apps and voice control
By connecting the PWFMDD200 accessory, the LG ducted air conditioner can be managed remotely via LG ThinQ and controlled with Google Home or Alexa.
Functions available via Wi-Fi:
- Turning on and off
- Temperature setting
- Operating mode selection
- Fan speed adjustment
- Real-time monitoring
Dry Contact - External Remote Control
Units are set up for on/off via dry contact, simplifying integration into home automation systems or customized automation systems.
Technical specifications of the LG Ducted Air Conditioner
Air Conditioner Unit Performance
| Cooling Capacity (Min.~Nom.~Max.) | 1.50 ~ 3.40 ~ 4.70 kW |
|---|---|
| Hot Capacity (Min.~Nom.~Max.) | 1.80 ~ 4.00 ~ 4.90 kW |
| Power consumption Cold (Min.~Nom.~Max.) | 0.33 ~ 1.06 ~ 1.84 kW |
| Power input Hot (Min.~Nom.~Max.) | 0.33 ~ 1.08 ~ 1.63 kW |
| Absorbed current Cold (Nominal) | 4.70 A |
| Absorbed current Hot (Nominal) | 4.80 A |
| EER / COP | 3.23 / 3.71 kWh/kWh |
| SEER / SCOP | 5.60 / 3.80 kWh/kWh |
| Seasonal Energy Class (Cold / Hot) | A+ / A |
| Annual Energy Consumption (Cold / Hot) | 213 / 1068 kWh |
| Dehumidification | 0.78 l/h |
| ODU Sound Pressure Cold (Nominal) | 49 dB(A) |
| ODU Sound Pressure Hot (Nominal) | 52 dB(A) |
| Sound power ODU Cold (Nominal) | 65 dB(A) |
| ODU Sound Power Warm (Nominal) | - |
| Pipe Connection - Liquid | Ø 6.35 mm (1/4") |
| Pipe Connection - Gas | Ø 9.52 mm (3/8") |
| Nominal Pipe Length | 7.5 m |
| Tubes Length Min. / Max. | 5.0 / 30.0 m |
Outdoor Unit
| Power Supply (V, Ø, Hz) | 220-240 V, 1 Ø, 50 Hz |
|---|---|
| Electrical connections | 3C x 1.5 mm² |
| Color | Warm Gray RAL 7044 |
| Dimensions (W x H x D) | 770 × 545 × 288 mm |
| Weight | 33.30 kg |
| Motor | Twin Rotary BLDC |
| Refrigerant gas | R32 |
| GWP | 675 |
| Precharged | 1.000 g |
| t-CO₂eq. | 0,675 |
| Liquid connection | Ø 6.35 mm (1/4") |
| Gas connection | Ø 9.52 mm (3/8") |
| Maximum distance indoor-outdoor units | 30 meters |
There are no reviews
Data sheet
- Air conditioners: Ducted
- Gas: R32
- Power: 12000 BTU (3,5 Kw)
- System: Monosplit
- Room Size: 35m²
- Energy class: A+
