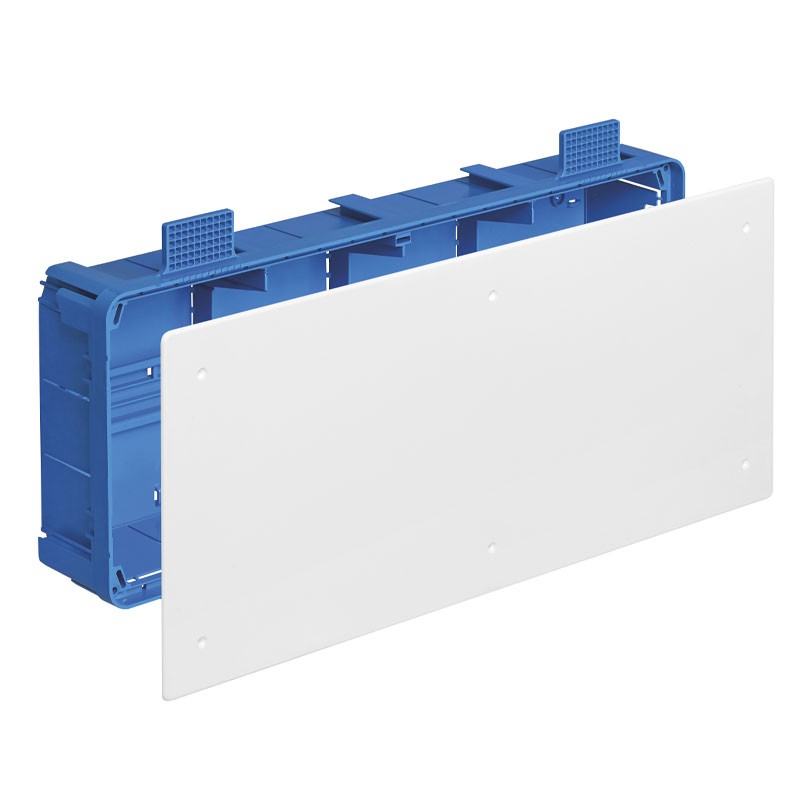

Vimar IP20 Light Wall Junction Box Blue V72008
VIW V72008
8007352589971
Vimar light wall junction box, with white cover and fixing screws, ideal for recessed installation, with the following features:
-
Mounting type: Recessed, for lightweight walls
-
Shape: Rectangular
-
Material: Halogen-free plastic
-
Box color: Blue
-
Lid color: White
-
External dimensions: 402x164 mm
-
Depth: 73.5mm
-
Degree of protection: IP20
€10.96
Items Available: 40
Rectangular junction box for lightweight walls
The 402x164x73.5 mm junction box is designed for recessed electrical installations in lightweight walls, such as plasterboard or modular panels. Constructed of durable halogen-free plastic, it provides excellent protection and versatility of use while maintaining small depth dimensions.
Ample interior space and wiring versatility
With an internal depth of 73.5 mm and 22 inlets prepared through knockout holes, the box is perfect for enclosing connectors, splices and branches. It can also be inserted from the rear, making it particularly practical for renovations and installations in residential, tertiary and commercial settings.
Safety and fire resistance
The box complies with the 850°C glow wire test, ensuring high resistance in the event of a short circuit or overheating, according to safety regulations in domestic and public environments.
Construction details and mounting
-
Blind white cover attaches with exposed screws, ensuring firm and fast closure
-
Can be coupled with other boxes of the same type, allowing modular configurations for larger electrical installations
-
Available and optional tube locking, for greater wiring stability
-
Made to ensure mechanical strength and ease of machining, even with hand tools
Technical Specifications Vimar junction box
| Parameter | Value |
|---|---|
| Mounting Type | Recessed, for lightweight walls |
| Shape | Rectangular |
| Material | Halogen-free plastic |
| Box color | Blue |
| Lid color | White (blind, not transparent) |

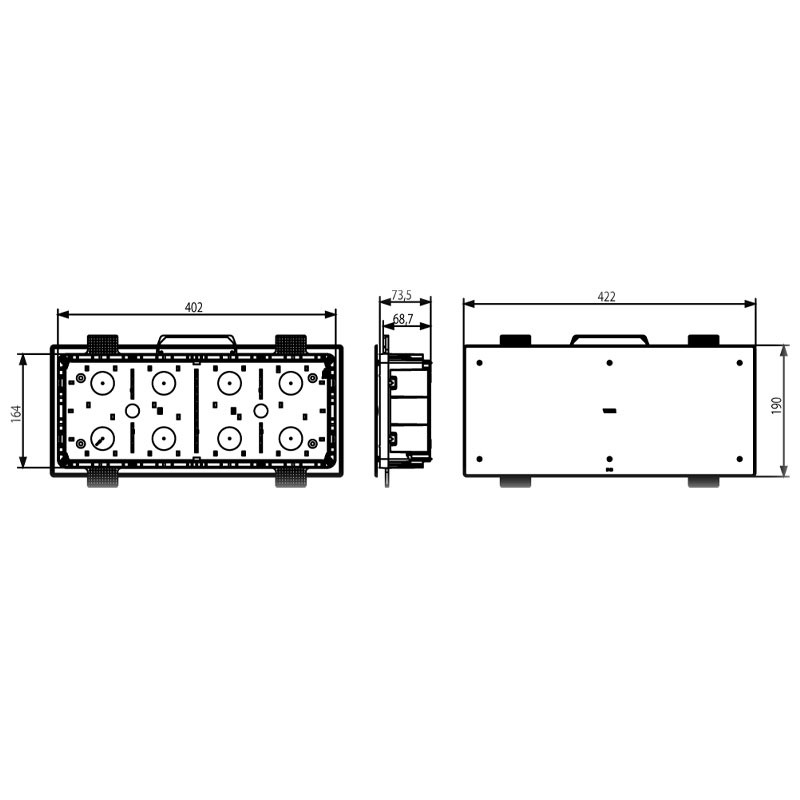

| External dimensions | 402 x 164 x 73.5 mm |
| Depth | 73.5 mm |
| Degree of protection | IP20 |
| Glow wire resistance | 850 °C (GW 850) |
| Number of inlets | 22 with breakable holes |
| Back passage | Yes |
| Cover fixing | With screws |
| Couplability | Possible with other boxes |
There are no reviews
Data sheet
- Type: Recessed
- Shape: Rectangular
