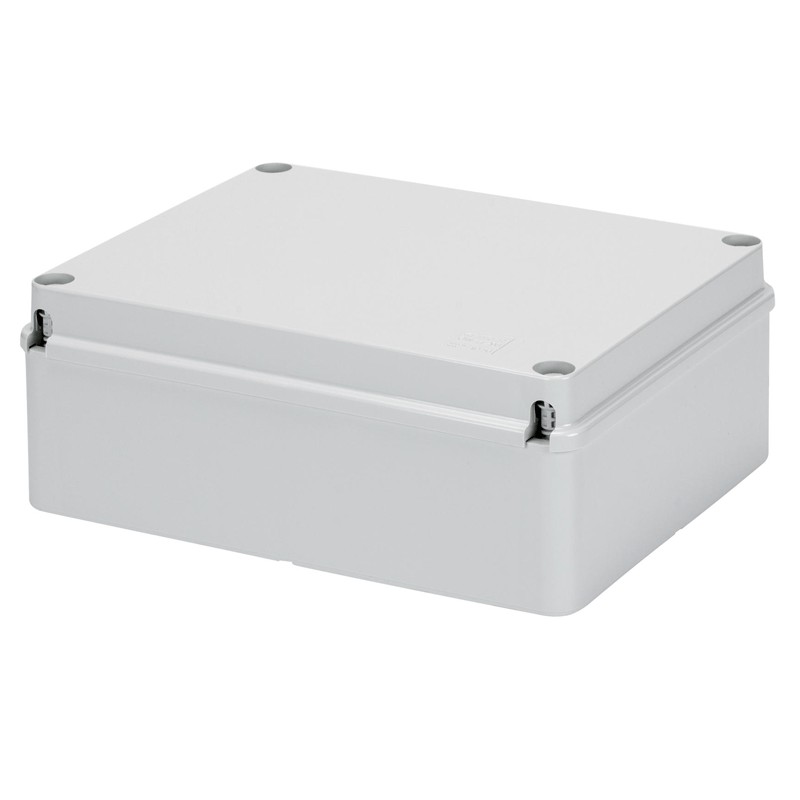

Gewiss external smooth wall box IP56 240x190x90 GW44208
GEW GW44208
8011564013810
Gewiss junction box, with the following characteristics:
- With low screw-on cover
- Internal dimensions BxHxD 240x190x90 mm
- IP56 degree of protection
Accessories for restoring insulation: GW44621, GW44622.
€17.06
Items Available: 1801
: 313
Features:
- Gewiss Series
- Smooth walls
- Colour grey RAL 7035
- Insulation class II (according to IEC 61140 standard)
- Impact resistance IK08
- Application ordinary branches
- Type Material Halogen free in accordance with EN 60754-2
- Glow wire resistance 650 °C
- Electrocod code 02211
- Degree of protection IP56
- Maximum diameter of the holes: 37 mm
- Thermopressure with ball 85 °C
- Low screw lid
- Material Technopolymer GWPLAST 75
- Cover screws (no. and type) 4 lockable hinged insulators
- Working temperature -25 +60 °C
- Screw tightening torque 1.8 Newton metres
- Internal dimensions BxHxD 240x190x90 mm
Data sheet
- Type: Wall
- Shape: Rectangular
- Version: Standard
- Degree of protection: IP56
- Model: Smooth wall
