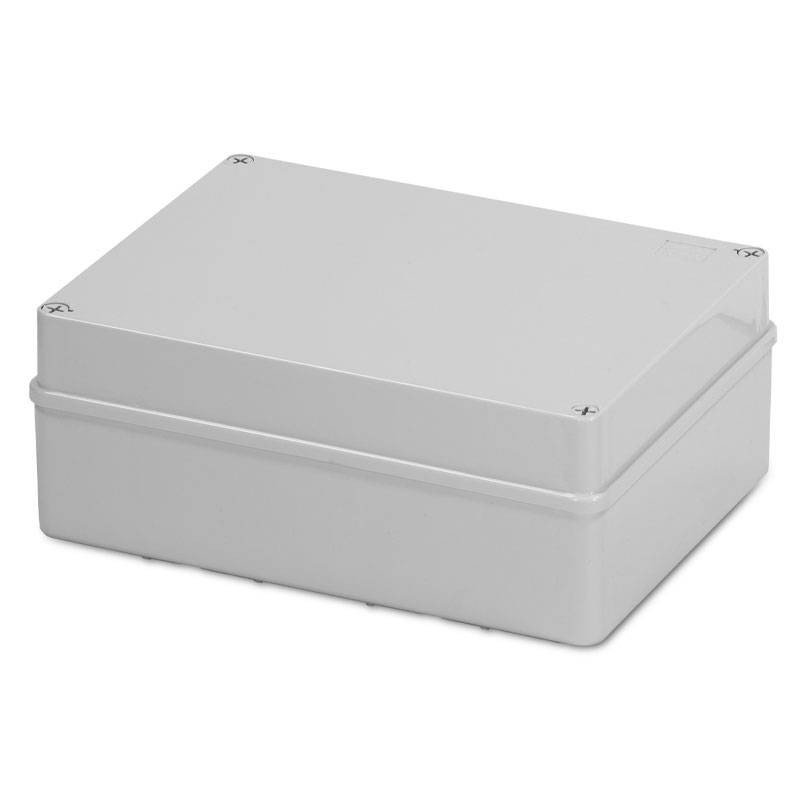

Master External junction box IP56 300x220x120 mm M03205
MST M03205
8015919009244
Master external junction box with screws with the following characteristics:
- Insulation voltage: 1000V
- Place of installation: indoor/outdoor
- Degree of protection: IP56
- Dimensions: 300x220x120mm
- Colour: Grey
€16.56
Items Available: 130
: 18
Features:
- Material type: ABS, insulation
- Fixing method: Ceiling/wall
- Impact resistance: IK07
- Dielectric strength: 2.5kV
- Glow wire: 650 °C
- Insulation temperature index: 90 °C (Thermal class 90, Y)
- Temperature -5 °C / +60 °C
- Relative humidity: 100% HR
- Halogen-free
- Cover fixing with captive iron screws with anti-rust treatment
There are no reviews
Data sheet
- Type: Wall
- Shape: Rectangular
- Version: Standard
- Degree of protection: IP56
- Model: Smooth wall
