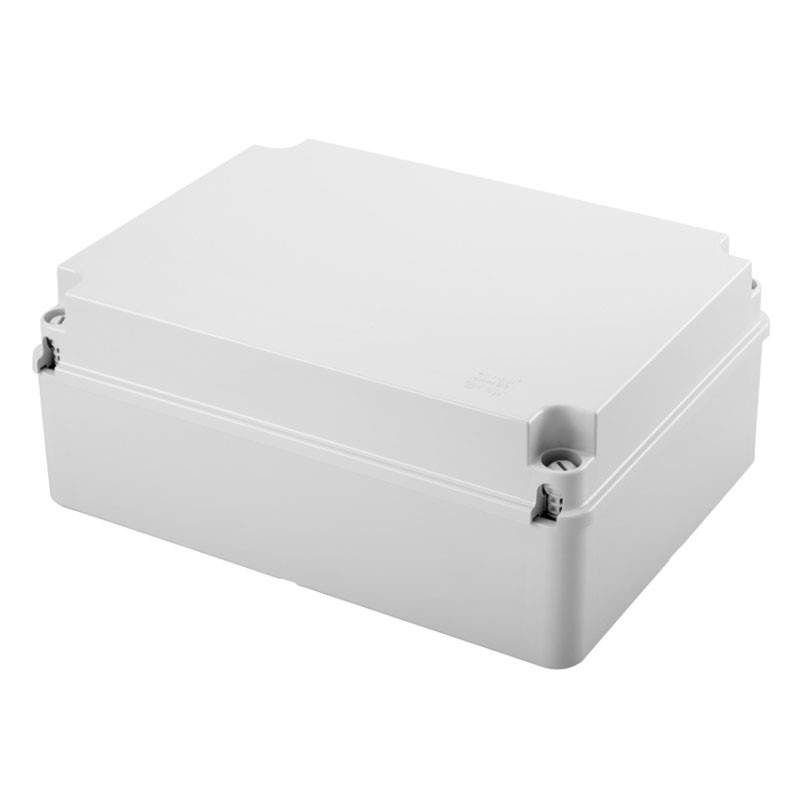

Gewiss external smooth wall box IP55 300x220x120 GW44209
GEW GW44209
8011564013827
Gewiss Junction box with low screw cover, with the following features:
- IP56 Protection
- Cover screws (no. and type): 4 isolation hinged lockable
- Color: grey RAL 7035

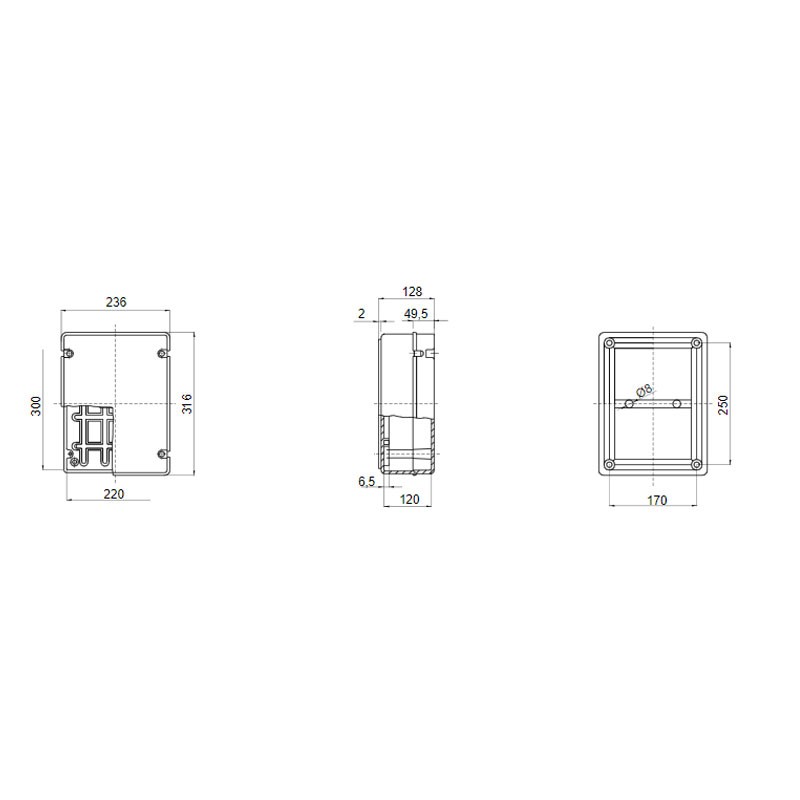

- Internal dimensions BxHxP (mm):300x220x120
Accessories for restoring insulation GW44621, GW44622.
€30.81
Items Available: 1678
: 236
Features:
- Gewiss Series
- Insulation class: II (according to IEC 61140)
- Material Technopolymer GWPLAST 75
- Impact resistance IK08
- Max. diameter executable holes: 48 mm
- Application: Ordinary branches
- Glow wire resistance: 650 °C
- Temperature of use: -25 +60 °C
- Material type: Halogen free according to EN 60754-2 standard
- Electrocod code: 02211
- Thermopressure with ball: 85 °C
- Screw tightening torque: 1.8 Newton/meters
- Walls: smooth
Ottimo prodotto, incontra le mie aspettative.
Si tratta di un componente di ottima qualità.
Data sheet
- Type: Wall
- Shape: Rectangular
- Version: Standard
- Degree of protection: IP55
- Model: Smooth wall
