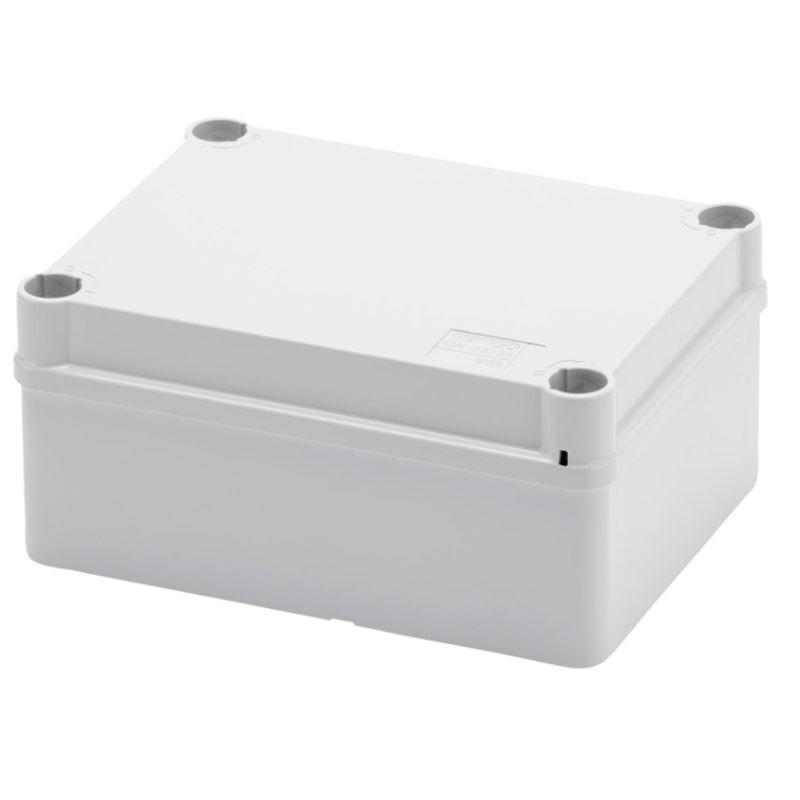

Gewiss external smooth wall box IP55 150x110x70 GW44236
GEW GW44236
8011564196230
Gewiss outdoor junction box with the following features:
- With low cover and 1/4 turn screws
- Degree of protection IP55

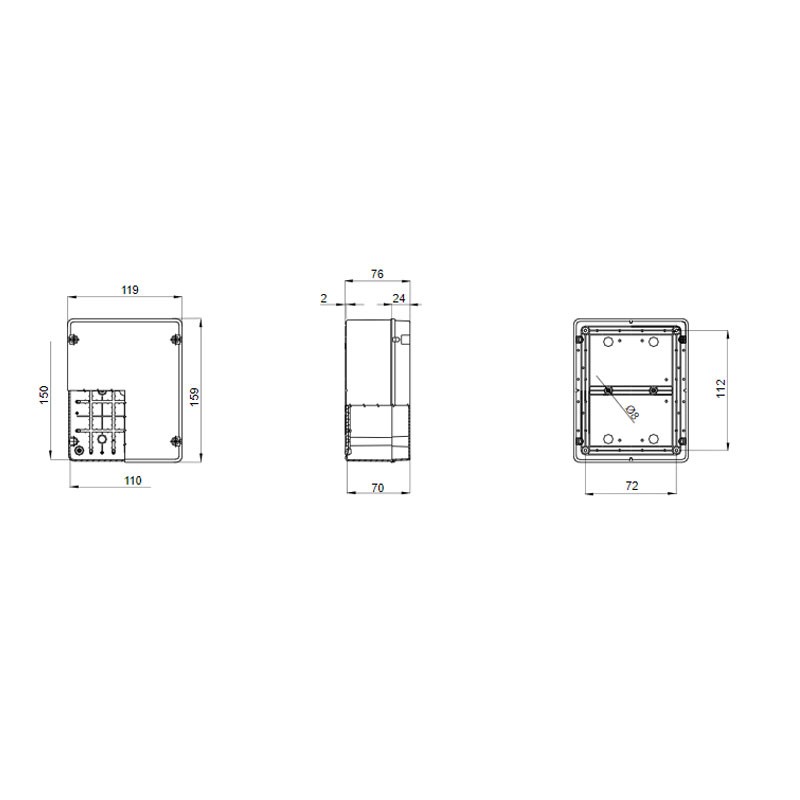

- Internal dimensions BxHxP (mm): 150X110X70
- Smooth walls
- Lid: low screw
- Color: grey RAL 7035
Accessories for restoring insulation GW44622.
€7.51
Items Available: 4794
: 2085
Features:
- Gewiss Series
- Insulation class: II (according to IEC 61140)
- Material Technopolymer GWPLAST 75
- Impact resistance IK08
- Max. executable holes Ø: 29 mm
- Cover screws (no. and type): 4 insulated 1/4 turn, pluggable
- Application: Ordinary drifts
- Glow wire resistance: 650 °C
- Temperature range: -25 +60 °C
- Type Material: Halogen free according to EN 60754-2 standard
- Electrocod code: 02211
- Thermopressure with ball 85 °C
- Screw tightening torque: 1,2 Newton/meters
- Ware number 85381000
OkOttimo prodotto!!!!!!!!!!!.
Prodotto conforme alla descrizione. Spedizione veloce. Soddisfatto al 100%
Articolo conforme alle aspettative rapporto qualità prezzo ottimo
Articolo come riportato nella descrizione.
Data sheet
- Type: Wall
- Shape: Rectangular
- Version: Standard
- Degree of protection: IP55
- Model: Smooth wall
