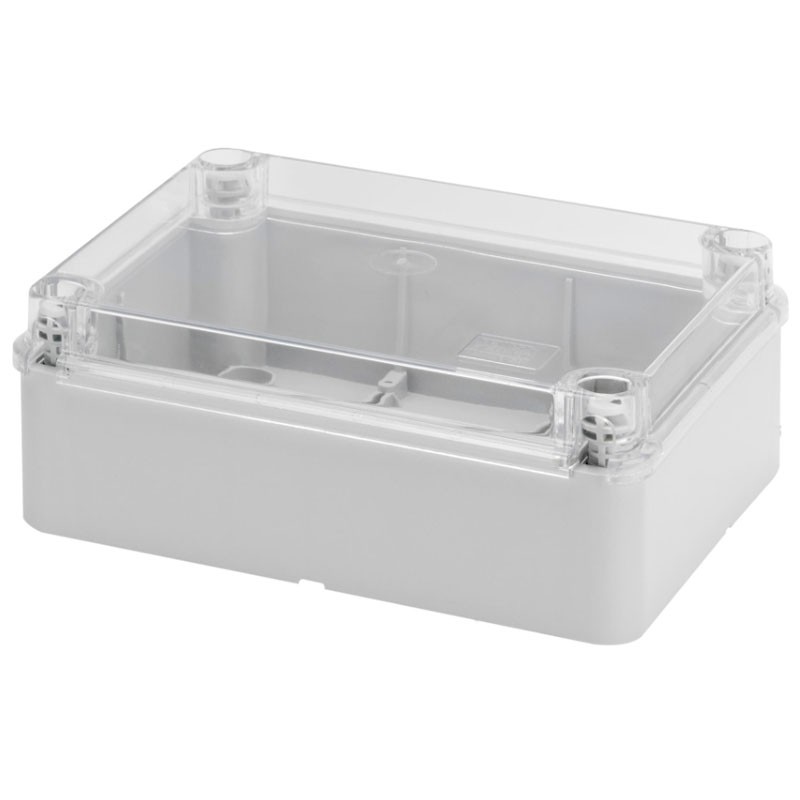

Gewiss external box with transparent cover 190x140x70 GW44427
GEW GW44427
8011564014107
Gewiss junction box, with the following characteristics:
- Suitable for electrical and electronic equipment
- Low and transparent cover
- Degree of protection IP56

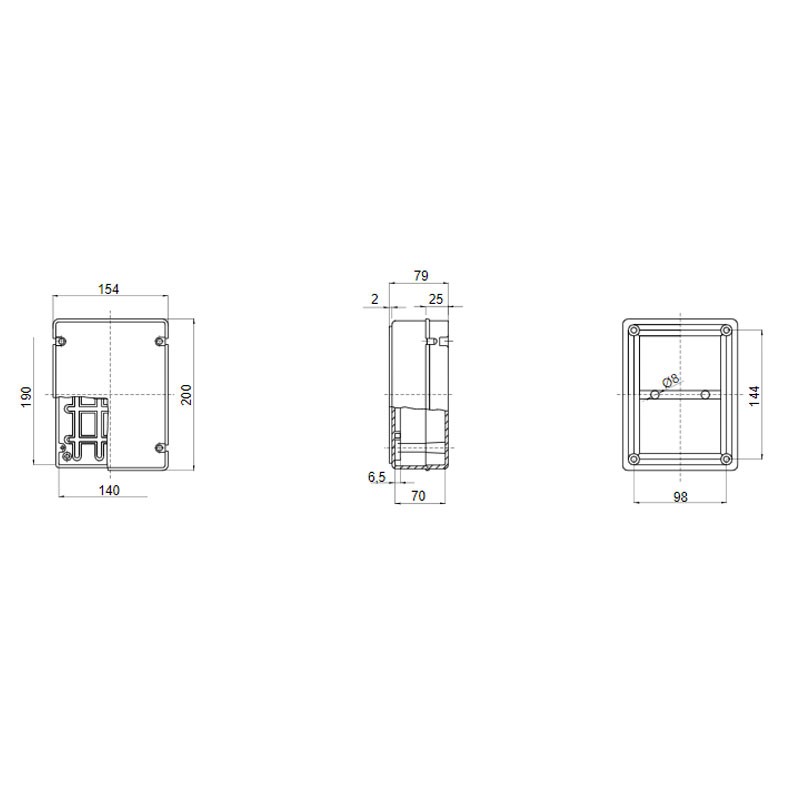

- Internal dimensions BxHxP (mm): 190x140x70
- Smooth walls
Accessories for restoring insulation GW44621, GW44622.
€30.07
Items Available: 391
: 107
Features:
- Gewiss Series
- Insulation class: II (according to IEC 61140 standard)
- Color: grey RAL 7035
- Material: Technopolymer GWPLAST 120
- Impact resistance IK08
- Max. diameter of executable holes 37 mm
- Cover screws (no. and type): 4 isolators that can be hinged
- Application: Industrial applications
- Glow wire resistance: 650 °C
- Cover color: Transparent
- Lid: Screw-on low
- Temperature range: -25 +60 °C
- Type Material: Halogen free according to EN 60754-2
- Electrocod Code 0231
- Thermopressure with ball: 110 °C
- Screw tightening torque: 1.8 Newton metres
- Ware number 85381000
There are no reviews
Data sheet
- Type: Wall
- Shape: Rectangular
- Version: Transparent Cover
- Degree of protection: IP56
- Model: Smooth wall
