Gewiss external box with high lid IP56 190x140x140 GW44217
GEW GW44217
8011564013889

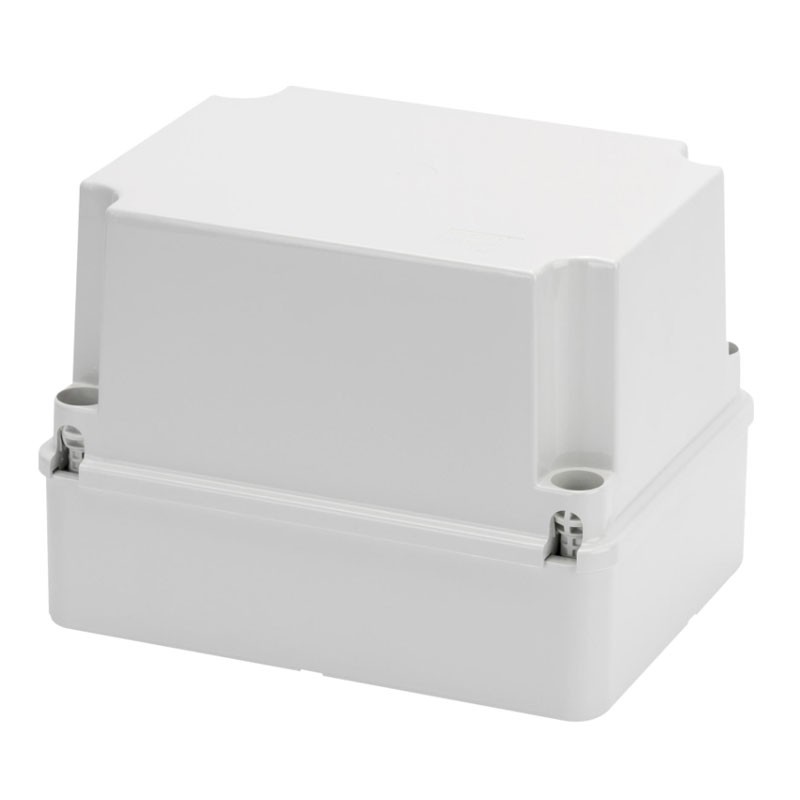

Gewiss junction box, with the following features:
- With high screw cover
- Degree of protection IP56

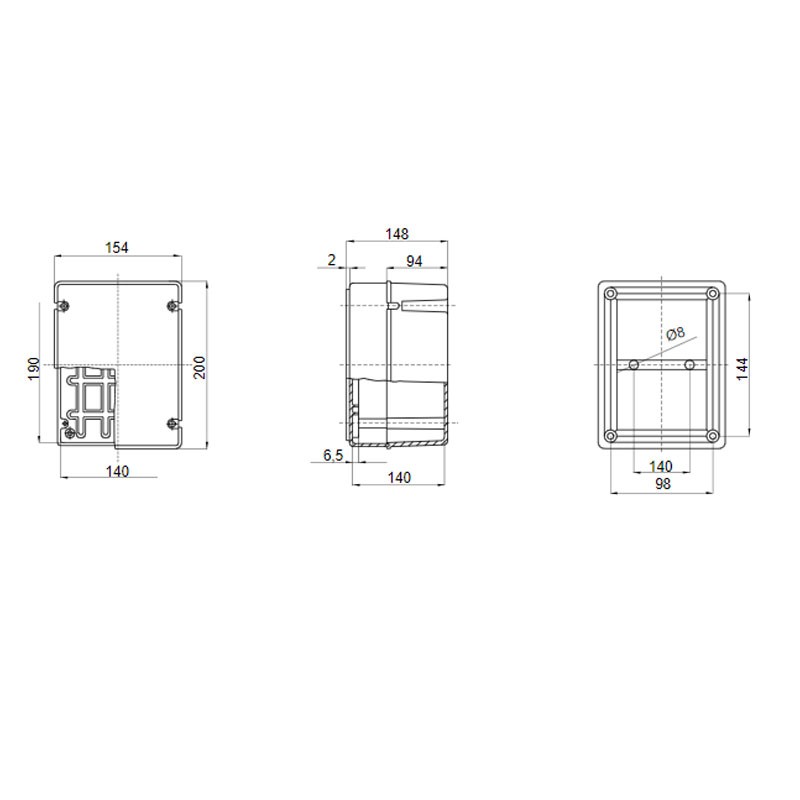

- Internal dimensions BxHxP (mm): 190x140x140
- Walls: smooth
- Color: grey RAL 7035
Accessories for restoring insulation GW44621, GW44622.
€19.38
Items Available: 121
: 35
Features:
- Gewiss Series
- Insulation class: II (according to IEC 61140)
- Material Technopolymer GWPLAST 75
- Impact resistance IK08
- Max. executable holes Ø: 37 mm
- Cover screws (no. and type): 4 hinged insulators that can be tampered with
- Application Ordinary drifts
- Glow wire resistance 650 °C
- Operating temperature: -25 +60 °C
- Type Material: Halogen free according to EN 60754-2
- Electrocod code 02211
- Thermopressure with ball 85 °C
- Screw tightening torque: 1.8 Newton metres
- Ware number 85381000
Merce conforme alla descrizione, perfettamente imballata. Spedizione e consegna velocissima.
Data sheet
- Type: Wall
- Shape: Rectangular
- Version: High cover
- Degree of protection: IP56
- Model: Smooth wall
