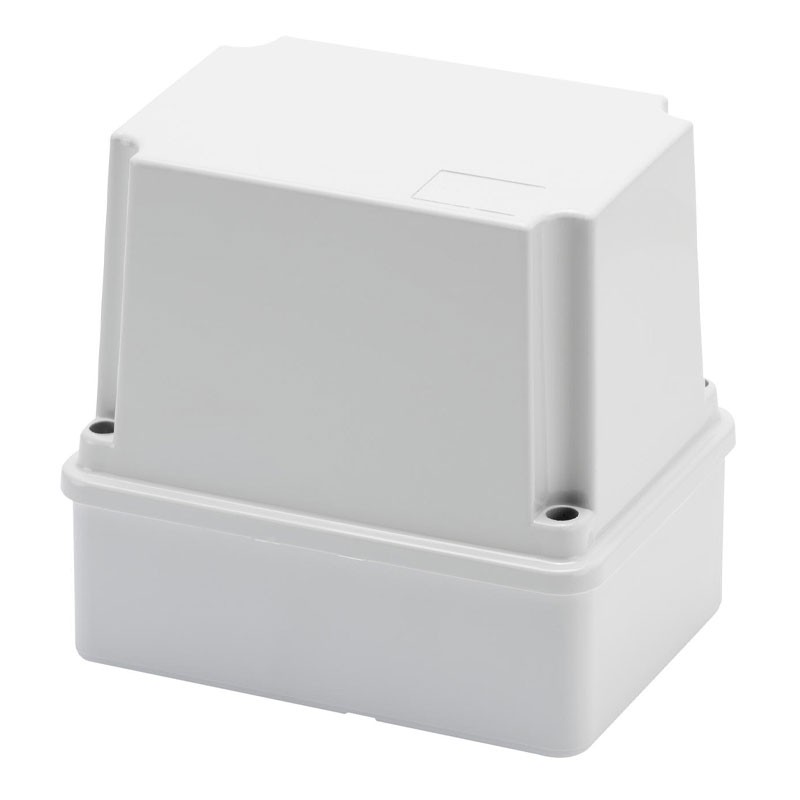

Gewiss junction box with deep screwed lid IP56 120x80x120 GW44215
GEW GW44215
8011564013865
Gewiss junction box with high screw cover, with the following characteristics:

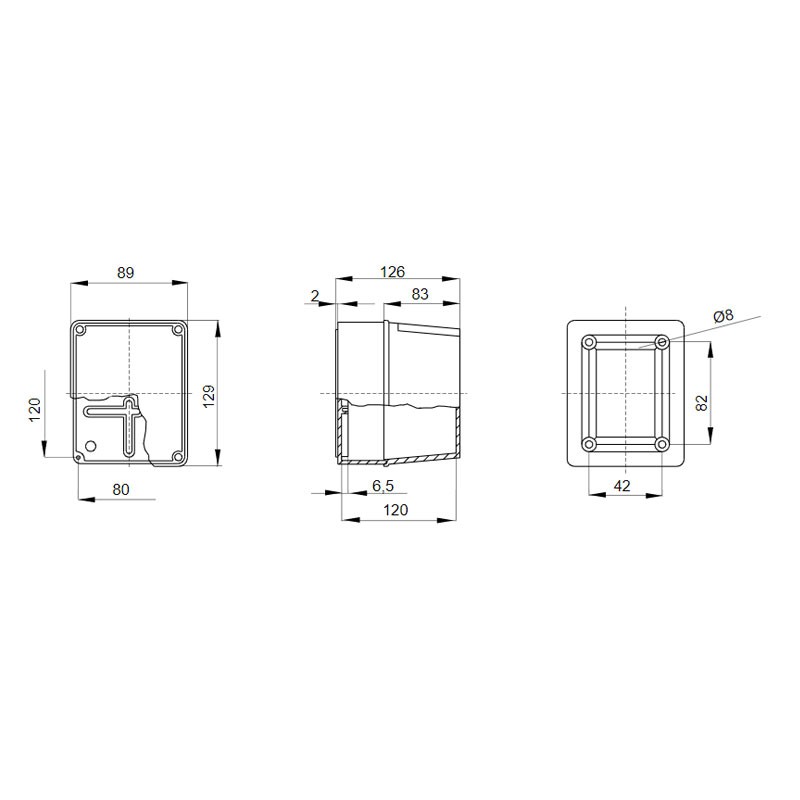

- Internal dimensions BxHxP (mm): 120x80x120
- IP degree IP56
- Cover: high screw
- Colour: RAL 7035 grey
Accessories for restoring insulation GW44622.
€7.64
Items Available: 70
: 11
Features:
- Gewiss Serie
- Insulation class: II (according to IEC 61140 standard)
- Material: Technopolymer : GWPLAST 75
- Impact resistance: IK08
- Max. diameter of holes: 29 mm
- Cover screws (no. and type): 4 - Stainless steel
- Application: Ordinary branches
- Glow wire test: 650 °C
- Temperature of use: -25 +60 °C
- Material type: Halogen free according to EN 60754-2 standard
- Electrocod: 02211
- Thermopressure with ball: 85 °C
- Screw tightening torque: 1 Newton/metre
- Walls: Smooth
Data sheet
- Type: Wall
- Shape: Rectangular
- Version: High cover
- Degree of protection: IP56
- Model: Smooth wall
