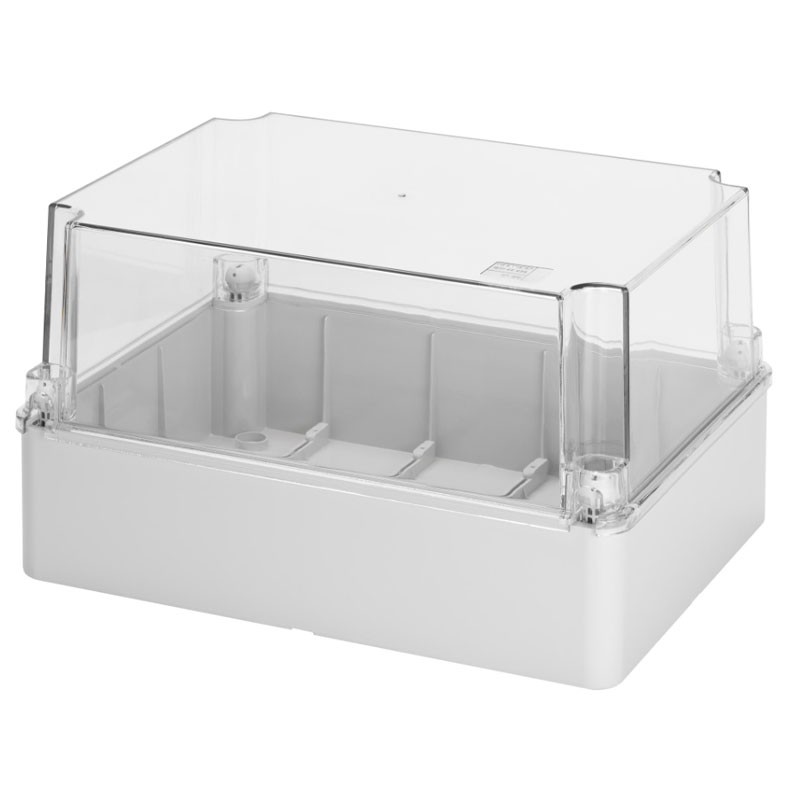

Gewiss external box with transparent cover 240x190x160 GW44438
GEW GW44438
8011564014176
Gewiss junction box, with the following characteristics:
- Suitable for electrical and electronic equipment

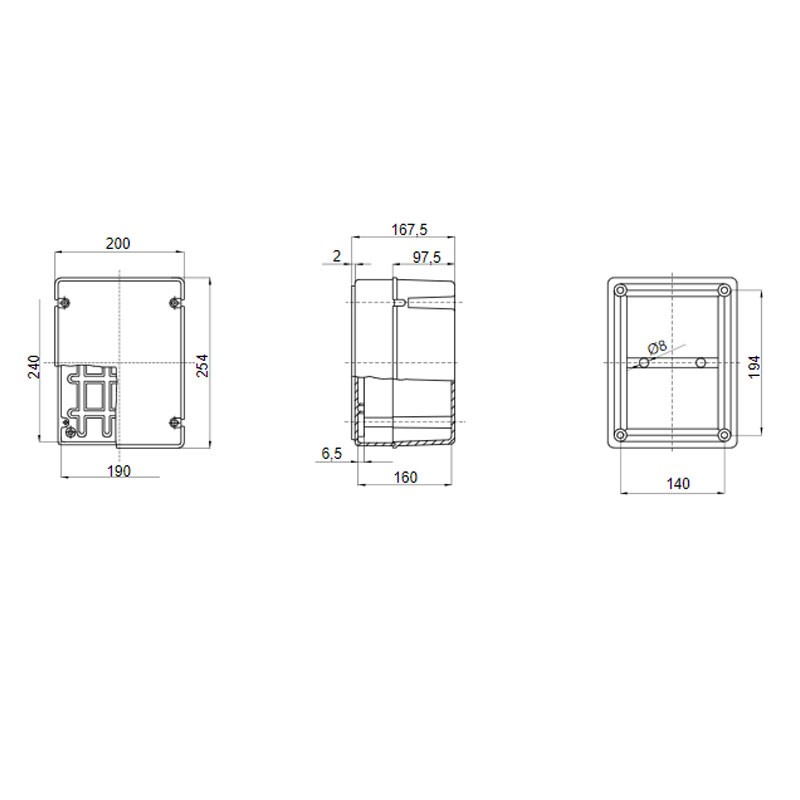

- Internal dimensions BxHxP (mm): 240x190x160
- Degree of protection: IP56
- Color: grey RAL 7035
- Lid: high transparent screw
- Smooth walls
Accessories for restoring insulation GW44621, GW44622.
€57.44
Items Available: 5
: 2
Made with high performance technopolymers. Suitable for ordinary shunt, special purpose and industrial applications.
Features:
- Gewiss series
- Insulation class: II (according to IEC 61140)
- Material Technopolymer GWPLAST 120
- Impact resistance IK08
- Ø max. executable holes 37 mm
- Cover screws (no. and type): 4 hinged insulators that can be lead-sealed
- Application: Industrial applications
- Glow wire resistance: 650 °C
- Cover color: transparent
- Operating temperature: -25 +60 °C
- Material Type: Halogen free according to EN 60754-2
- Electrocod code: 0231
- Thermopressure with ball: 110 °C
- Screw tightening torque: 1.8 Newton/meters
- Ware number: 85381000
There are no reviews
Data sheet
- Type: Wall
- Shape: Rectangular
- Version: Transparent Cover
- Degree of protection: IP56
- Model: Smooth wall
