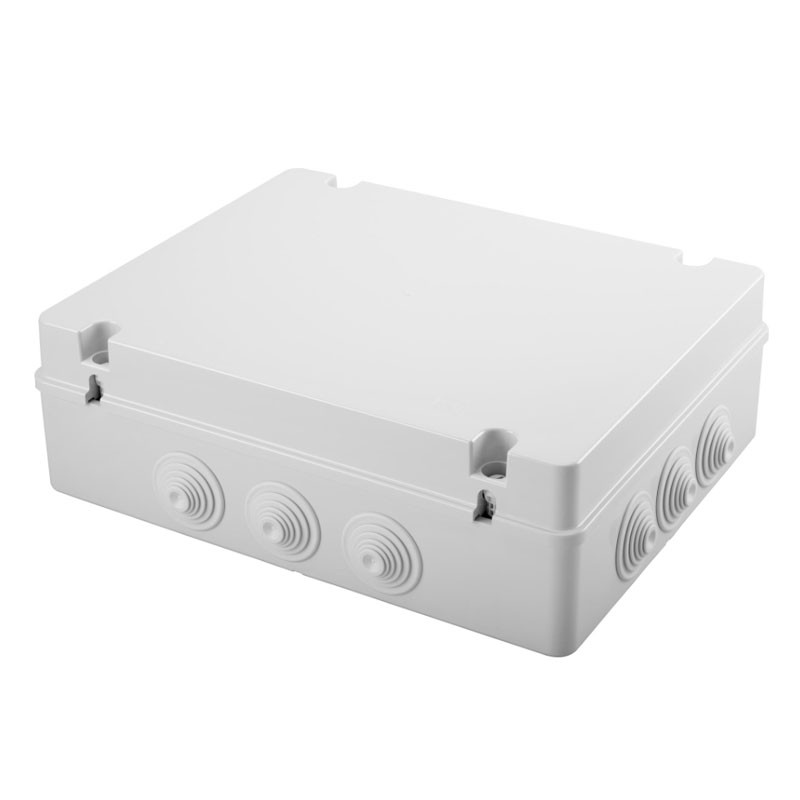

Gewiss external box with grommets IP55 380x300x120 GW44010
GEW GW44010
8011564013759
Junction box with low screw cover Gewiss, with the following features:
- IP55 degree of protection
- Cover screws (no. and type): 4 isolation hinged lockable
- Color: gray RAL 7035

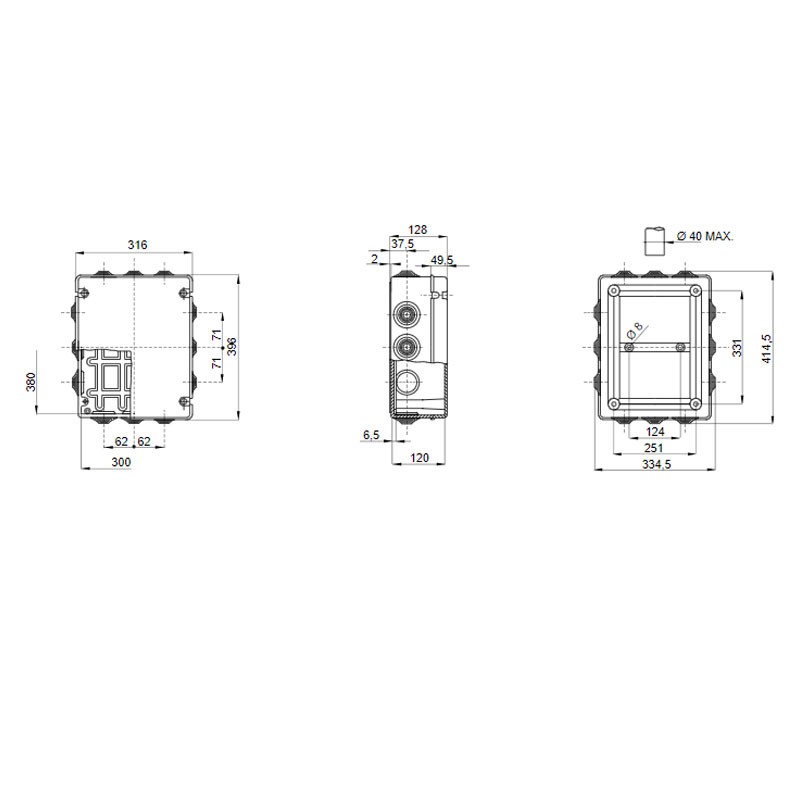

- Internal dimensions BxHxP (mm): 380x300x120
Accessories for restoring insulation: GW44621, GW44623
Gewiss external box with grommets IP55 380x300x120 GW44010
€64.82
€64.82
Tax included
Tax included
Pay in installments with Klarna
Items Available: 62
Wall-mounted weatherproof junction box, series 44 CE, complying with international standards IEC 60670-1 (CEI 23-48) and IEC 60670-22 (CEI 23-94) and made from high-performance technopolymers.
Features:
- Gewiss Series
- Insulation class: II (according to IEC 61140 standard)
- Material Technopolymer GWPLAST 75
- Impact resistance IK08
- Inputs No. of holes / Ø: 12 / 48
- Application: Ordinary branches
- Glow wire resistance: 650 °C
- Temperature of use: -25 +60 °C
- Type Material: Halogen free according to EN 60754-2
- Electrocod code: 02210
- Thermopressure with ball: 85 °C
- Screw tightening torque: 1.8 Newton/meters
- Walls: with grommets
- Ware number: 85381000
There are no reviews
Data sheet
- Type:
- Wall
- Shape:
- Rectangular
- Version:
- Standard
- Degree of protection:
- IP55
- Model:
- Waterproof with grommets
