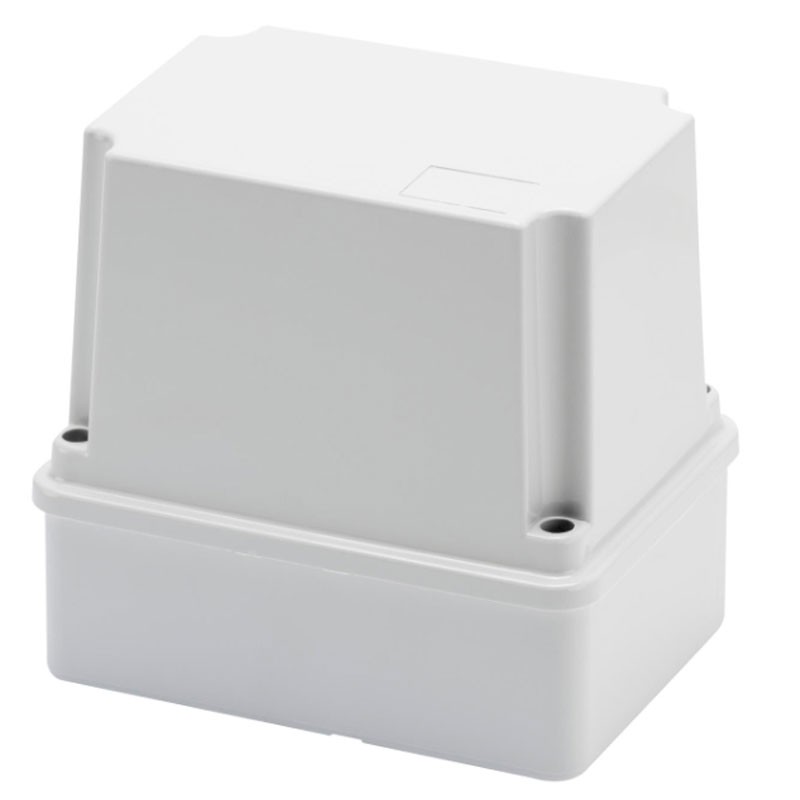

Gewiss external box with high lid IP56 150x110x140 GW44216
GEW GW44216
8011564013872
Gewiss junction box with high screw cover, with the following characteristics:

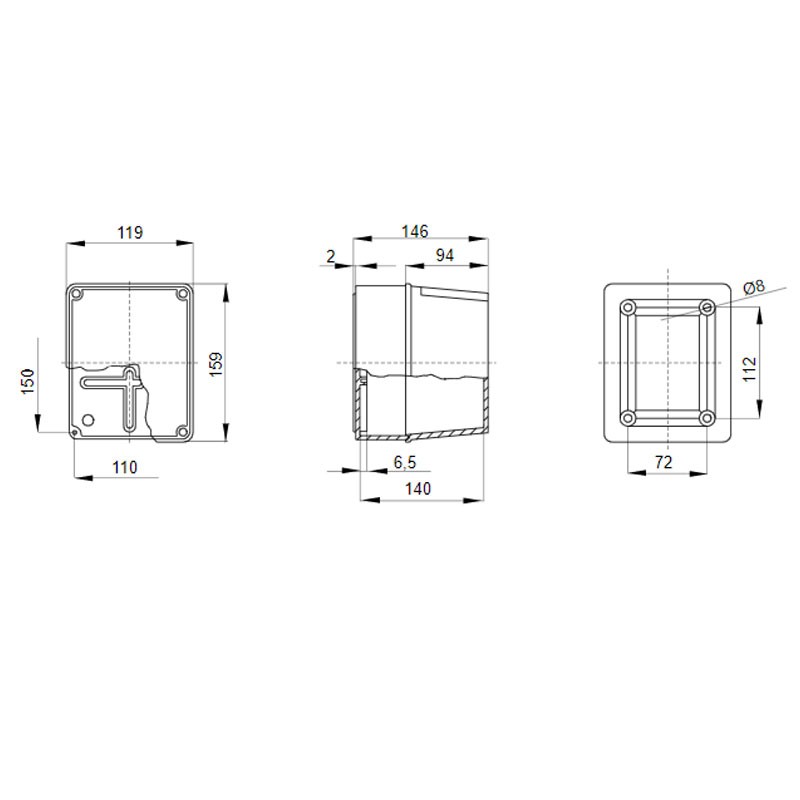

- Internal dimensions BxHxP (mm): 150 x 110 x 140
- Degree of protection IP56
- Color: RAL 7035 grey
Accessories for restoring insulation GW44622.
€11.44
Items Available: 244
: 48
Features:
- Gewiss Series
- Insulation class: II (according to IEC 61140)
- Technopolymer material: GWPLAST 75
- Impact resistance: IK08
- Max. diameter of executable holes: 29 mm
- Cover screws (no. and type): 4 - Stainless steel
- Application: Ordinary drifts
- Glow wire resistance: 650 °C
- Temperature of use: -25 +60 °C
- Type Material: Halogen free according to EN 60754-2 standard
- Electrocod code: 02211
- Thermopressure with ball: 85 °C
- Screw tightening torque: 1,2 Newton/meters
- Walls: smooth
- Ware number: 85381000
There are no reviews
Data sheet
- Type: Wall
- Shape: Rectangular
- Version: High cover
- Degree of protection: IP56
- Model: Smooth wall
