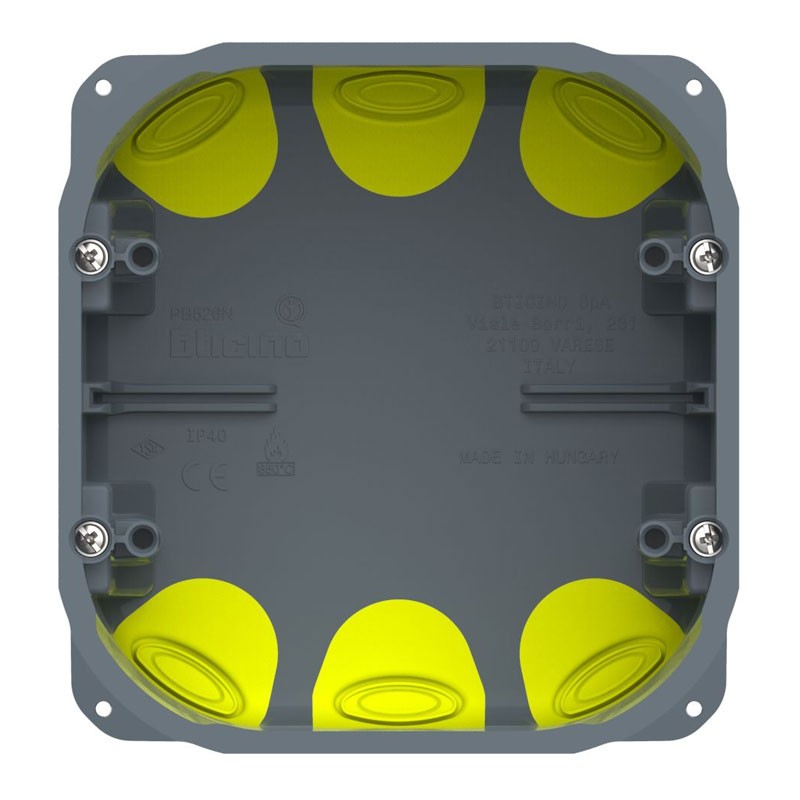

Bticino 3+3 Recessed Box for Plasterboard PB526NN
BTI PB526NN
8005543772522
PB526NN 3+3 module recessed box for plasterboard: airtight and secure installation for switch ranges, ideal for low energy buildings.
- Recessed box 3+3 modules - Dimensions 111 x 116 x 52 mm.
- For plasterboard and double-slab walls
- Airtight elastic membrane for maximum energy efficiency
- Universal, Compatible with standard switch ranges also non-Bticino
- Supplied with Phillips No.1 screws and protective cap
- Inputs: 6 x Ø20-25 mm
€4.57
Items Available: 87
: 27
PB526NN flush-mount box: Perfect for installation in lightweight walls
The PB526NN flush-mount box is designed for installation of 3+3-module civil series in plasterboard and double slab walls. Made of high-strength resin, it is equipped with an airtight elastic membrane that perfectly fits electrical conduits and cables, ensuring airtightness and contributing to the energy efficiency of rooms.
Reduced consumption and living comfort
Thanks to the perfect adhesion of the membrane to the corrugated pipe, this box makes it possible to limit heat loss in the walls, helping to reduce energy consumption by up to 6 kWh/m²/year. An ideal feature for high energy performance buildings, passive housing, and low-impact renovations.
Robust construction and easy installation
The PB526NN has a compact yet capacious structure (116 x 111 x 52 mm) and is supplied with Phillips No.1 Phillips head screws, 28 mm shank and protective cap. Installation is quick and secure, with the option of fastening by screws or metal staples, depending on site requirements.
Wiring versatility
The box is equipped with 6 inputs:
- 6 inputs Ø20-25 mm
Technical Characteristics Bticino Recessed Box
| Parameter | Value |
|---|---|
| Material | Resin with airtight elastic membrane |
| Compatibility | Supports and plates 3+3 modules |
| Screws included | Phillips head (Phillips No.1), 28mm shank, with cap |
| Energy benefit | Reduced consumption up to 6 kWh/m²/year |
| Mounting | For plasterboard or double-slab walls |
| Dimensions (W x H x D) | 116 x 111 x 52 mm |
| Fixing | metal screws and staples |
| Supported switch ranges | Universal (Bticino, Vimar, etc.) |
| Recommended applications | Homes, offices, technical rooms |
Conforme à la description, pratique pour placer 6 modules
Prodotto eccezionale, robusto e di grande aiuto nell'installazione con l'inserimento dei corrugati, le membrane in gomma li tengono ben saldi.
Data sheet
- Type: Recessed
- Shape: Rectangular
