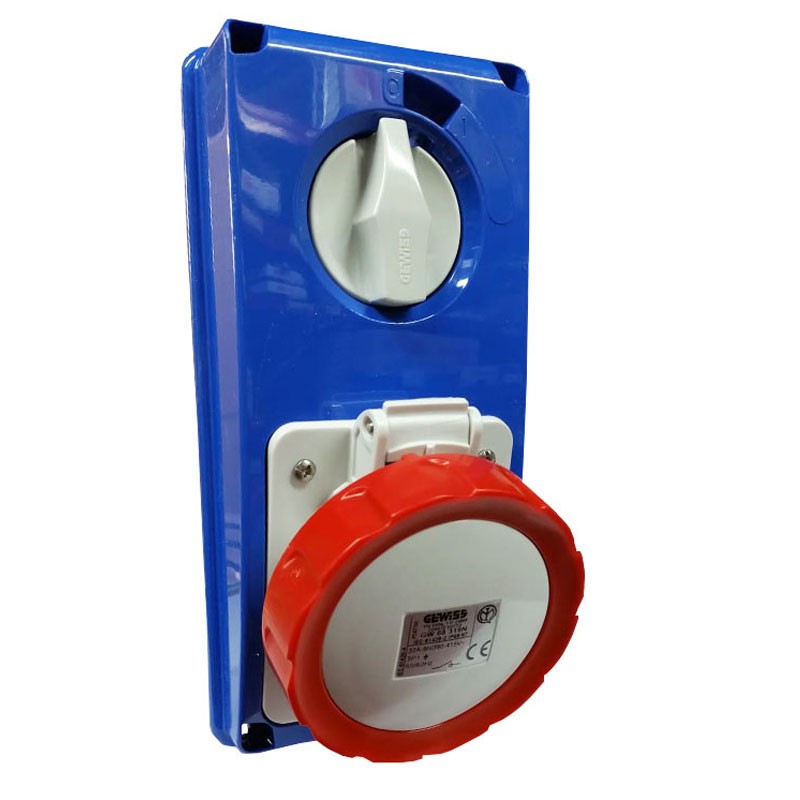

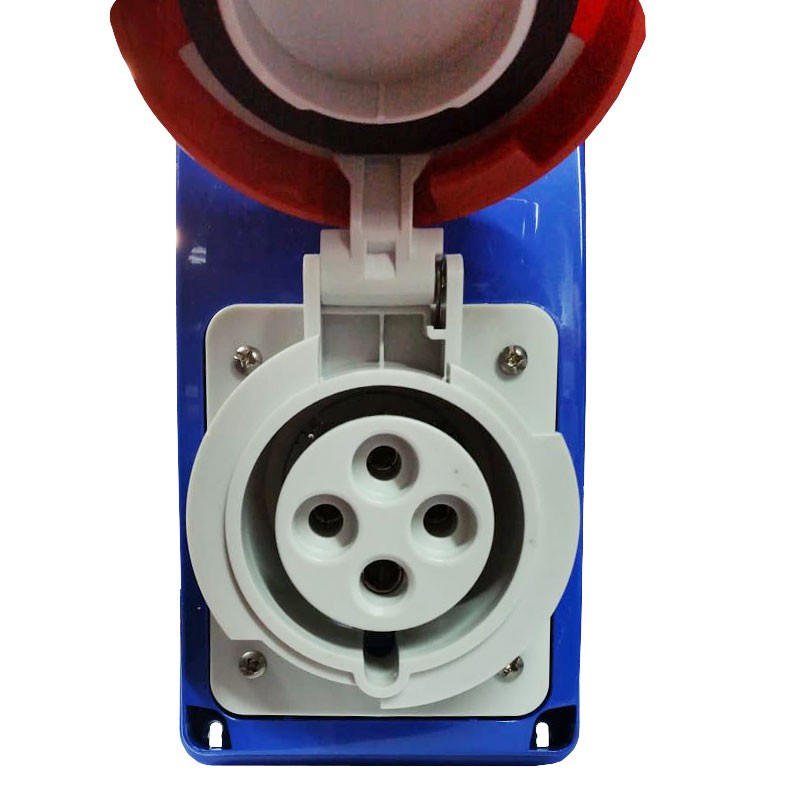

Gewiss vertical interlocked socket 3P+E 32A IP67 GW66319N
GEW GW66319N
8011564741744
Gewiss vertical interlocked fixed socket, with the following characteristics:
- Rated voltage 380 - 415V
- Rated current (In) IB socket: 32A
- Rated current 32A
- Number of poles: 3P+T
- Frequency 50/60 Hz
- Protection degree IP67
€69.30
Items Available: 78
: 10
Features:
- Gewiss Series
- Without bottom
- Without fuse holder base
- Typology: vertical
- Thermopressure with ball: 125 °C
- Shock resistance: IK08
- Operating temperature: -25 +40 °C
- Electrocod code: 2222
- Glow wire test: 850 °C
- Color: red
- Ware number 85366990
There are no reviews
Data sheet
- Type: Interlocked switch socket outlets
- Voltage: 380/415VAC
- Poles: 3P+E
- Degree of protection: IP67
- Installation: Wall/Recessed
- Amps: 32A
