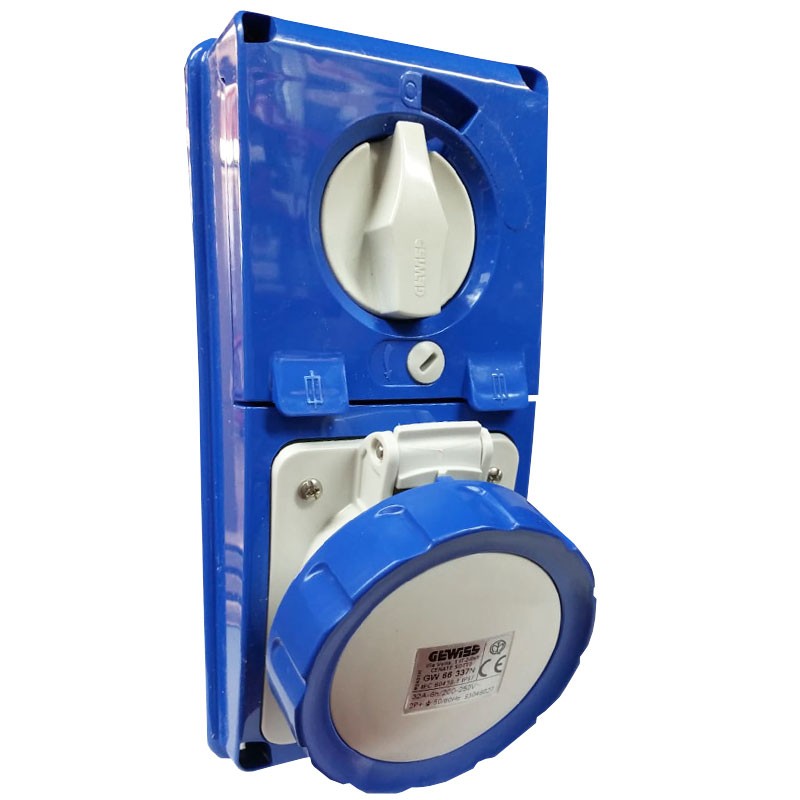

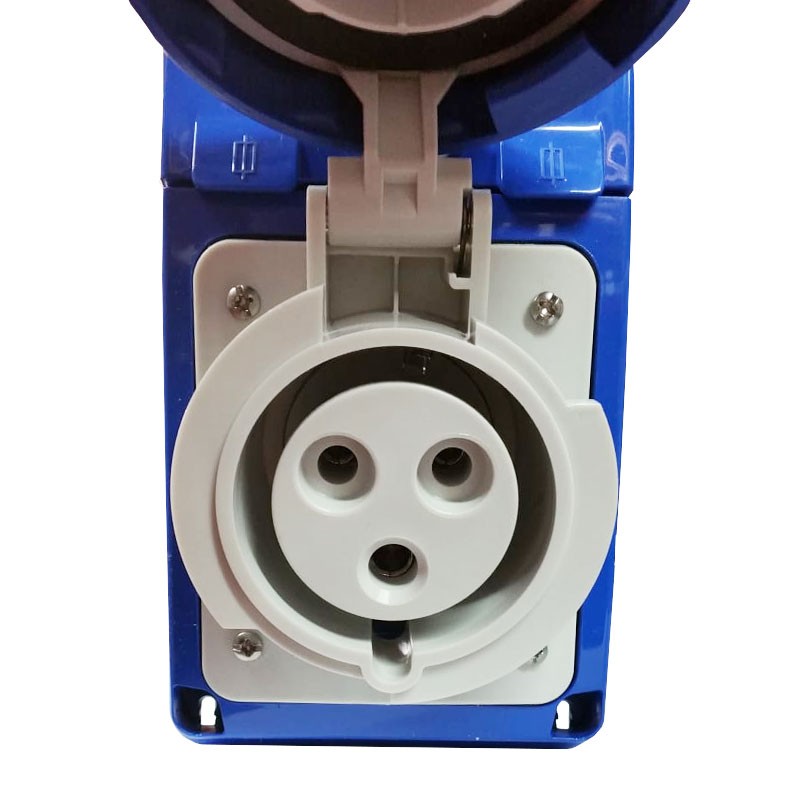

Gewiss vertical interlocked socket 2P+E 32A IP67 GW66337N
GEW GW66337N
8011564741928
Gewiss vertical interlocked fixed receptacle with the following characteristics:
- Rated insulation voltage (Ui) 500V
- Rated voltage: 200-250V
- Rated current (In) IB socket: 30A
- Rated current 32A
- Number of poles: 2P+T
- Frequency: 50/60 Hz
- Protection degree IP67
€99.70
Items Available: 97
: 13
Features:
- Gewiss Series
- Rated short-circuit current (Icc): 10 kA
- Rated impulse withstand voltage: 4 kV
- Without bottom
- Protection with fuse holder base
- Fuse type: Ø 10,3x38 mm
- Fuse breaking capacity: > 50 kA
- Typology: vertical
- Reference h: 6
- Thermopressure with ball: 125 °C
- Shock resistance: IK08
- Operating temperature -25 +40 °C
- Electrocod code: 2222
- Glow wire test: 850 °C
- Color: blue
- Weight: max. 0,9 Kg
- Ware number 85366990
There are no reviews
Data sheet
- Type: Interlocked switch socket outlets
- Voltage: 220/250VAC
- Poles: 2P+E
- Degree of protection: IP67
- Installation: Wall/Recessed
- Amps: 32A
