Gewiss panel 14 modules with 3 flanges for industrial sockets GW68010N

Gewiss
GEW GW68010N 8011564744813

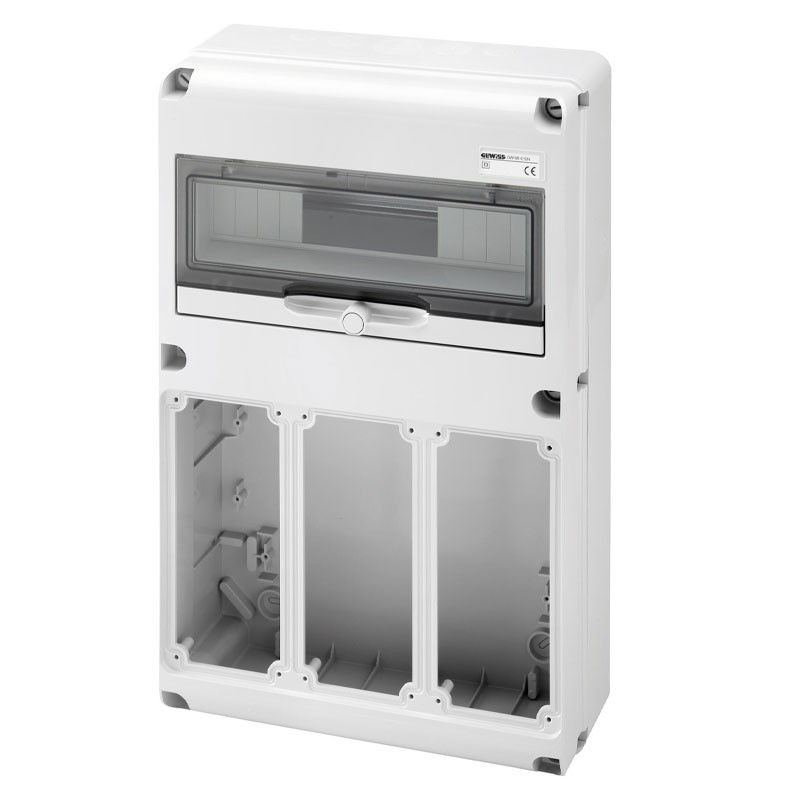

Gewiss switchboard, 14 modules with 3 vertical interlocked flanges.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Gewiss panel 14 modules with 3 flanges for industrial sockets GW68010N
€116.70
€116.70

€116.70
Tax included
Calculate shipping cost

€116.70

Buy it within and receive it from Tuesday, 23 December
Two-year warranty
Easy return within 14 days

Features:

  • Gewiss Series
  • Power dissipation A: 24W
  • Power dissipation B: 64W
  • Color: RAL 7035 gray
  • Degree of protection: IP65
  • Number of sockets: 3 IB vertical 16/32 A IP67
  • Type of installation: wall-mounted
  • Regulatory compliance: EN 62208
  • Glow wire resistance: 650 °C
  • Impact resistance: IK08
  • Operating temperature -25 +40 °C
  • Thermopressure with ball: 70 °C
  • Insulation class: II
  • Version: vacuum
  • Ware number: 85381000

Data sheet

Type:
Frameworks for distribution
Degree of protection:
IP65
Installation:
Wall-mounted
