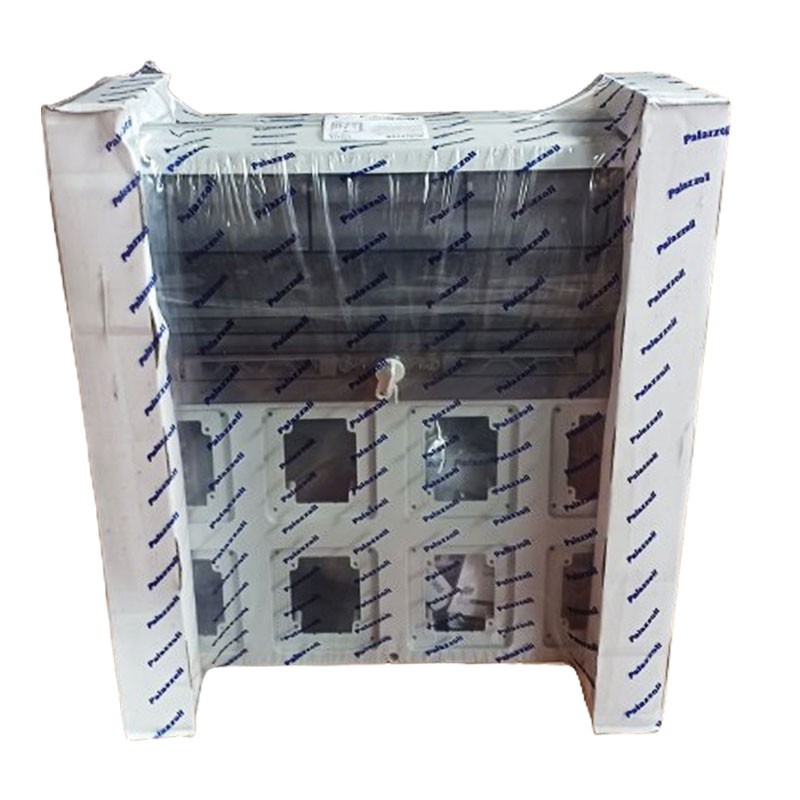

Palazzoli finished panel for 8 outlets IP66 461x456x160 mm 579828
PAL 579828
8014950037797

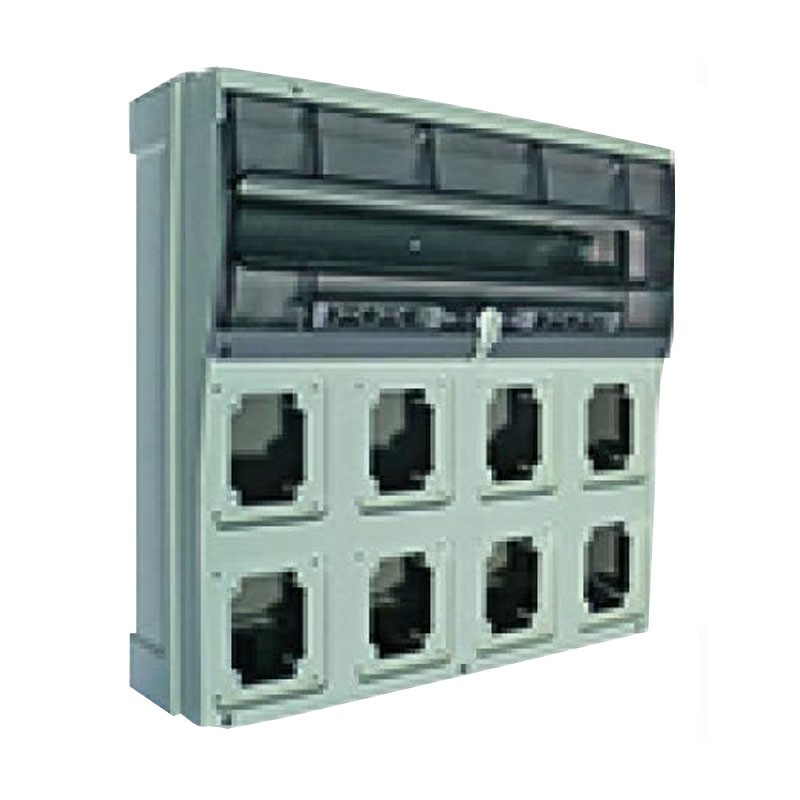

Panelboard with transparent door Palazzoli TOP TER series for installation of 8 fixed sockets with the following characteristics:
- Rated insulation voltage: 690V
- Power dissipation: 70W
- Material: Technopolymer
- Colour: Grey
- Installation: Wall-mounted
- Number of DIN rail modules: 22
- Degree of protection: IP66

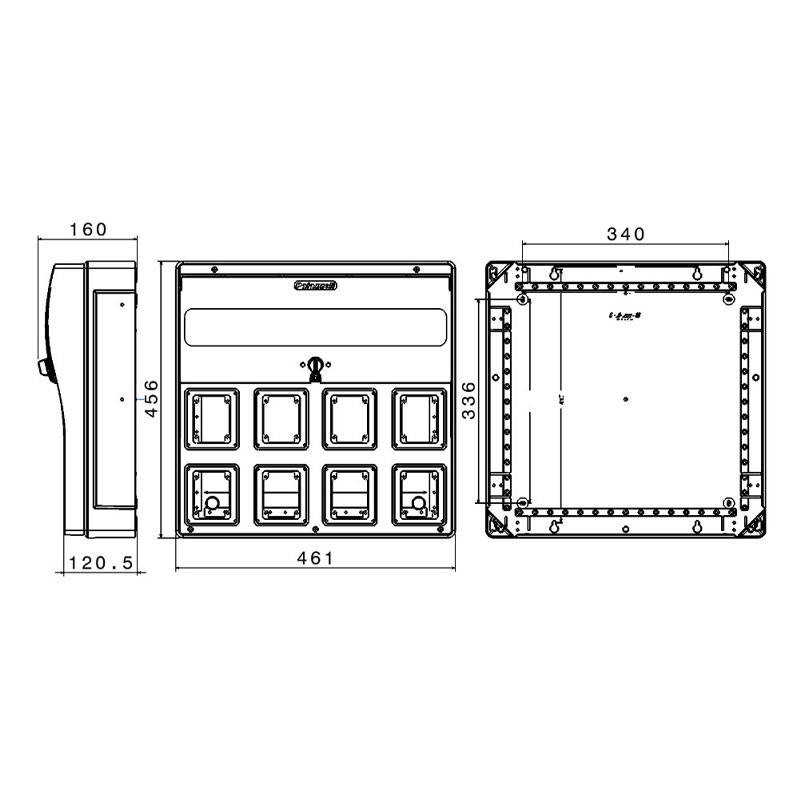

- Dimensions: 461x456x160 mm
€144.06
Items Available: 2
Features:
- Insulation class: II
- Rated insulation voltage: 690V
- Power dissipation: 70W
- Material: Technopolymer
- Color: Gray
- Installation: Wall-mounted
- Number and type of latches: 1 rotary lever latch
- Number of DIN rail modules: 22
- Degree of protection: IP66
- Impact Resistance: IK08
- Operating Environment Temperature: -25/+50 degrees
- Storage Environment Temperature: -30/+70 degrees
- Dimensions: 461x456x160 mm
- Weight: 3.394 kg
- Maximum allowable load: Mounting surfaces: 10 kg On the doors: 8 kg - On the bottom: 0 kg
There are no reviews
Data sheet
- Type: Frameworks for distribution
- Degree of protection: IP66
