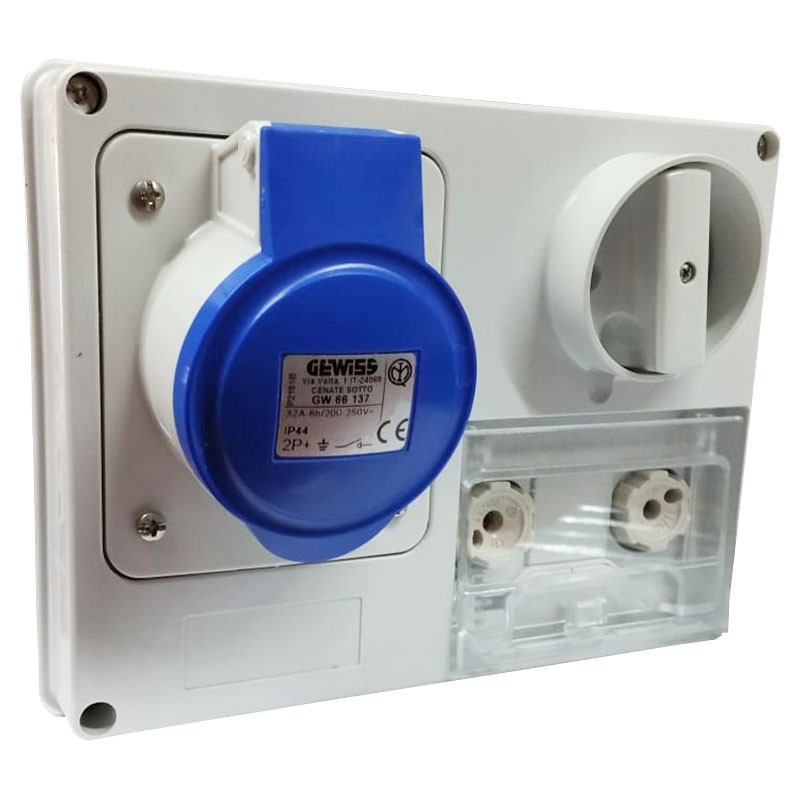

Gewiss interlocked socket 2P+E 32A IP44 220V without box GW66137
GEW GW66137
8011564029439
Gewiss fixed interlocked socket, with the following characteristics:
- Rated voltage: 200-250V
- Number of poles: 2P+T
- Frequency: 50/60 Hz
- Rated current 32A
- Degree of protection IP44
- Without base
- With fuse holder base (E18)
- Typology: horizontal
€92.18
Items Available: 22
: 2
Features:
- Gewiss Series
- Thermopressure with ball: 125 °C
- Shock resistance: IK08
- Operating temperature: -25 +40 °C
- Protection: Fuse holder base (CBF)
- Fuse breaking capacity: > 50 kA
- Electrocod code 2220
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Color: blue
- Reference h: 6
- Ware number 85366990
There are no reviews
Data sheet
- Type: Interlocked switch socket outlets
- Voltage: 220/250VAC
- Poles: 2P+E
- Degree of protection: IP44
- Installation: Wall/Recessed
- Amps: 32A
