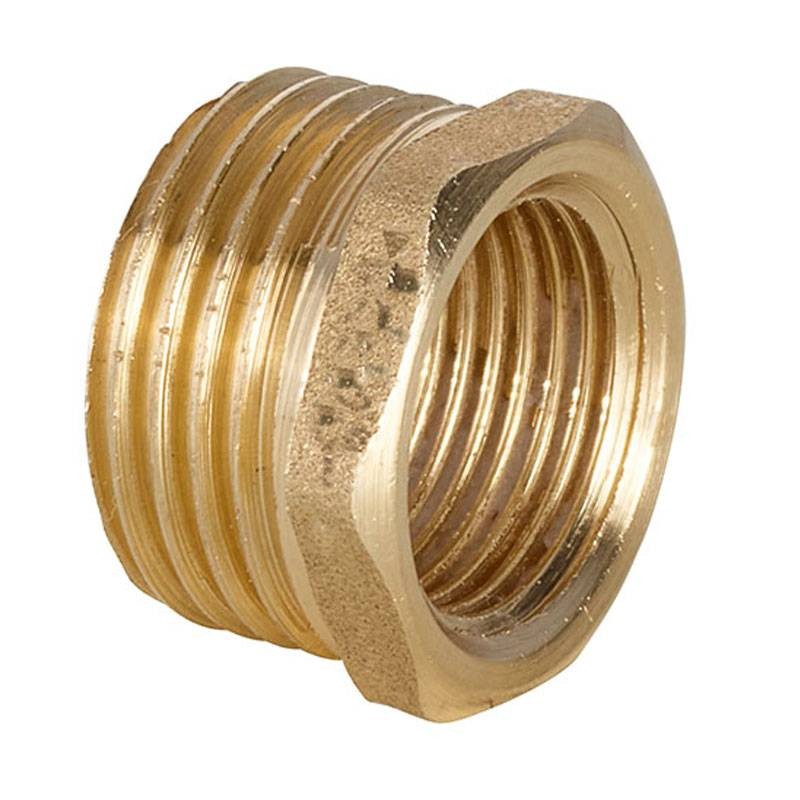

Reduced sleeve for IBP pipes M/F 1 1/4 x 1 brass 8241 M10008000
IBP 8241 M10008000
5052740170715
Reduced sleeve for IBP Banninger Series 8000M pipes with the following features:
- Connection: Male/Female
- Diameter: 1 inch 1/4 x 1 inch
- Material: Brass
Series 8000 M is a brass fitting system with a cylindrical thread.
€2.34
Items Available: 78
: 40
Main advantages:
- Brass screw-on fittings
- Cylindrical threads
- Use of anaerobic sealants or Teflon is recommended
- Avoid applying excessive torque during installation
Applications: Sanitary Water, Drinking Water, Heating, Cooling, Compressed Air (oil-free), Solar.
Operating parameters:
- Sanitary Water, Drinking Water, Heating: -20 / +110 °C at 25 bar ? 3/4, 16 bar ? 2 bar, 10 bar ? 4
- Cooling: 0/ +30°C at 25 bar ? 3/4, 16 bar ? 2 bar, 10 bar ? 4
- Compressed air (oil-free): 0/ +30°C at 10 bar
- Solar: -20 / +110 °C at 6 bar
There are no reviews
Data sheet
- Type: Sleeves
- Connection: M/F
- Connections: 1 inch
- Material: Brass
1-1/4 inches
