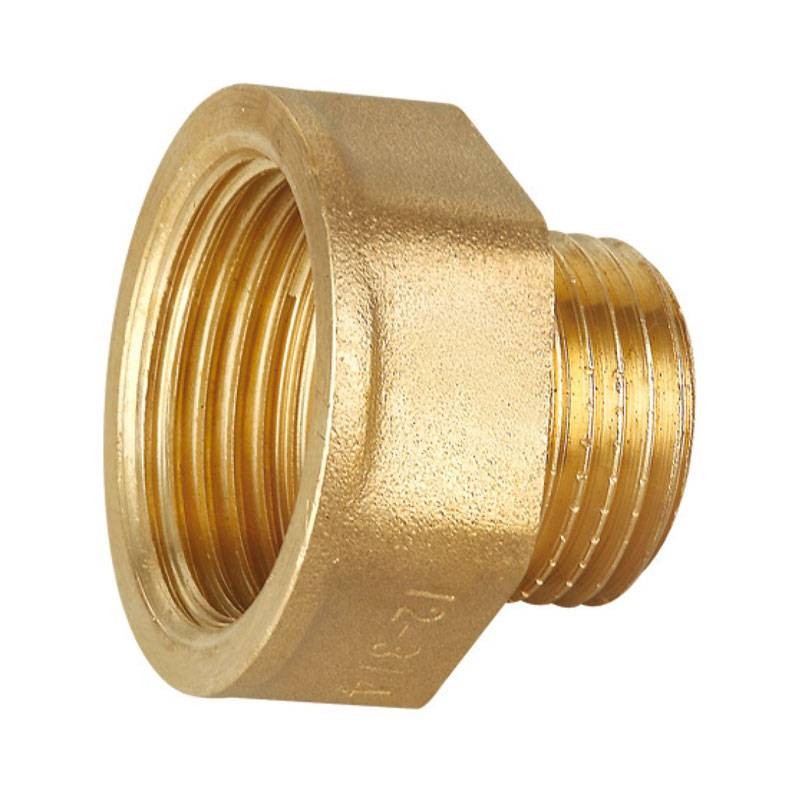

Reduced sleeve for IBP pipes F/M 1 1/2 x 1 1/4 brass 8243 M12010000
IBP 8243 M12010000
5052740209811
Reduced sleeve for IBP Banninger Series 8000M pipes with the following features:
- Connection: Female/Male
- Diameter: 1 inch 1/2 x 1 inch 1/4
- Material: Brass
Series 8000 M is a brass pipe fitting system with a cylindrical thread.
€5.03
Items Available: 17
: 14
Main advantages:
- Brass screw-on fittings
- Cylindrical threads
- Use of anaerobic sealants or Teflon is recommended
- Avoid applying excessive torque during installation
Applications: Sanitary Water, Drinking Water, Heating, Cooling, Compressed Air (oil-free), Solar.
Operating parameters:
- Sanitary Water, Drinking Water, Heating: -20 / +110 °C at 25 bar ? 3/4, 16 bar ? 2 bar, 10 bar ? 4
- Cooling: 0/ +30°C at 25 bar ? 3/4, 16 bar ? 2 bar, 10 bar ? 4
- Compressed air (oil-free): 0/ +30°C at 10 bar
- Solar: -20 / +110 °C at 6 bar
There are no reviews
Data sheet
- Type: Sleeves
- Connection: M/F
- Connections: 1-1/2 inches
- Material: Brass
1-1/4 inches
