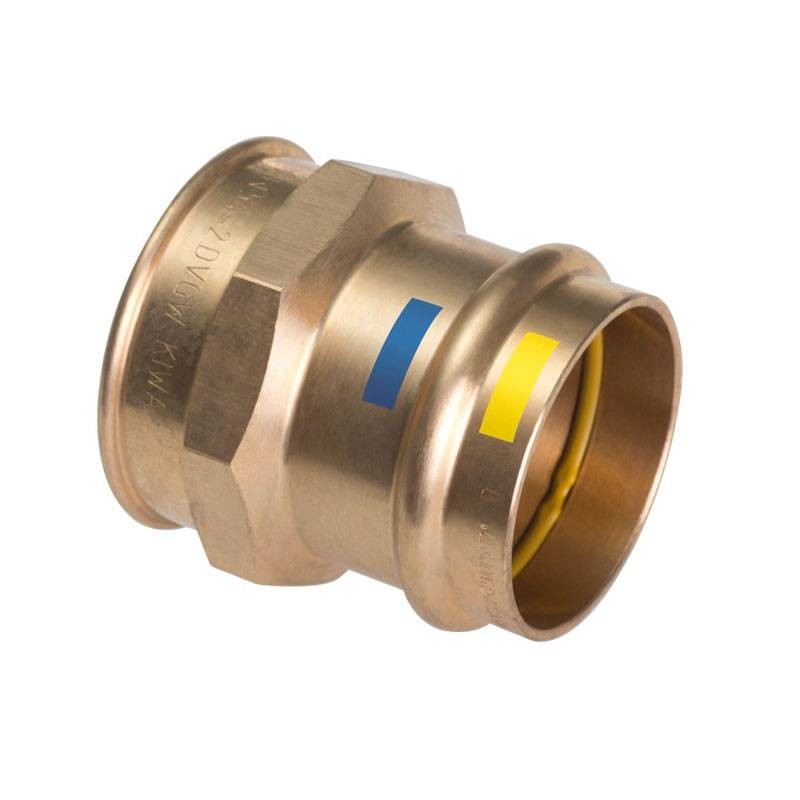

IBP threaded sleeve for water and gas F/M D 12 mm x 1/2 P14243G01204000
IBP P14243G01204000
IBP Banninger B One threaded sleeve for water and gas with the following features:
- Connection: Male/Female
- Diameter: 12 mm x 1/2
- Material: Bronze
B One fittings are quick and easy to install and optimize installation time. A single pressing cycle allows for a permanent, secure and guaranteed joint over time. Installation requires no special permits and equipment and is suitable for Water and Gas.
€4.73
Items Available: 20
: 18
B One fittings have two yellow and blue markings on the fitting body: yellow indicates that the fitting is safe for gas applications, this is also supported by the DVGW and KIWA marks; blue indicates suitability for hot and cold water applications.
Key Benefits:
- One fitting for Water and Gas
- Easy to install, reduces time and cost
- Goodbye to open flame, hot work permit and nitrogen insufflation
- System to identify unpressurized terminals (0.1 to 6.0 bar)
- Made in accordance with EN 1254-7
- No consumables required for soldering or brazing
Applications:
- Natural gas, LPG, fuel oil systems
- Hot and cold water systems
- Heating systems
- District heating
- Rainwater harvesting systems
- Compressed air (Classes 1-3)
- Industrial and process water
- Vacuum piping
- Shipbuilding piping
There are no reviews
Data sheet
- Diameter: 12mm
- Type: Sleeves
- Connection: M/F
- Model: Threaded
- Connections: 1/2 inches
- Material: Bronze
