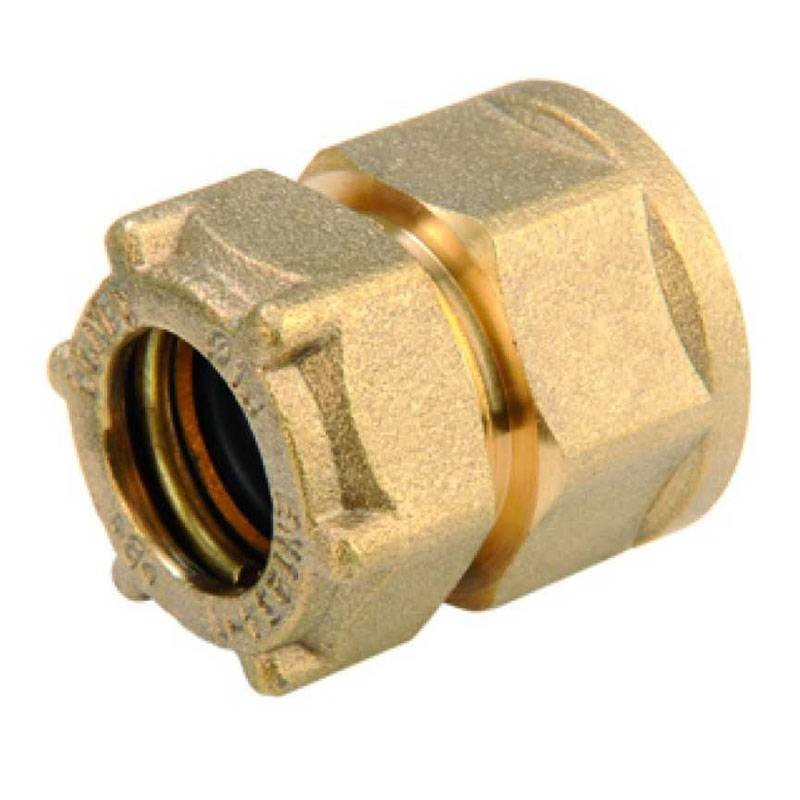

IBP threaded sleeve for water and gas F/F 10 mm x 3/8 IG303 01003000
IBP IG303 01003000
5052740023301
IBP Banninger Conex O-Ring threaded sleeve for water and gas with the following characteristics:
- Connection: Female/Threaded Female
- Diameter: 10 mm x 3/8
- O-Ring Seal
- Material: Brass
€2.22
Items Available: 52
: 29
Features:
- Tapered threads according to EN 10226-1
- Metal seal on the thread: the use of anaerobic sealants or Teflon is recommended
- Avoid applying excessive torque during installation
- Mandatory internal reinforcement bushing in conjunction with annealed copper tubing (R220)
- Fitting material Brass CW617N-DW
- Fittings reference standard EN 1254-2, EN 1254-4
- O-Ring material EPDM black according to EN681-1 for water, HNBR yellow according to EN549 for gas
- Threaded ends according to EN 10226-1
- Compatible piping: Copper according to EN 1057, Stainless Steel according to EN 10312, Carbon Steel according to EN 10305-3
There are no reviews
Data sheet
- Diameter: 10mm
- Type: Sleeves
- Connection: F/F
- Model: Threaded
- Connections: 3/8 inches
- Material: Brass
