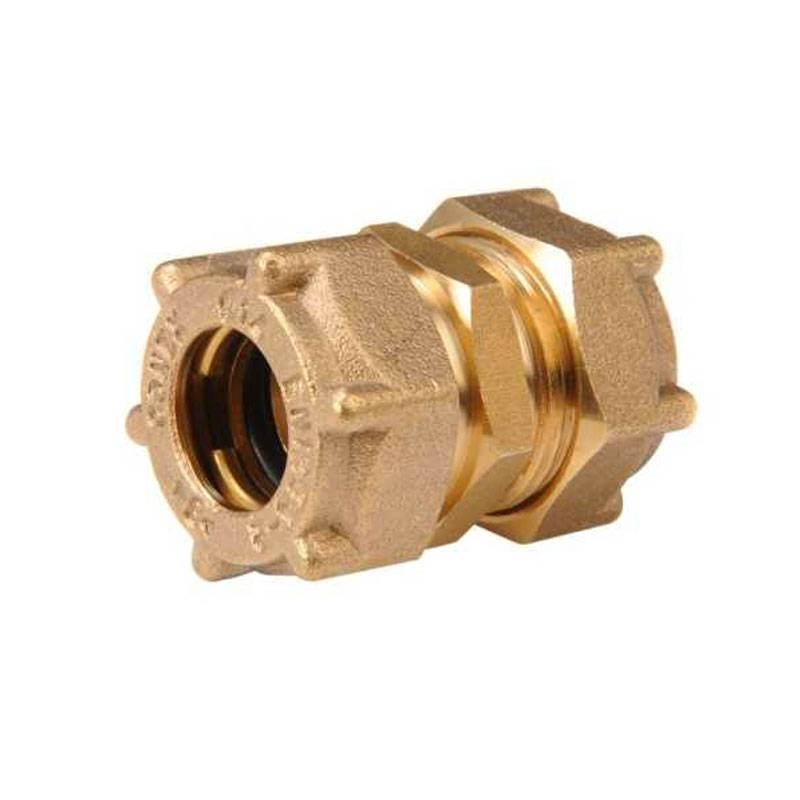

IBP straight sleeve for water and gas F/F D 22 mm brass IG301 02200000
IBP IG301 02200000
5052740017607
IBP Bänninger Conex O-Ring straight sleeve for water and gas with the following characteristics:
- Coupling: Female/Female
- Diameter: 22 mm
- O-ring seal sleeve
- Material: Brass
€8.93
Items Available: 121
: 63
Characteristics:
- Tapered threads according to EN 10226-1
- Metal seal on the thread: the use of anaerobic sealants or Teflon is recommended
- Avoid applying excessive torque during installation
- Mandatory internal reinforcement bushing in conjunction with annealed copper tubing (R220)
- Fitting material: brass CW617N-DW
- Fittings reference standard: EN 1254-2, EN 1254-4
- O-Ring material EPDM black according to EN681-1 for water, HNBR yellow according to EN549 for gas
- Threaded ends according to EN 10226-1
- Compatible piping: Copper according to EN 1057, Stainless Steel according to EN 10312, Carbon Steel according to EN 10305-3
There are no reviews
Data sheet
- Diameter: 22mm
- Type: Sleeves
- Connection: F/F
- Model: Straight
- Material: Brass
