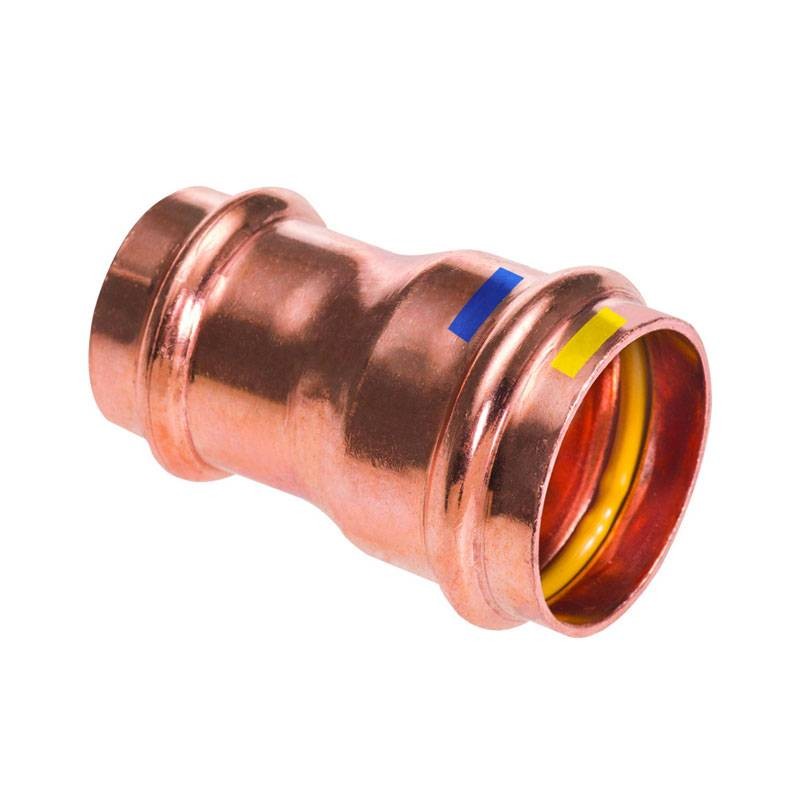

IBP reduced sleeve for water and gas F/F D 28x22 mm copper P15240 02822000
IBP P15240 02822000
IBP Banninger B One reduced sleeve for water and gas with the following characteristics:
- Connection: Female/Female
- Diameter: 28x22 mm
- Material: Copper
B One fittings are quick and easy to install and optimize installation time. A single pressing cycle allows for a permanent, secure and guaranteed joint over time. Installation requires no special permits and equipment and is suitable for Water and Gas.
€13.13
Items Available: 7
: 4
Main advantages:
- One fitting for Water and Gas
- Easy to install, reduces time and cost
- Goodbye to open flame, hot work permit, and nitrogen insufflation
- System to identify unpressurized terminals (0.1 to 6.0 bar)
- Made in accordance with EN 1254-7
- No consumables required for soldering or brazing
Fitting marking: B One fittings have two yellow and blue markings on the fitting body: yellow indicates that the fitting is safe for gas applications, this is also supported by DVGW and KIWA markings; blue indicates suitability for hot and cold water applications.
Applications:
- Natural gas, LPG, fuel oil systems
- Hot and cold water systems
- Heating systems
- District heating
- Rainwater harvesting systems
- Compressed air (Classes 1-3)
- Industrial and process water
- Vacuum piping
- Shipbuilding piping
There are no reviews
Data sheet
- Diameter: 22mm
- Type: Sleeves
- Connection: F/F
- Model: Straight
- Material: Copper
28mm
