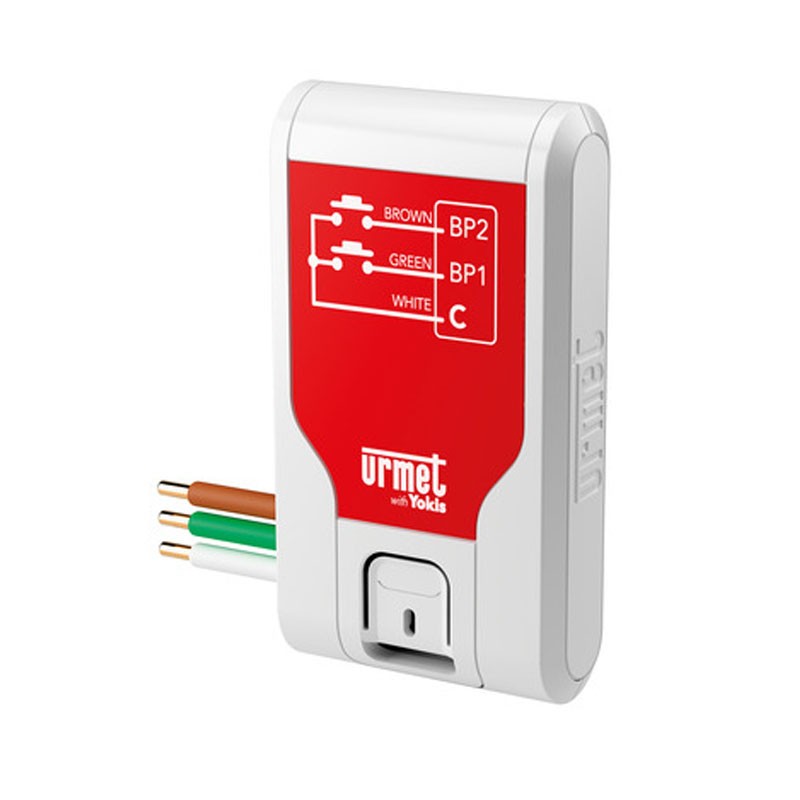

Urmet E2BP-UP Yokis UP flush mount 2-channel radio transmitter 4820390
UTD 4820390
8021156076765
Urmet E2BP-UP Yokis UP flush-mounted 2-channel independent radio transmitter capable of driving all types of receivers in the Yokis UP range (relays, dimmers, roller shutter modules) and can handle not only direct commands, but also centralization commands and scenario activation.
€37.23
Items Available: 8
Frequently bought together
Overview:
- Thanks to Zigbee radio technology, it is also possible to transmit commands to modules that are not directly reachable by the transmitter, taking advantage of the repetition of the command by the actuator modules present, and to transmit commands to groupings of modules of different types (relays, dimmers, shutter actuators, etc.).
- It can be installed with any civil series on the market and can be placed on the bottom of the flush-mounted box or on junction boxes
- It is easy to configure: either by the installer, via directly connected button or from the UP2Pro App, or by the user, from the YnO UP App
- It is possible to duplicate transmitters by copying the settings of the first one on the next ones, without intervening on the receiver modules
- Can be operated by push button, switch (if receivers are radio step relay modules) or by a potential-free contact
- The transmitter is powered by a standard CR2032 battery (average battery life greater than 5 years).
Features:
- Power supply: battery; CR2032 lithium type
- Battery life: > 7 years
- Available channels: 2
- Number of receivers/channel: 4 in direct mode; unlimited in centralized/scenario mode
- Range: 250m in unobstructed field of view. Range reduction in the presence of metal elements, crossing walls or bulkheads
- Radio protocol: Zigbee
- Frequency: 2.4 GHz
- Transmission: bidirectional with notification LED on transmitter
- Operating temperature: - 10°C to +50°C
- Relative humidity: maximum 70%
- Protection: IP54
- Dimensions (WxHxD): 25 x 45.3 x 10.2 mm
L'extension de mon réseau est en cours... Ce matériel est simple d'utilisation et efficace !
Data sheet
- Type: Radio Modules
