Haier Trial Console Air Conditioner 2.5kW+2.5kW+2.5kW R32 WIFI
KIT HAICON999
Haier Trial Console 2.5+2.5+2.5 kW (9000+9000+9000BTU) Gas R32 with Wi-Fi hOn: air conditions 3 rooms with compact console units, dual airflow, and silver ion antibacterial filter. Quiet, with Sleep mode and integrated R32 leak detector.
Kit composed of:

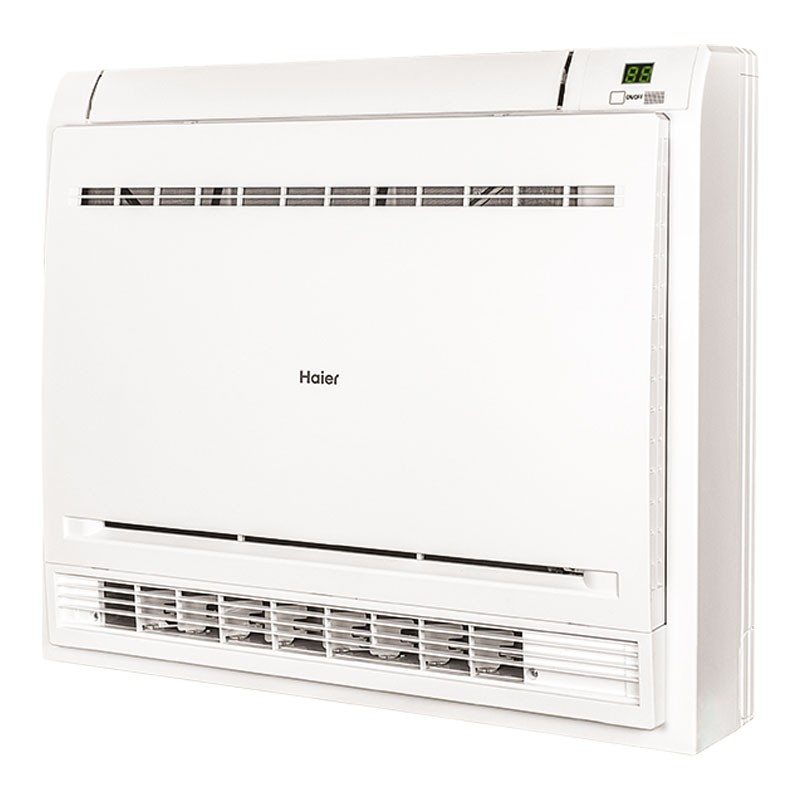

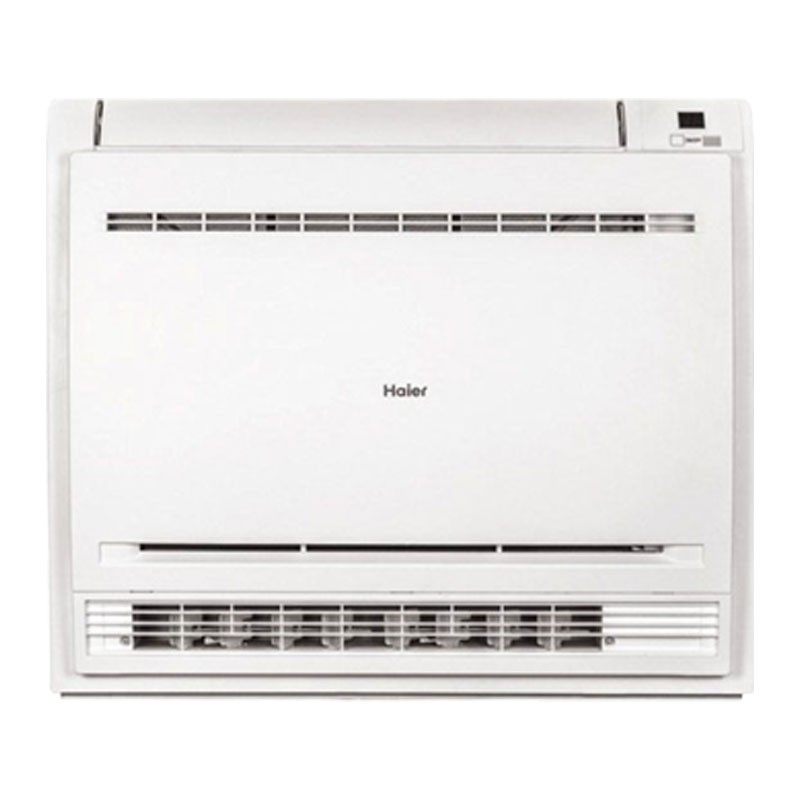

- 3 indoor units 9000BTU 2.5kW (AF25S2SD1FA(D) - AA2JWCE00)

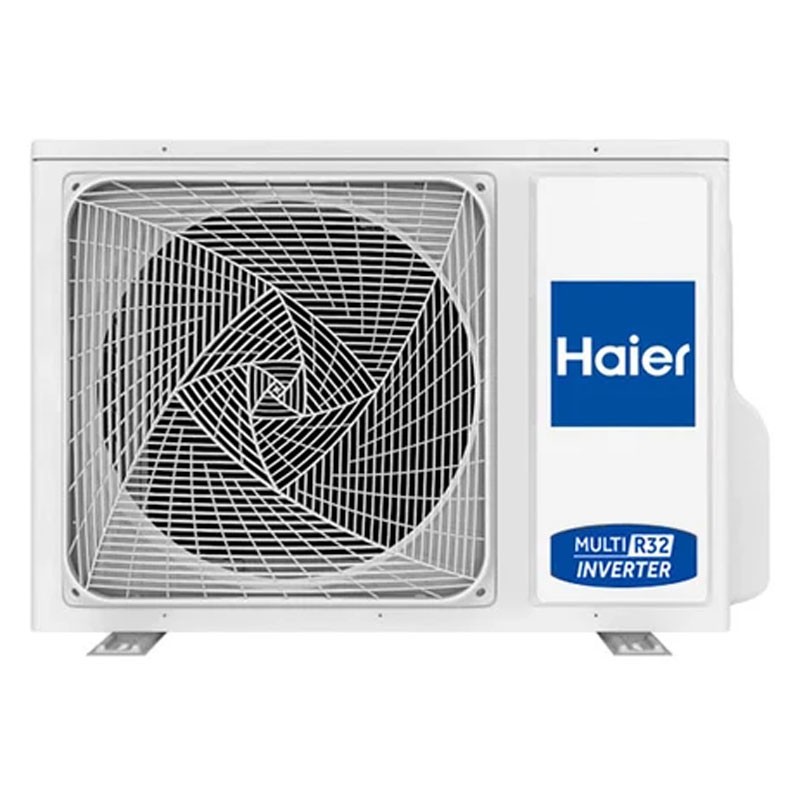

- 1 outdoor unit Trial Split 7.0kW (3U70S2SR5FA - AAA2PHE00)

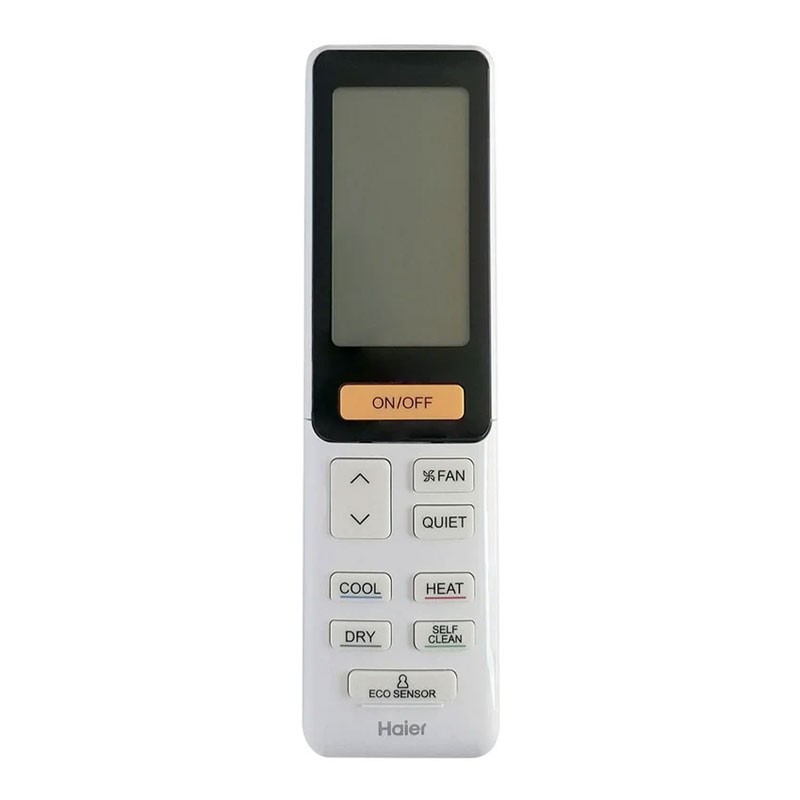

- 3 standard remote controls model (YR-HBS01)
For three rooms of approx. 27m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€3,634.97
Items Available: 8
: 4
Air conditioners of the same series
Frequently bought together
Haier Trial Console Air Conditioner: a solution for three rooms
The Haier Trial Console is designed for those who want to manage the air conditioning of three environments with a single, well-coordinated system. The combination of 2.5 kW + 2.5 kW + 2.5 kW power allows for effective coverage of rooms with different needs (for example, a smaller bedroom/study and two larger rooms), maintaining simple and orderly management.
The Console units are ideal when looking for a compromise between aesthetics and performance: a compact format that integrates well into domestic or professional environments, without the visual impact of bulkier solutions.
Wi-Fi standard with hOn App: smart control wherever you are
The integrated Wi-Fi allows you to manage the air conditioner via the hOn App, directly from a smartphone or tablet. It is convenient for:
- turning the splits on and off even when away from home
- setting temperature and mode before returning
- adjusting comfort in different rooms based on the day
- optimizing night use with softer settings
The hOn interface is designed for immediate control, useful both at home and in small offices.
Dual air flow: more uniform comfort and less stratification
The dual air flow improves air distribution in the environment, helping to reduce "too cold" or "too hot" zones. In practice, the air conditioning is more homogeneous and pleasant, especially when the unit works for many hours or when the room has complex geometries.
Silver ion filter: hygiene and daily well-being
The antibacterial silver ion filter is an important plus for air quality: it helps to counteract bacterial proliferation and supports a healthier environment. It is an appreciated feature in bedrooms, studies, waiting rooms, and all spaces where comfort also means "cleaner air".
Quietness and Sleep: ideal for the night
When the air conditioner is in the bedroom or relaxation areas, noise makes a difference. The system is designed for a low sound level and includes the Sleep Function, which improves night comfort by modulating operation more gently. Result: more stable temperature and a more discreet experience during sleep.
R32 Safety: integrated leak detector on the Console unit
A very useful technical detail is the presence of the R32 gas detector on the Console unit, designed to detect any refrigerant leaks. It is a feature that increases safety and supports more reliable system management over time, especially in residential and professional contexts.
| INTERNAL UNIT 9000 BTU | |
|---|---|
| Cooling power output | 2.5 kW |
| Heating power output | 2.8 kW |
| Power supply | 1 / 220–240 V / 50–60 Hz |
| Air volume treated (H/M/L) | 450 / 400 / 350 / 300 / 250 m³/h |
| Sound power | 52 dB(A) |
| Sound pressure (H/M/L) | 40 / 32 / 25 / 20 dB(A) |
| Dimensions (W × D × H) | 700 × 210 × 600 mm |
| Net weight | 16.5 kg |
| Liquid piping | Ø 6.35 mm (1/4") |
| Gas piping | Ø 9.52 mm (3/8") |
| Remote control included | Model YR-HQS01 |
| COOLING PERFORMANCE EXTERNAL UNIT | |
|---|---|
| Nominal power (Min~Max) | 7.0 kW (2.4 ~ 7.6) |
| Power consumption | 1.75 kW |
| EER | 4.0 |
| Pdesign (35 °C) | 7 kW |
| SEER / Energy class | 8.5 (A+++) |
| Annual energy consumption | 296 kWh/a |
| Operating range | -10 ÷ +46 °C |
| HEATING PERFORMANCE EXTERNAL UNIT | |
| Nominal power (Min~Max) | 7.6 kW (2.9 ~ 8.5) |
| Power consumption | 1.9 kW |
| COP | 4.0 |
| Pdesign (-10 °C) | 6 kW |
| SCOP / Energy class | 4.4 (A+) |
| Consumo energetico annuo | 1782 kWh/a |
| Campo di funzionamento | -15 ÷ +24 °C |
| GENERAL DATA OUTDOOR UNIT | |
| Power supply | 1 / 220–240 V / 50–60 Hz |
| Airflow rate | 3000 m³/h |
| Sound power (cooling) | 66 dB(A) |
| Sound pressure (cooling) | 53 dB(A) |
| Dimensions (W × D × H) | 890 × 340 × 700 mm |
| Net weight | 54 kg |
| Compressor type | Inverter Twin Rotary |
| Compressor brand | Mitsubishi |
| REFRIGERATION CIRCUIT | |
| Refrigerant type | R32 |
| Liquid piping | 3 × Ø6.35 mm (1/4") |
| Gas piping | 3 × Ø9.52 mm (3/8") |
| Max total piping length | 60 m |
| Max single line length Outdoor–Indoor unit | 25 m |
| Standard length without additional charge | 30 m |
| Max height difference Outdoor–Indoor unit | 15 m |
| Max height difference Indoor–Indoor unit | 7.5 m |
| Factory refrigerant charge | 1.6 kg |
| Additional charge | 20 g/m |
| CO₂ equivalent | 1.08 tCO₂eq |
There are no reviews
Data sheet
- Air conditioners: Console
- Gas: R32
- Power: 9+9+9 BTU
- System: Trialsplit
- WIFI: Integrated
- Room Size: 27m²+27m²+27m²
- Energy class: A+++
- Series: Console
