General Features



The new line of Expert air conditioners offers:



• Purification and sanitization of components thanks to the new UVC Pro lamp and Self-Clean, Steri-Clean 56°C and Self-Hygiene by Silver Ion technologies
• Maximum comfort with Coanda Air Flow and low sound level of only 16 dB(A)

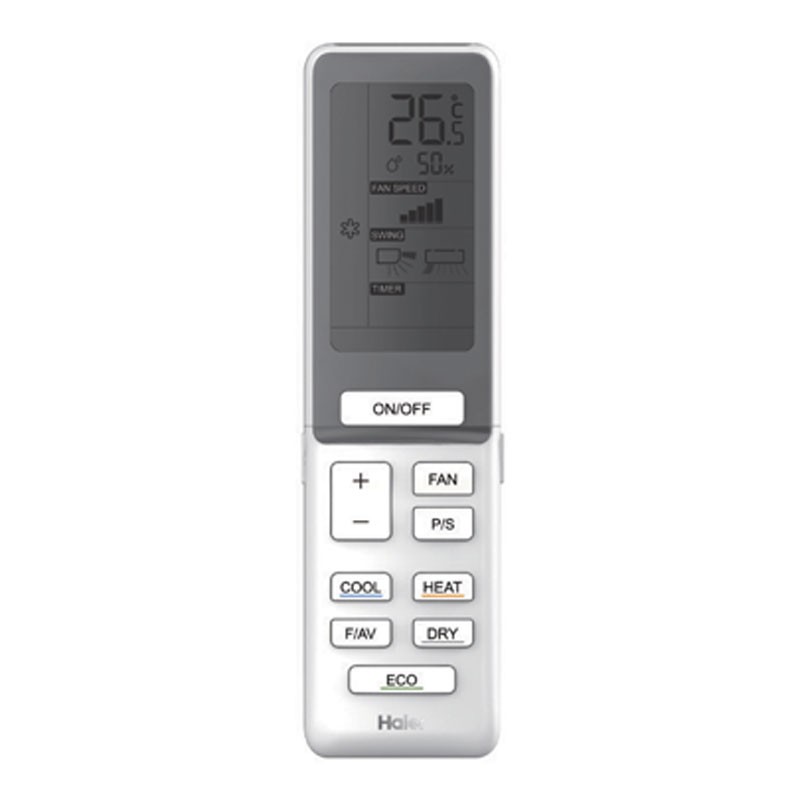

• Remote control thanks to the hOn app
• Energy class in cooling: A+++
• Energy class in heat pump: A++
• Self-Clean
• Steri-Clean 56°C
• Air Flow Coanda
• Low sound level
• Extreme Cleaning
• I-Feel
• Easy Installation



Air purification with the UV-C PRO lamp



UVC Pro is a technology that works in the UV spectrum and, in particular, on two lengths:

• UVC rays that inhibit viruses and bacteria in the air passing through the rays produced by the lamp;
• UV Vacuum rays that generate hydroxyl radicals that are released into the environment and increase the effectiveness of inhibiting viruses and bacteria in the air.



Extreme Cleaning and Ease of Disassembly.

• The indoor unit is designed to enable quick and thorough cleaning of the air conditioner's internal components and to simplify disassembly of major components such as the electronic board, motor, and fan. Deep cleaning thus ensures the removal of bacteria, dust and mold that settle inside the unit over time and during its use.



Maximum comfort

• With a sound level of only 16 dB(A), Expert is quiet and unobtrusive

The Coanda effect ensures a comfortable distribution of air throughout the room: in cooling mode, the flow of cold air slides parallel to the ceiling, thus evenly air-conditioning the room and preventing the cold air stream from being directed at people; in heating mode, the warm air is directed directly to the floor, and then circulates throughout the space to ensure constant temperature distribution in every corner of the room.



New hOn App

• With Haier's "hOn" app, you can control all of the Haier group appliances in your Smart Home from your smartphone or tablet with a single app. The app allows the use of voice commands because it is compatible with Google Assistant and Alexa.



Specifications:



Cooling:

• Min/Max rated capacity: 2.8 KW (0.8-3.2)
• Rated input power: Min/Max kW 0.651 (0.2-1.2)
• SEER 8.8
• Energy class: A+++
• EER 4.3
• Indicative annual energy consumption kW/a 111
• Pdesign Cooling 35 Degrees 2.8 kW

Heating:

• Rated capacity Min/Max: KW 3.2 (0.8-4.2)
• Rated input power Min/Max 0.761 (0.3-1.5)
• SCOP: 4.75
• Seasonal energy efficiency class A++
• COP 4.2
• Indicative annual energy consumption: kWh/a 737
• Pdesign Heating 35 Degrees 2.5 kW

Indoor Unit Features:

• Dimensions: (WxDxH) 895x313x236mm
• Weight 11.3Kg
• Power supply 1/220~240/50
• Treated air cubic meters/h 730
• Dehumidification capacity l/hr 1.2
• Sound pressure level (Cooling/Heating) dBa 39/32/25/16 - 39/32/25/16
• Sound Power Level Heating/Cooling dBA 56/56

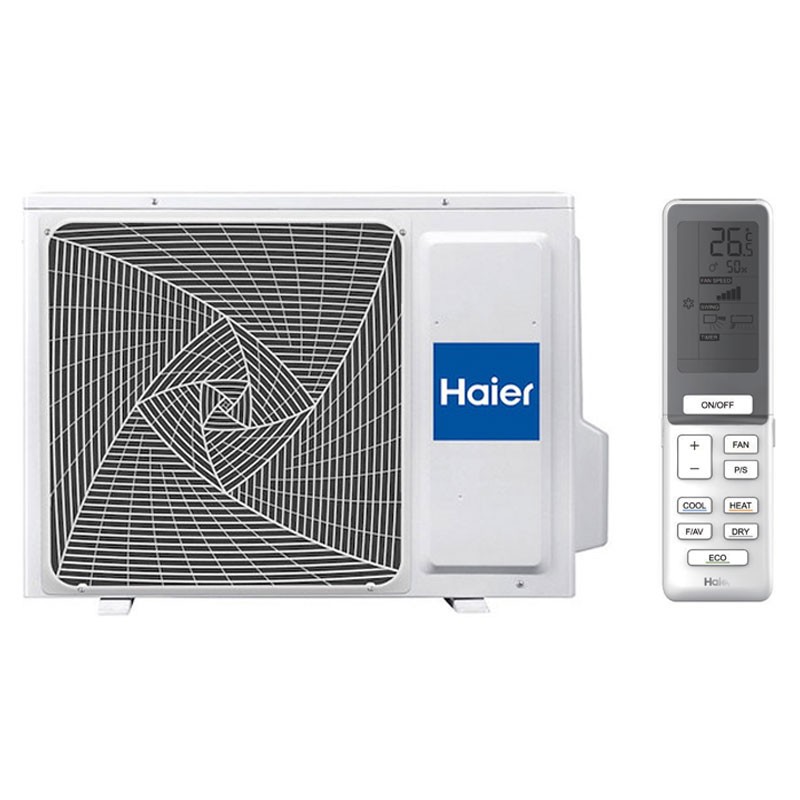

Outdoor Unit Features:

• Dimensions: (WxDxH) 800x275x553mm
• Weight 27.6Kg
• Sound Pressure Level dBa 48
• Sound Power Level dBA 59
• Power Supply Single-phase 220-240 / 50Hz
• Liquid piping 6.35 (1/4")
• Gas piping 9.52 (3/8")
• Compressor type Inverter single rotary
• Compressor brand Highly
• Piping length std without additional refrigerant charge 7 meters
• Max/min piping length 20/3 meters
• Max height difference between indoor/outdoor unit 10 meters
• Refrigerant Type: R32 gas
• Factory refrigerant charge 0.63 Kg
• Tons of CO2 equivalent tCO2EQ 0.42
• Additional ref. charge over std. length 20 g/m
• Operating limits Cooling min~max °C 21÷35°C (in) / -20÷43°C (out)
• Operating limits Heating min~max °C 10÷27°C (in) / -20÷24°C (out)
