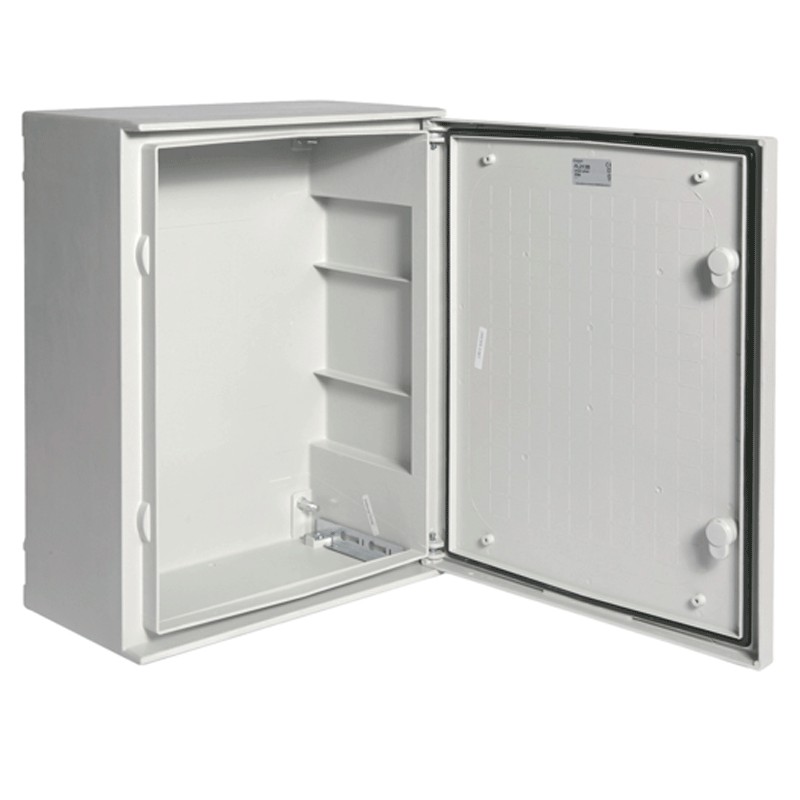

Hager Orion Plus 50X40X20 Polyester Electrical Box blind door IP65 FL213B
HAG FL213B
3250610670873
Polyester switchboard Hager Orion Plus wall mounting, Current rating in A 630 A, Enclosure protection rating IP66.
€231.60
Items Available: 2
: 1
Features:
- Not Suitable for lightning protection
- Door locking type lock with male triangular key
- Interlockable
- Door lock number 2
- Cover type Blind door
- Single door leave
- Cover type Door
- Color RAL7035
- Light gray color
- RAL gray RAL 7035 color
- Material Polyester reinforced with glass fiber
- Untreated surface treatment
- Depth of installed product 200 mm
- Inside depth 200 mm
- Height of installed product 500 mm
- Width of installed product 400 mm
- Width in units of division 18
- Thickness of side wall material 2 mm
- doneo for outdoor use
- Mounting plate not included
- Lock included
- Equipment Quantity of rows in the enclosure 3
- Number of keys 2
- Number of profiles 3
- Reference Standards BS EN 62208
- Impact resistance rating IK10
- Enclosure degree of protection IP66
- Insulation protection class II
There are no reviews
Data sheet
- Type: Switchboards
- Degree of protection: IP66
- Model: Blind Door
- Installation: Wall-mounted
- Amps: 630A
