Bticino MatixGO Starter Kit Light Management grey JG1010KIT

Bticino
Bticino
BT1 JG1010KIT 8005543732618

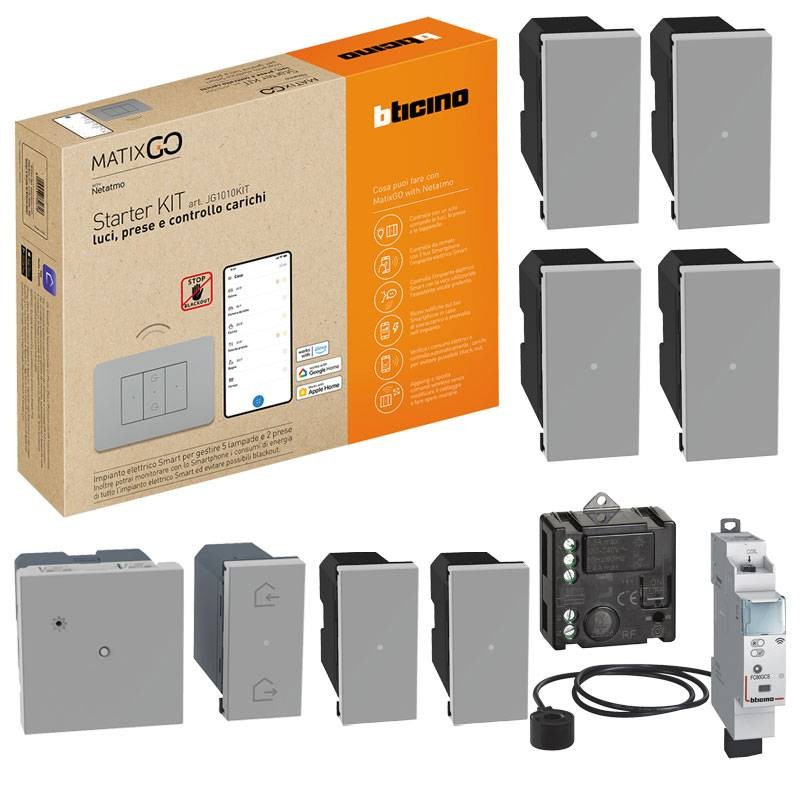

Starter Kit for Light management Bticino MatixGO series gray color composed of:



  • 1 piece article JG4510C gateway (with recessed radio in/out control one module)
  • 3 pieces article JG4003C connected diverters
  • 1 piece article 3584C light relay connected
  • 1 piece article JG4411C switch/dimmer connected
  • 1 piece article FC80GCS DIN load management module connected
  • 2 pieces article JG4531C connected socket module
With the kit you save compared to individually purchased items
Do you have questions about this product or did you not find what you were looking for? Ask us!
Bticino MatixGO Starter Kit Light Management grey JG1010KIT
€425.29
€425.29

€425.29
Tax included
Calculate shipping cost
Items Available: 1
Further availability of the manufacturer
€425.29

Buy it within and receive it from Thursday, 26 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Specifications of individual kit components:




Gateway with wireless Enter&Exit Bticino MatixGO Smart gray JG4510C consisting of:

  • 1 Gateway to create a connected home installation
  • 1 Entra&Esci wireless control JG4570CWI



With MatixGO you can realize Smart Home and manage home functions easily. Gateway to create a connected installation of the home. It can be used to control lights, blinds and electrical equipment connected to connected outlets: - using your smartphone and Home + Control app; - using voice assistants; - from the general control at the entrance to the house.



To be applied on frames J4702-J4703-J4704-J4707.




Bticino MatixGO Smart 1 module grey connected diverter JG4003C:

  • 1 module
  • Grey colour
  • Voltage 110-230Vac
  • Power (W) 250W
  • Allows you to control lights locally or remotely. Installs like a conventional diverter and is compatible with all loads with a maximum power rating of 250W




To be mounted on frames J4702-J4703-J4704-J4707.



Bticino Living Now connected lights relay 3584CRBticino Living Now connected lights relay. Allows you to control lights locally or remotely. It is compatible with all loads with a maximum power of 300 W. It can be connected to one or more traditional pushbuttons or associated with one or more wireless controls. It installs like a traditional relay in the flush-mounted box (behind the button) or in junction boxes. Caution: connection to neutral is required. Power supply 100-240 Vac.



Features:

  • Bticino series
  • Frequency: 50/60 Hz
  • Penetration by solids/liquids: IP 21 D
  • Impact proof IK04
  • Material: Polycarbonate
  • Clamp type: screw type
  • Clamp capacity: 1 x 2.5mm2 - 2 x 1.5mm2
  • Strip length: 6 mm
  • 3mm flat screwdriver




Bticino MatixGO Smart connected dimmer switch 1 module grey JG4411C:

  • 1 module
  • Gray color
  • Voltage 110-230Vac
  • Power (W) 150W
  • Allows you to control lights locally or remotely via Home+Control APP
  • Installs like a traditional switch and is compatible with incandescent or LED loads (dimmable), capacitive type, with max power 150W at 230Vac
  • It is equipped with a blue LED for location and load status functions, configurable from APP
  • It can be connected to one or more traditional buttons or associated with one or more wireless controls
  • Please note: the vary light function is activated only by APP and connection to neutral is required



To be applied on frames J4702-J4703-J4704-J4707.




Bticino Smart DIN-attached Connected Load Management Module FC80GCS: Bticino Smart DIN-attached Connected Load Management Module to monitor the consumption of the entire electrical system, feed/supply loads and set up scenarios with priority and non-priority loads. When the maximum power stipulated in the user's contract is reached, non-priority loads will be temporarily de-energized to avoid possible and annoying blackouts. A toroid for input current measurement is provided.



  • 110-230 Vac power supply
  • 1 DIN module




Bticino MatixGO Smart 1 module grey JG4531C connected socket module:

  • 1 module
  • Grey colour
  • Voltage 110-230Vac
  • Current In 16A
  • Power (W) 3680W
  • Connected to a power outlet, it allows remote control of electrical devices and check their consumption (instantaneous, daily, monthly)
  • You can also receive notifications in case of abnormal consumption
  • Compatible with any electrical device with power up to 3680W with 16 A absorption (protected against overloading)
  • Features a blue LED that lights up when the outlet is on, which can be configured from the Home + Control APP



To be applied on holders J4702-J4703-J4704-J4707.

There are no reviews

Data sheet

KIT:
Kit Starter
