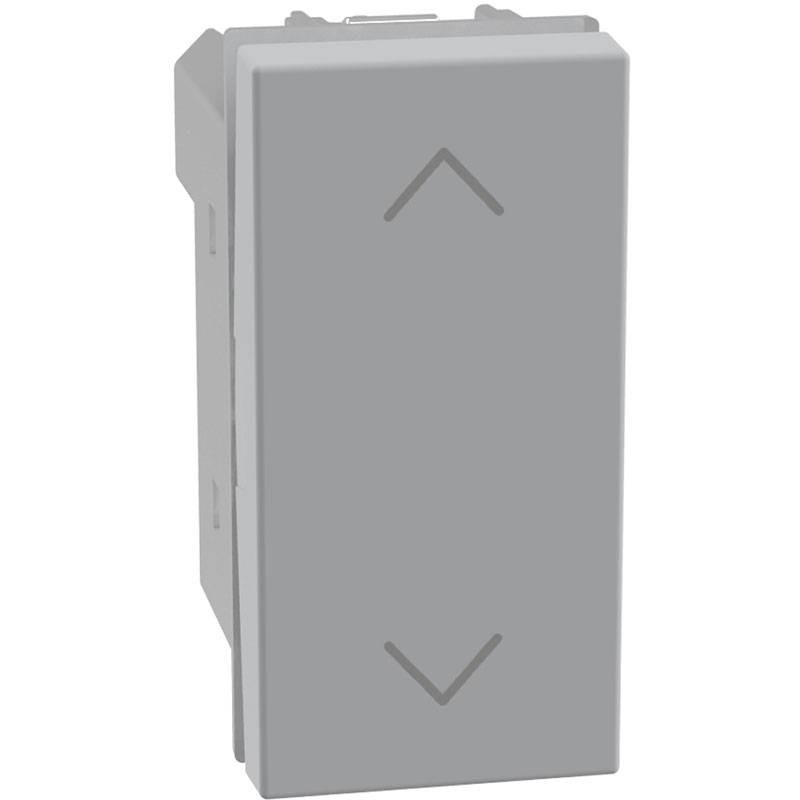

Bticino MatixGO grey double interlocked button for roller shutters JG4037N
BTI JG4037N
8005543715451
Double interlocked push button for Bticino MatixGO shutters:
- Voltage 250Vac
- Current In 10A
- Modules 1
- Contact type 1 + 1 NO-NO
- Non-illuminatable
- Colour grey
To be applied on frames J4702-J4703-J4704-J4707.
€17.26
Items Available: 242
: 12
Frequently bought together
The double interlocked button additionally has interlocking i.e. a protective device that prevents the two buttons from being pressed at the same time so as to avoid possible damage to the motor we are controlling.
Features:
- Control devices for lighting and other controls
- Clamp type: screw
- Clamp capacity: 2 x 4 mm2
- Strip length: 9 mm
- Compatible with flexible and rigid cables
- Degree of protection IP40
- Impact protection rating IK04
Materials:
- Housing: PC
- Key Cover : ABS
- Halogen Free
- UV Resistant
- Self-extinguishing: 850°C/30s for insulating parts that hold live parts in place - 650°C/30s for other parts of insulating materials
- Storage temperature: -10° C to +70° C
- Operating temperature: -5° C to +35° C
There are no reviews
Data sheet
- Main Commands: Rolling shutters
