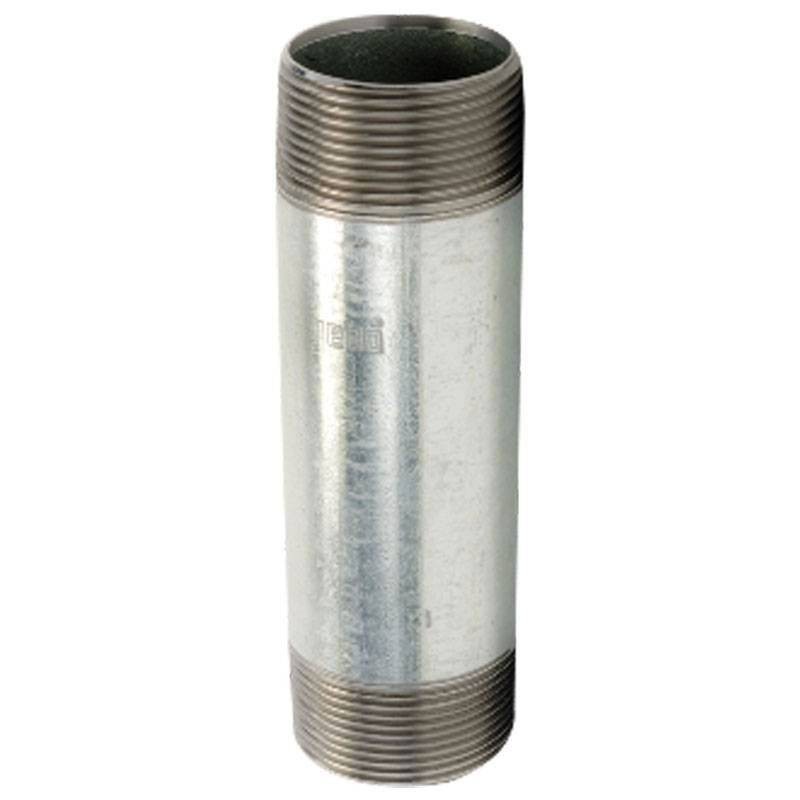

Gebo threaded galvanized steel barrel nipple 2 inches x 50mm 70.500.09V
GBO 70.500.09V
4019576060017
Gebo Threaded Galvanized Steel Barrel Nipple is a tubular fitting ideal for extending pipes in plumbing, heating and industrial systems. Due to its high mechanical strength and protective galvanizing, it offers long service life and excellent corrosion protection, making it perfect for transporting water, combustible gases, compressed air and hydrocarbons, with the following features:
-
Connections: 2 inches x 500 mm
-
Material: Galvanized steel
-
Threading: Conforms to ISO 7/1 standard
-
Maximum pressure: 25 bar
-

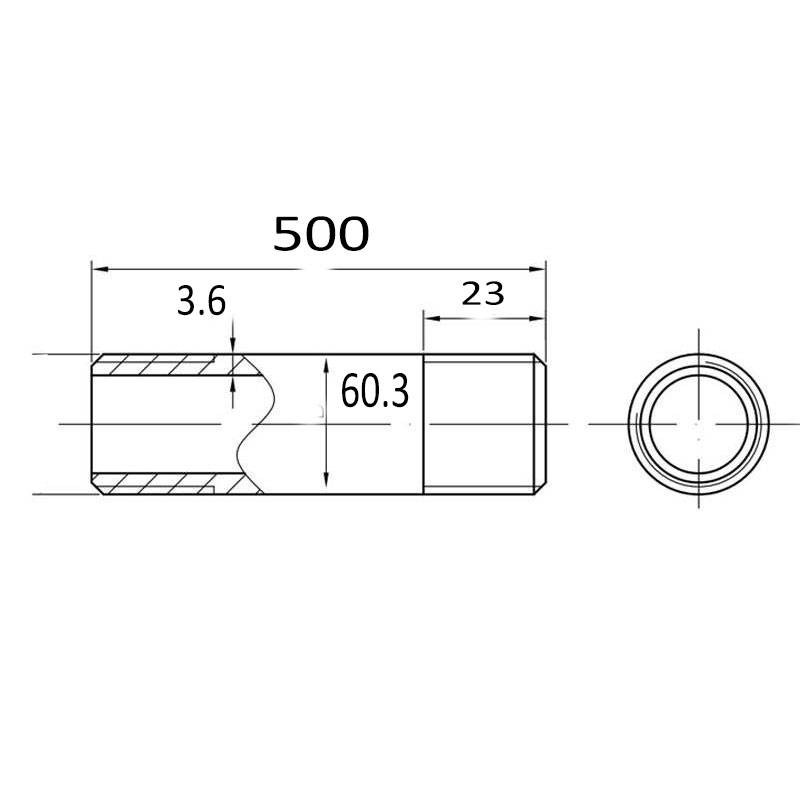

Dimensions: 60.3x3.6x500x23 mm
€12.80
Items Available: 16
: 10
Gebo threaded galvanized steel barrel nipple 2 inches x 50mm
The Gebo barrel is designed to provide high pressure and tensile strength, with minimum values of:
-
Tensile strength: 350 N/mm²
-
Yield strength: 200 N/mm²
-
Brinell hardness: 150 HB
Its robust structure allows it to withstand high temperatures, with an operating pressure of up to 25 bar at 120°C and 20 bar up to 300°C.
Hot-dip galvanizing for maximum protection
The barrel is hot dip galvanized, with a zinc coating of more than 500 g/m², ensuring a minimum average thickness of 70 microns. This protection provides excellent corrosion resistance, preventing damage from moisture and chemicals.
Accuracy and regulatory compliance
The fitting is manufactured in accordance with UNI EN 10242, ensuring compatibility with certified plumbing and distribution systems. The ISO 7/1 threading ensures a perfect seal and quick and safe assembly.
Application Sectors.
-
Industrial: Fluid transport and compressed air systems
-
Civil: Water and gas distribution systems
-
Domestic: Plumbing and heating systems
Detailed technical characteristics
-
Material: Galvanized steel
-
Dimensions: 2 inches x 500 mm
-
Threading: ISO 7/1
-
Maximum working pressure: 25 bar (20°C to 120°C) - 20-25 bar (120°C to 300°C)
-
Tensile strength: 350 N/mm²
-
Yield strength: 200 N/mm²
-
Elongation: 10%
-
Brinell hardness: 150 HB
-
Hot-dip galvanizing: 70 µm thickness
-
Compliance: UNI EN 10242
There are no reviews
Data sheet
- Type: Barrel nipples
- Model: Threaded
- Connections: 2 inches
- Material: Cast iron
