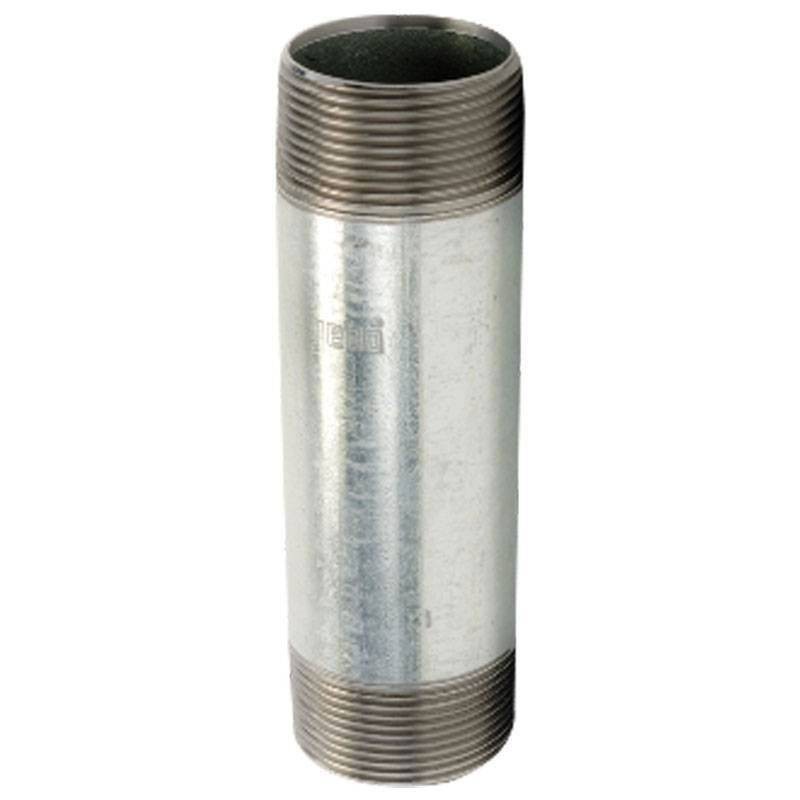

Gebo threaded galvanized steel barrel nipple 2 in. x 400 mm 70.400.09V
GBO 70.400.09V
Gebo Threaded Galvanized Steel Barrel nipple is a robust and reliable extension socket, ideal for applications in plumbing and thermal systems. Designed to provide superior strength and long service life even under demanding working conditions, with the following features:
-
Connections: 2 inches
-
Material: galvanized steel
-
Thread: ISO 7/1
-

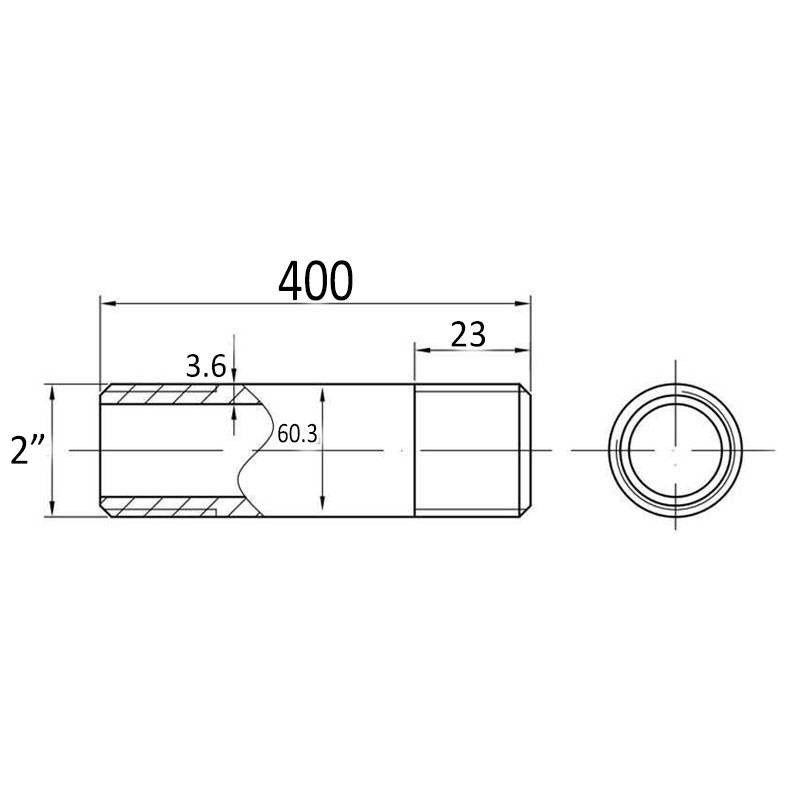

Dimensions: 60.3x3.6x400x23 mm
€13.19
Items Available: 19
: 18
Gebo threaded galvanized steel barrel nipple 2 inches x 400 mm
The Gebo barrel nipple is made of galvanized steel, providing mechanical and chemical resistance. Immersion galvanizing offers superior corrosion protection, making it ideal for use in wet or aggressive environments.
Threading and dimensions
With a thread conforming to ISO 7/1, the socket offers a secure and reliable coupling. Its dimensions make it suitable for a wide range of installations.
Performance under stress
-
Working pressure: Supports 25 bar at temperatures up to 120°C and up to 20 bar at 300°C
-
Minimum temperature: Operating down to -20°C
Tested reliability
Each fitting undergoes rigorous leak tests in accordance with DIN EN 10242 to ensure reliable and durable performance.
Applications
-
Plumbing and thermal systems
-
The Gebo barrel is perfect for connecting pipes in heating systems, water distribution, compressed air and many other applications
Durability under extreme conditions
Thanks to its steel construction and anti-corrosive galvanization, it is ideal for environments with high mechanical and chemical stresses.
Specifications:
-
Maximum pressure: 25 bar (up to 120°C) - 20 bar (up to 300°C)
-
Minimum operating temperature: -20°C
-
Galvanizing: Minimum thickness 70 microns
-
Tensile strength: Minimum 350 N/mm²
-
Elongation: Minimum 10%
-
Brinell hardness: Maximum 150 HB
There are no reviews
Data sheet
- Type: Barrel nipples
- Model: Threaded
- Connections: 2 inches
- Material: Cast iron
