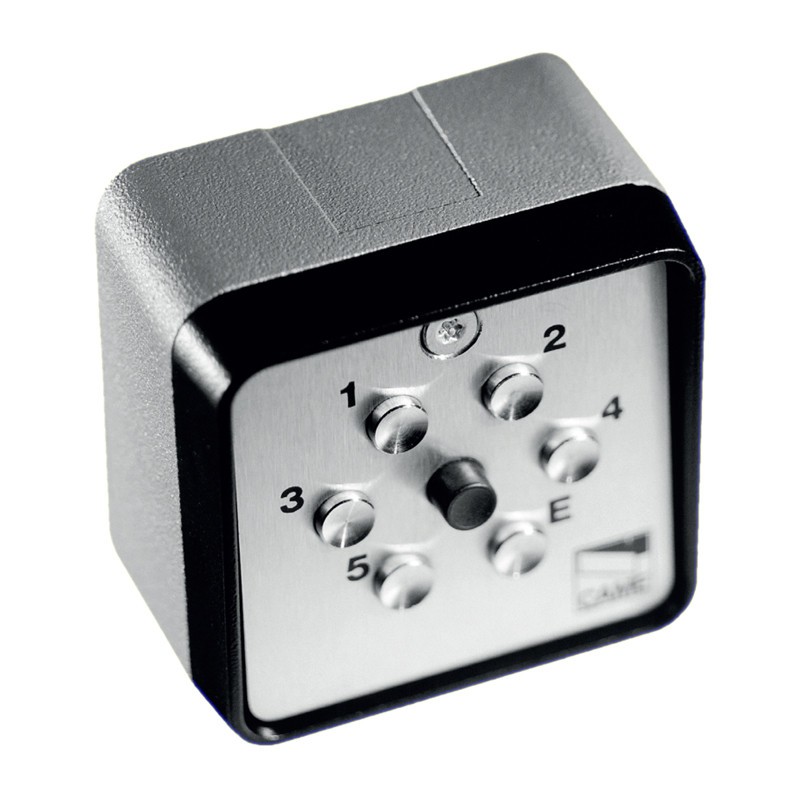

Came Recessed Keypad Selector 12/24V AC/DC 70 mA IP54 001S6000
CMC 001S6000
8050456016102
Came burglar-proof recessed keypad selector, electronic security with programmable code and discreet installation, with the following features:
-
Power supply: 12/24 V AC/DC
-
Current consumption: 70 mA
-
Maximum power: 1.7 W
-
Programmable code: Up to 6 digits
-
Degree of protection: IP54
-
Body material: ABS
-
Front frame material: Painted steel and stainless steel
-
Installation: Recessed, with screw and dowel fixing
€57.23
Items Available: 8
: 4
Flush-mounted keypad selector with programmable digital code
The Came recessed keypad selector, is an effective and secure solution for electronic access control in residential, commercial and industrial environments. The system allows the programming of numeric codes up to 6 digits, offering 1,679,616 possible combinations, to ensure a high level of security against intrusion and tampering.
Operation is fully electronic and managed by an integrated control board, which receives pulses from the keypad and translates them into opening or activation commands.
Burglar-proof structure and environmental protection
The keypad is protected by a painted steel cover with integrated canopy, which prevents infiltration and damage caused by weathering.
The body of the switch is made of impact-resistant ABS material, while the front is reinforced with stainless steel and aluminum components for optimal burglary protection and durability.
With an IP54 rating, the device is also suitable for outdoor installation, provided it is in partially protected environments.
Operational advantages
-
Maximum security against unauthorized access
-
Simple configuration and immediate use
-
Compact and elegant design with small dimensions
-
Low power consumption: maximum power of 1.7 W
-
Suitable for doors, electric gates, security gates and electronic activations
Technical Specifications Came keypad selector
Technical Specifications
| Programmable code | Up to 6 digits |
| Available combinations | 1.679.616 |
| Power supply | 12/24V AC/DC |
| Current consumption | 70 mA |
| Maximum power | 1,7 W |
| Insulation class | III |
| Degree of protection | IP54 |
| Body material | ABS |
| Front frame material | Painted steel and stainless steel |
| Operating temperature | -20 °C TO +55 °C |
| Dimensions | 70x70x86 mm (W-H-P) |
| Installation | Recessed, with screw and dowel fixing |
Data sheet
- Type: Selectors
- Model: Keyboard
