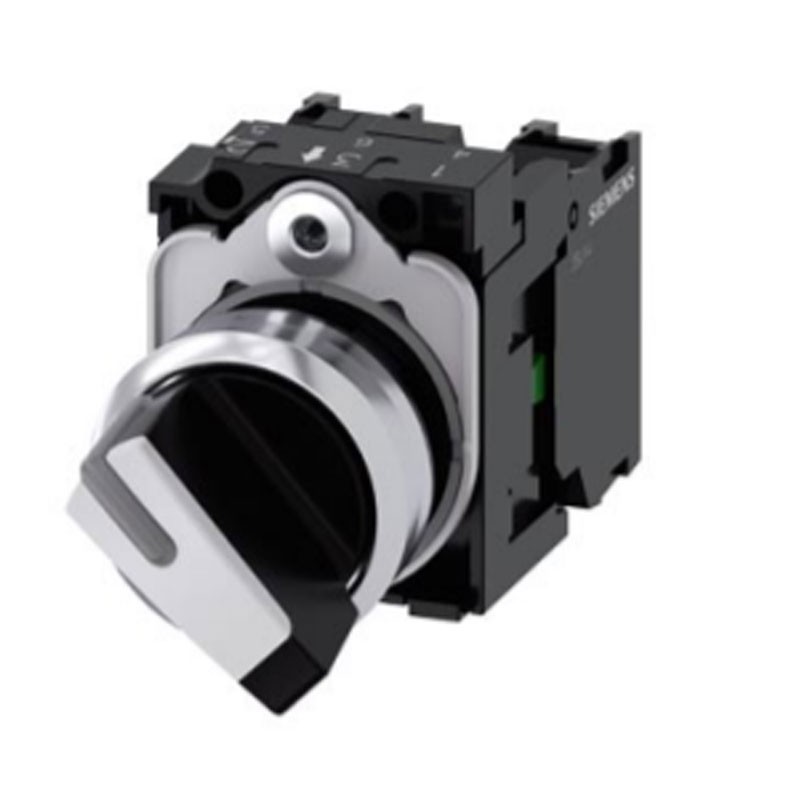

Siemens Illuminable selector switch 22 mm white 2 positions 3SU11502BF601MA0


SIE 3SU11502BF601MA0 4011209956445

Siemens illuminable selector switch, with the following characteristics:

  • Number of operating points 1
  • Operating principle of the snap-in actuating element, 90° (10:30 h / 13:30 h)
  • 2 modules
  • Switching positions 2
  • Actuating angle: clockwise 90°.
  • Rated value of the insulation voltage 500 V
  • Type of operating voltage AC / DC
  • Rated value of the overvoltage resistance 6 kV
  • Protection class of the terminal IP20
  • Thermal current 10A
Request info about this product

Siemens Illuminable selector switch 22 mm white 2 positions 3SU11502BF601MA0

€17.35
€17.35

Siemens Illuminable selector switch 22 mm white 2 positions 3SU11502BF601MA0

€17.35
Tax included
klarna Pay in installments with Klarna
qty

Siemens Illuminable selector switch 22 mm white 2 positions 3SU11502BF601MA0

€17.35

Buy it within and receive it from Wednesday, 10 April
Two-year warranty
Secure Payment
Easy return within 14 days

Features:

  • Siemens Serie
  • Color of actuating element: white
  • Material of actuating element: plastic
  • Shape of actuating element: round
  • External diameter of the actuating element: 32.3 mm
  • Actuation angle: 90° clockwise
  • Material of front ring: metal
  • Colour of front ring: silver
  • Material of the holder: plastic
  • Pollution degree 3
  • Tightening torque of the screws in the bracket 1 ... 1.2 Nm
  • Tightening torque with screw terminals 0.8 ... 0.9 Nm
  • During operation -25 ... +70 ° C
  • During storage -40 ... +80 ° C
  • Fixing method: Front plate mounting

Dimensions:

  • Height 40 mm
  • Width 32,3 mm
  • Mounting diameter 22.3 mm
  • Positive tolerance of installation diameter 0.4 mm
  • Installation height 28.8 mm
  • Installation width 32.3 mm
  • Installation depth 49.7 mm

Data sheet

Type:
Selectors
