Faac motor for roller shutter with max lifting capacity 170kg 109950
FAA 109950
8055195003512

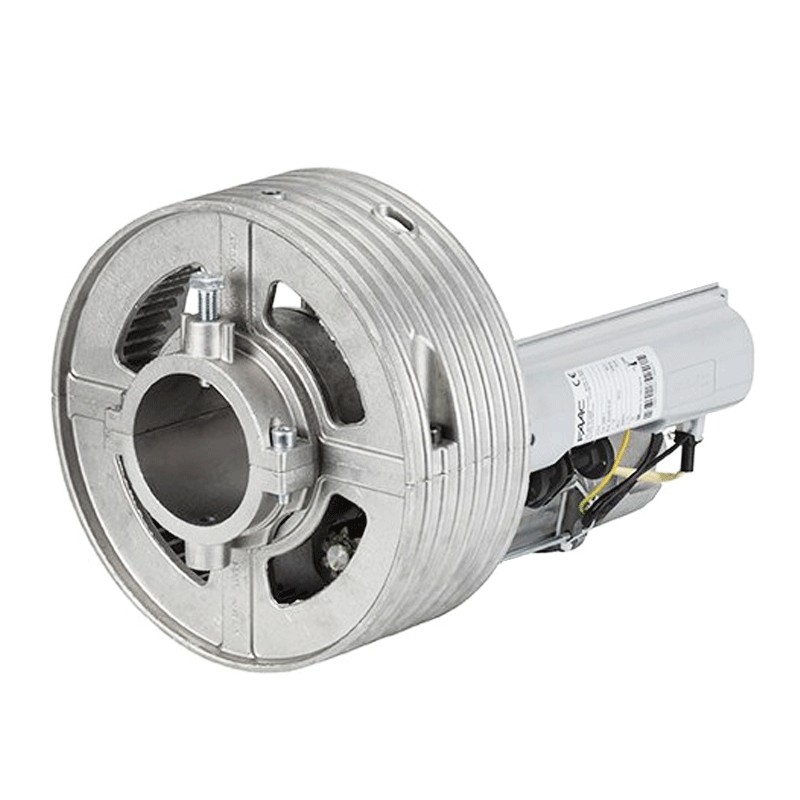

Faac RL200 REVERSIBLE gearmotor for roller shutter.
€118.07
Items Available: 9
: 1
Limit switch with self-learning of positions and predisposition for application of anti-fall safety device (EN 13241-1).
Features:
- Mains voltage 220-240V ~ 50/60Hz
- Max torque 170 Nm
- Working environment temperature -20°C ÷ + 55°C
- Lifting capacity 170 Kg
- Max speed 10 rpm
- Damper shaft diameter: 60 mm and 48/42 mm (with adapter)
- Diameter of damper boxes: 200/220 mm
- Max damper height 6 meters
- Max damper width 4,5 meters
- Operator weight 8 Kg
- Can be used with dampers up to 170 Kg
- Electronic equipment not included
Ottima esperienza, motore di marca a prezzo conveniente. Spedizione e consegna in brevissimo tempo. ottimo.
Data sheet
- Type: Motors for roller shutters
