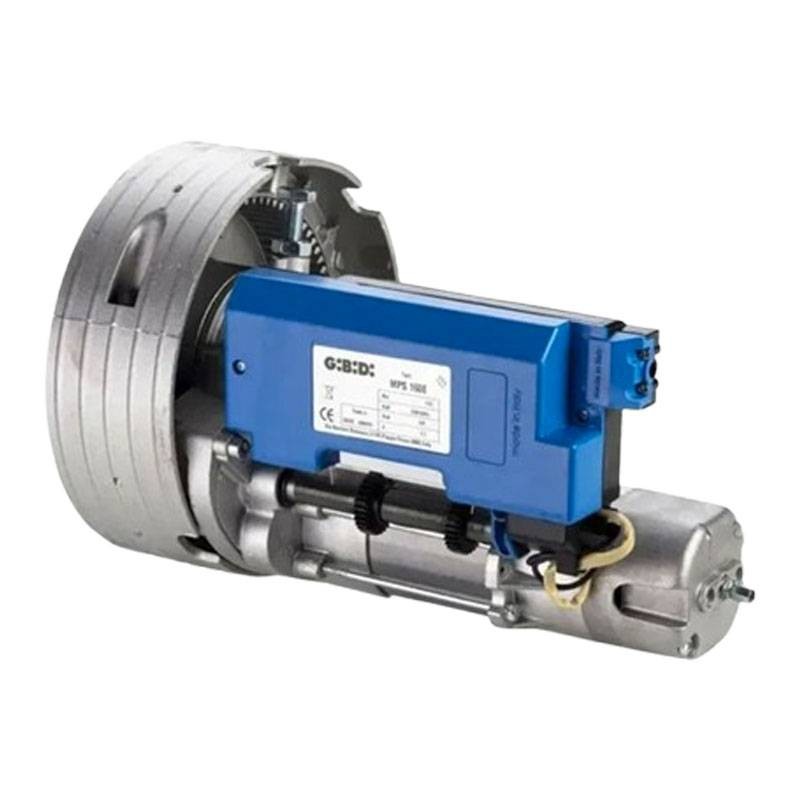

Gibidi 230V 170 kg damper gearmotor with limit switch and electric brake MPS160ENE1
GIB MPS160ENE1
8027908798527
Gibidi shutter gear motor is the ideal solution for automating rolling shutters up to 170 kg. It runs on 230V and is equipped with limit switches and electromagnetic brakes for precise and safe operation. Reliable, quiet and easy to install, with the following features:
-
Version: With electric brake and limit switch
-
Power supply: 230V AC - 50/60 Hz
-
Current consumption: 2.7A
-
Lifting capacity: up to 170kg
-
Power consumption: 600W
-

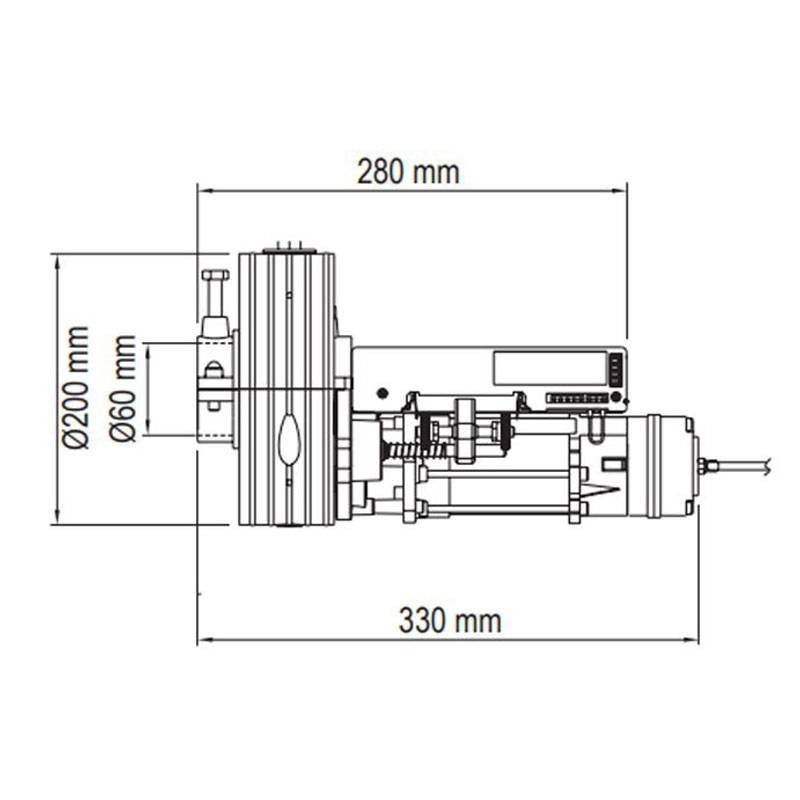

Crown diameter: 200/220 mm
-
Tube: 60mm diameter
-
Suitable for: Residential and commercial use
€106.76
Items Available: 10
Frequently bought together
Gibidi gearmotor: reliability, safety and continuous efficiency
Reliability and safety for your rolling shutters
Gibidi's central gearmotor is designed to automate rolling shutters with a maximum weight of 170 kg, ensuring high performance and long life. Thanks to its integrated electric brake, it offers excellent hold in any position, preventing unwanted movement and improving the safety of the system.
The adjustable limit switch system allows precise setting of the opening and closing limits, ensuring smooth and smooth operation of the damper.
Power and efficiency for continuous use
With a power consumption of 630W, this gearmotor can handle up to 160 cycles per day, making it perfect for both residential and commercial applications.
The motor operates at 20 RPM, ensuring fast but controlled movement, while the 14 µF capacitor ensures excellent operating stability.
Damper gear motor: robust, quality and easy to install
Robust construction and high-quality materials
The gearmotor is built with premium materials to ensure durability and reliability over time:
- Aluminum frame, lightweight yet sturdy, offering excellent protection against wear and tear
- Steel mechanics, designed to withstand prolonged stresses
- Protected electrical connections, to prevent damage and malfunction
Quick and easy installation
Designed for intuitive installation, thanks to the included adapters and cable. Compact design allows it to be easily mounted on the damper, reducing installation time and ensuring seamless integration with the existing system.
The limit switch adjustment system is bound to the gearbox, ensuring precise and stable calibration over time.
Technical Specifications Damper Gearmotor
| Feature | Value |
|---|---|
| Power supply | 230V AC |
| Frequency | 50/60 Hz |
| Power consumption | 630W |
| Current consumption | 2,7A |
| Maximum torque | 170 Nm |
| RPM | 20 RPM |
| Number of daily cycles | 160 |
| Thermal time | 4 minutes |
| Capacitor | 14 µF |
| Degree of protection | IP20 |
| Damper shaft diameter | 200/220 mm |
| Compatible tube | 60 mm diameter |
| Version | With electric brake and limit switch |
| Use | Residential and commercial |
| Damper capacity | Up to 170 kg |
| Structure | Aluminum |
| Number of turns | 10 |
| Number of revolutions limit switch | 6 |
| Thermal time | 4 min |
There are no reviews
Data sheet
- Type: Motors for roller shutters
