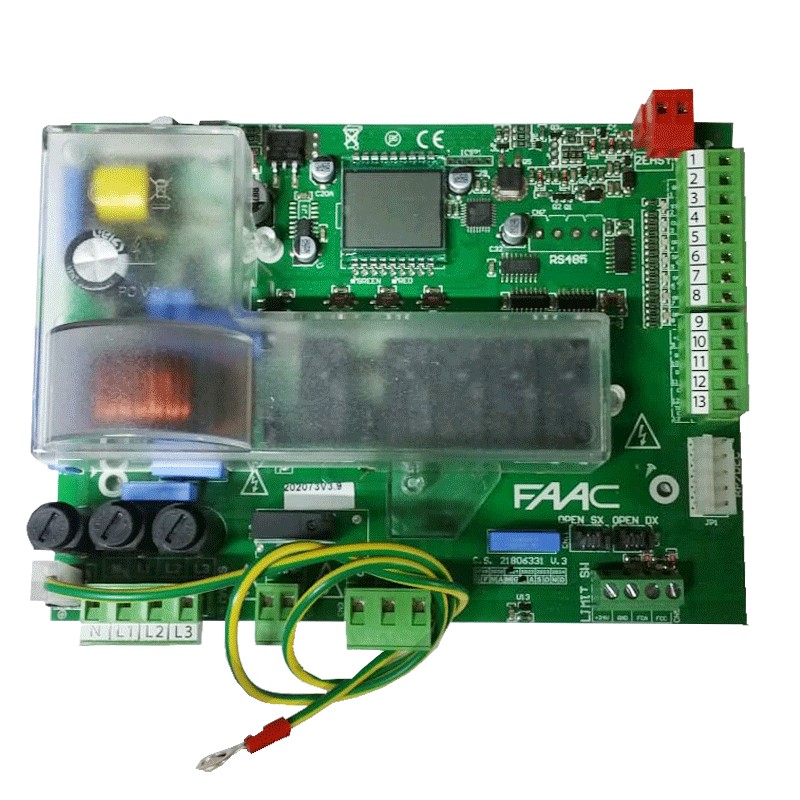

Electronic board Faac E844 3PH 400v ac 202073
FAA 202073
8055195052985
Faac E844 3PH electronic board for Faac sliding automations. Replaces the old electronic boards 884T 202254 and 844T 790862.
€470.42
Out of stock
Features:
- Mains supply voltage: 230V~ 3PH (+6% -10%) - 400V~ 3PH+N (+6% -10%)- 50 (60) Hz
- Max power 3W
- Max motor power 1500W
- Max flashing load 230 V ~ 60W max
- Operating ambient temperature -20 °C ÷ +55 °C
- Stop space with 844 R 3PH: 8 cm
- Stop space with 844 MC 3PH: 8 cm
- Programmable functions
- Logic (E, EP,A , AP, S, b, C), Pause Time, Partial Pause Time, Failsafe, Soft start, Pre-switch slowdown, Obstacle detection sensitivity by encoder, Partial opening width, Output configuration1, Output configuration2, Pre-lighting
- Terminal inputs: Open, Partial open, Opening safeties, Closing safeties, Limit switches, Priority open, Priority close
- Terminal board outputs: flashing light, motor, accessories
Max. accessory load
- 24 V 500 mA
- Bus 2easy 500 mA
There are no reviews
Data sheet
- Type: Electronic Cards
