Faac E045S 2EASY card for doors 790077
FAA 790077
8055195059540

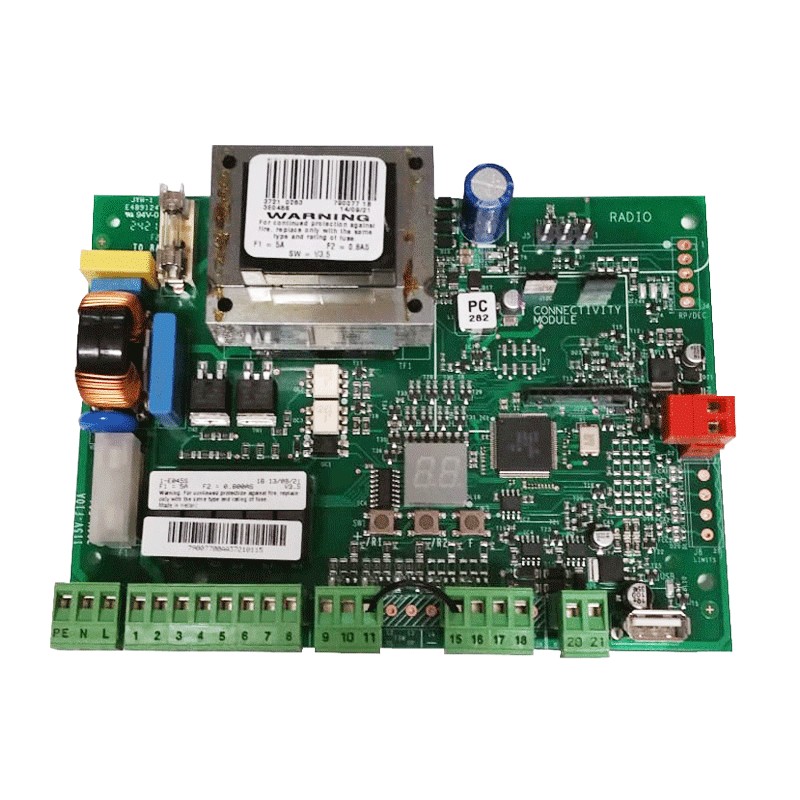

Faac E045S electronic board for swing door automations. Can control one or two operators.
€194.24
Items Available: 32
The E045S can control one or two operators.
Features:
- Mains voltage 220-240V~ 50/60 Hz
- Max power 4W Stand by W
- Max motor power 800W
- Max load accessories 500 mA 24V - 500 mA BUS 2easy
- Max electric lock load FAAC lock (12V~ - 24V)
- Programming LED display and buttons, via Simply Connect connectivity devices
- Display and LED status signalling
- Inputs on terminal board Open, Open pedestrian door, Stop (closed), BUS 2easy, Power supply + Earth
- Outputs in terminal block Blinker, Motors, 24V accessory power supply
- Quick connector XF 433/868 module for OmniDEC, USB-A and Simply Connect decoding
- Protection fuses 1 (2.5A)
- Ambient operating temperature -20°C ÷ +55°C
Data sheet
- Type: Electronic Cards
