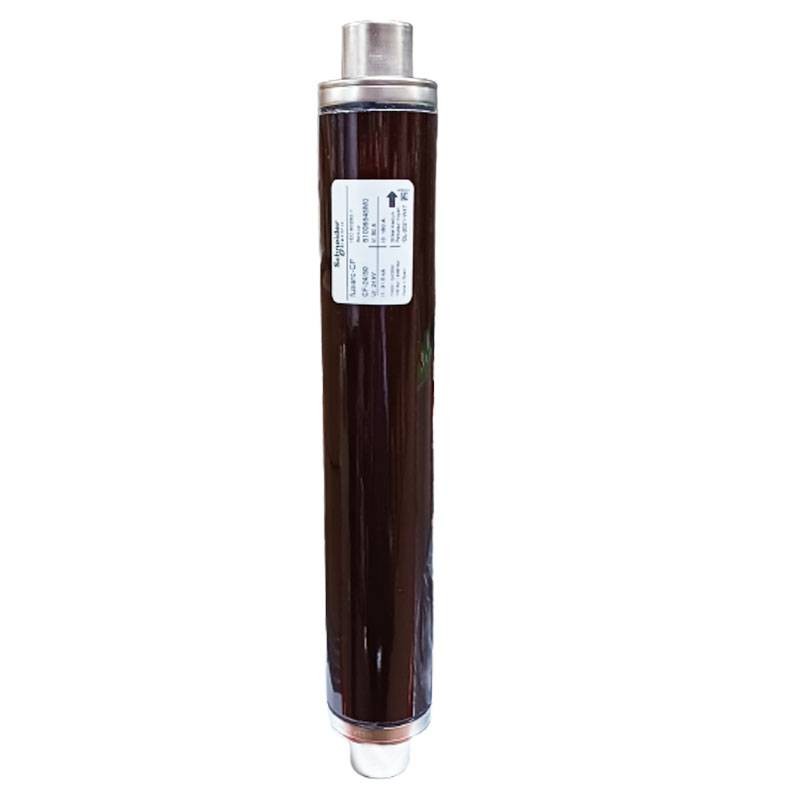

Schneider 24kV 50A Fuse 442mm Diameter 76mm SM6FUS50


SNR 51006545M0 3606481004710

Schneider fuse with the following characteristics:

  • Rated current: 50 amps
  • Dielectric test voltage: 24 kV
  • Rated operating voltage: 10...24 kV
  • Maximum discharge current: 31.5 kA
  • Braking current: 180 A
  • Average resistance: 33.6 mOhm at 20 °C +/- 10 %
  • Power dissipation in W: 136 W
  • Installation Type: Indoor/Exdoor
  • Length: 442 mm
  • Diameter: 76 mm
  • Weight: 4.5 kg
Request info about this product

Schneider 24kV 50A Fuse 442mm Diameter 76mm SM6FUS50

€102.67
€102.67

Schneider 24kV 50A Fuse 442mm Diameter 76mm SM6FUS50

€102.67
Tax included
klarna Pay in installments with Klarna
qty

Schneider 24kV 50A Fuse 442mm Diameter 76mm SM6FUS50

€102.67

Buy it within and receive it from Thursday, 13 June
Two-year warranty
Secure Payment
Easy return within 14 days

Data sheet

Diameter:
76mm
Type:
Medium voltage fuses
Voltage:
24KV
Amps:
50A
Material:
Ceramic
