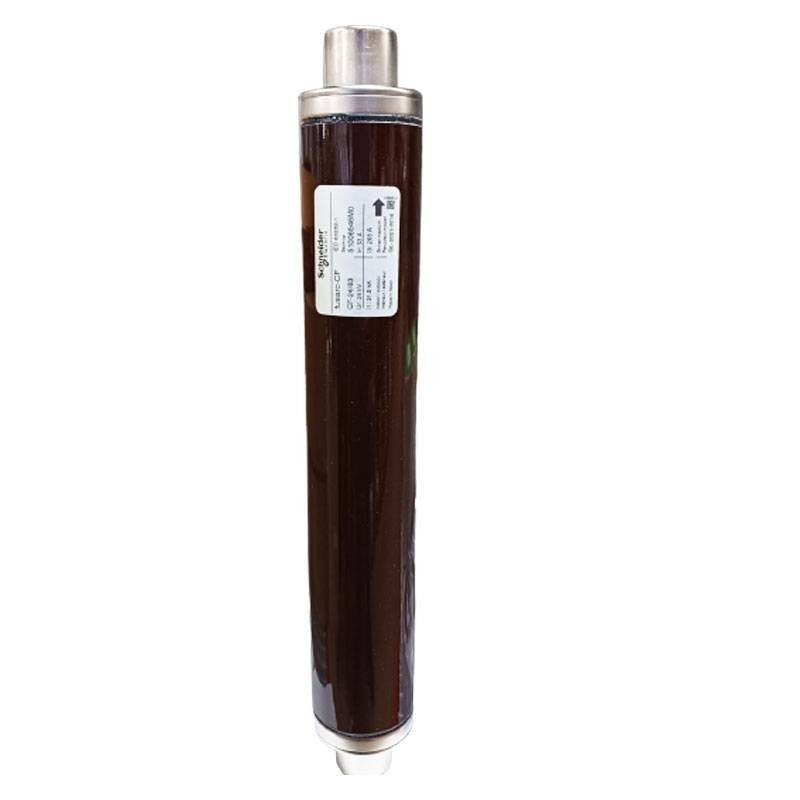

Schneider 24kV 25A fuse 442 mm diameter 50.5 mm 51006542M0
SNR 51006542M0
3606481004680
Schneider fuse with the following characteristics:
- Rated current: 25 amps
- Dielectric test voltage: 24 kV
- Rated operating voltage: 10...24 kV
- Maximum discharge current: 40 kA
- Braking current: 91 A
- Average resistance: 88 mOhm at 20 °C +/- 10 %
- Power dissipation in W: 79W
- Installation type: Indoor/Exdoor
- Length: 442 mm
- Diameter: 50.5 mm
- Weight: 1.7 kg
€84.91
Items Available: 8
: 3
There are no reviews
Data sheet
- Diameter: 50mm
- Type: Medium voltage fuses
- Voltage: 24KV
- Breaking capacity: 40KA
- Amps: 25A
- Material: Ceramic
