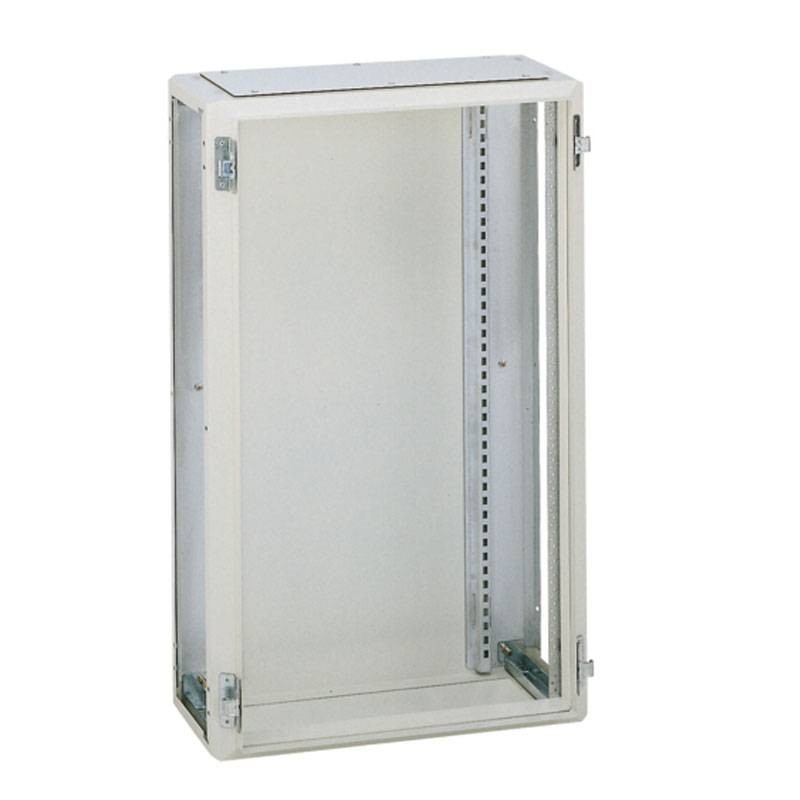

Hager Wall Mounted Panel for Quadro 5 H1100 L685 P260 IP55 FM204


HAG FM204 3250619182049

Hager wall-mounted switchboard for Quadro 5 with the following features:


  • Rated current: 630 amps
  • Quantity of rows in the enclosure: 7
  • Quantity of the section in width: 2
  • Number of flanged sides: 2
  • Removable
  • Degree of protection of the enclosure: IP55
  • Fire resistance
Request info about this product

Hager Wall Mounted Panel for Quadro 5 H1100 L685 P260 IP55 FM204

€452.69
€452.69

Hager Wall Mounted Panel for Quadro 5 H1100 L685 P260 IP55 FM204

€452.69
Tax included
klarna Pay in installments with Klarna
qty

Hager Wall Mounted Panel for Quadro 5 H1100 L685 P260 IP55 FM204

€452.69

Buy it within and receive it from Thursday, 30 May
Two-year warranty
Secure Payment
Easy return within 14 days

Hager quadro 5 IP55 switch boards and enclosures allow the installation of modular equipment and molded case circuit breakers up to 630A in all civil and tertiary environments. The range includes one-piece, modular, side-by-side and stackable switchboards and cabinets from 72 to 432 DIN modules composed of one-piece structure with open sides , closed back, cable entry plates, plinth (cabinets) to be completed with side panels and blind or transparent doors color RAL 9010. Main advantages are complete accessibility on all 4 sides, cabinets with double depth 260 and 400mm, built-in or side-by-side cable/bar compartment, real use up to 630A thanks to 400mm deep cabinets, easy and quick assembly, single kit internal system for all series, elegant and personal design. Use is suitable for short-circuit currents up to 35kA.



Features:

  • Mounting mode: Pedestal (underground mounting)
  • Suitable for lightning protection: no
  • Material thickness coverage: 2mm
  • Cover type: Blind door
  • Color: White
  • Material: steel
  • Surface treatment: powder coated
  • Suitable for outdoor use: No
  • Mounting plate included: no
  • With lock: yes
  • Depth: 260 mm
  • Height: 1110 mm
  • Width: 700 mm
  • Width in units of division: 24
  • Thickness of side wall material: 2 mm

Data sheet

Type:
Switchboards
Degree of protection:
IP55
